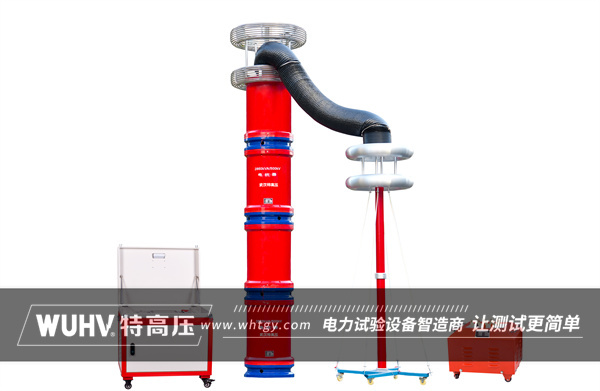

        The series resonance under Wuhan UHV can help many power workers more conveniently conduct various power tests.


     4


        Series resonance is a very important concept in electronic circuits, which involves the interaction of inductance, capacitance, and resistance in the circuit. The following is a detailed explanation of the concept and composition of series resonance:

        The concept of series resonance

        Series resonance refers to the phenomenon in which the voltage and current in a circuit reach their maximum value at a specific frequency after being connected in series by an inductor (L), capacitor (C), and resistor (R) in a certain order. This specific frequency is called the resonant frequency. At the resonant frequency, the impedances of inductance and capacitance cancel out each other, minimizing the total impedance of the circuit, resulting in an increase in current and a corresponding increase in voltage. At this point, the circuit exhibits a special property, where the energy in the circuit oscillates back and forth between the inductance and capacitance, forming resonance.

        The composition of series resonance

        The series resonant circuit mainly consists of the following parts:

        Inductance (L): An inductor is a component in a circuit used to store magnetic field energy. In a series resonant circuit, the interaction between inductance and capacitance jointly determines the resonant frequency of the circuit.

        Capacitor (C): A capacitor is a component in a circuit used to store electric field energy. It forms the core part of a resonant circuit together with an inductor, achieving resonance through interaction.

        Resistance (R): A resistor is usually connected to the output of a series resonant circuit, used to limit the magnitude of the current and consume some energy. Although resistance is not a necessary condition for resonance, it has a certain impact on the performance of the circuit.

        The characteristics of series resonance

        Resonant frequency: In a series resonant circuit, there exists a specific frequency (resonant frequency) that maximizes the voltage and current in the circuit. This frequency is determined by the values of inductance and capacitance, with the formula f=1/(2 π√ (LC)).

        Impedance minimum: At the resonant frequency, the total impedance of the circuit reaches its minimum, almost equal to the value of the resistance R (ignoring other losses in the circuit). This causes the current to reach its maximum value and the voltage to increase accordingly.

        Voltage and current in phase: In a resonant state, the voltage and current phases in the circuit are the same, and the circuit exhibits resistance.

        Quality factor: The quality factor Q of a series resonant circuit is an important parameter for measuring the resonant performance of the circuit. It represents the ratio of the energy stored in the circuit during resonance to the energy lost per cycle. The higher the Q value, the better the resonance performance of the circuit.

        application area

        Series resonant circuits are widely used in electronic circuits, such as resonant circuits (used to conduct circuits at specific frequencies, such as radio tuning circuits), oscillation circuits (able to generate continuous sine wave signals, such as radio frequency generators), and filtering circuits (by controlling the resonant frequency of the circuit, signals at specific frequencies pass through while signals at other frequencies are filtered out, such as antenna preamplifiers).

        In summary, series resonance is an important concept in electronic circuits, which involves the interaction of inductance, capacitance, and resistance in the circuit. By adjusting the component parameters in the circuit, specific resonance effects can be achieved and play an important role in practical applications.
