Type | Measuring range | unit | error | The resolution of the |
Voltage | 1～500 | V | 0.5%×range | 0.01V |
Current | 0.001～10 | A | 0.5%×range | 0.0001A |
Active power | 0.001～5000 | W | 0.5%×Reading (PF = 1) | 0.1W |
Reactive power | 0.001～5000 | VAR | 0.5%×Reading (PF = 0) | 0.1VAR |
Apparent power | 0.001～5000 | VA | 0.5%×reading | 0.1VA |
Frequency | 45～65 | Hz | 0.1%×reading | 0.01Hz |
Phase | 0～360 | ° | ±2° | 0.1° |

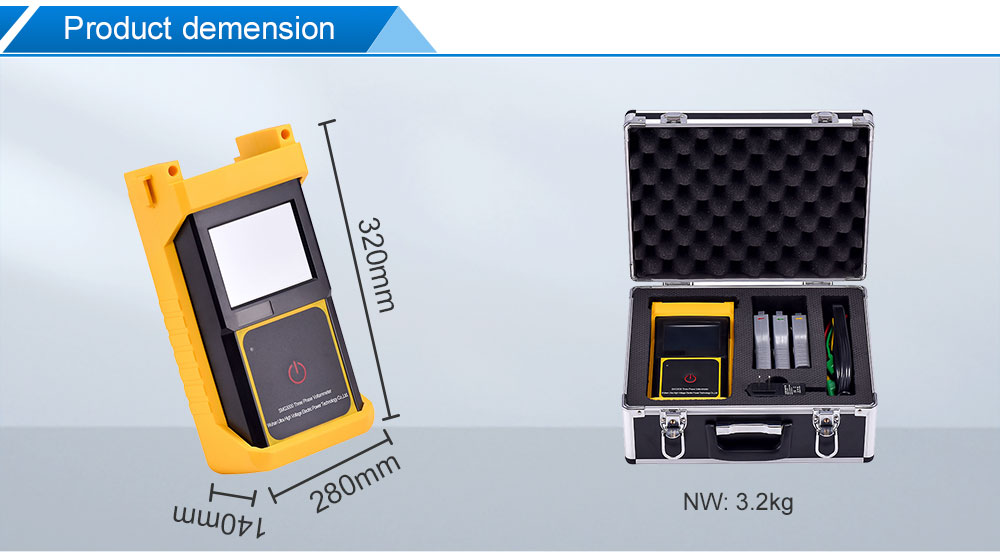

Dimensions | 320*280*140mm3 | |||
Weight | 3.2kg | |||
Nickname：Phase Voltammeter，Phase tester，Portable Phase voltammeter，Handheld Phase voltammeter
Feature:
1 Measure three-phase voltages and four lines of current (includes zero line current) at the same time;
2 Measure the three-phase ac voltage phase angle, current phase angle and power phase angle at the same time;
3 Measure power grid frequency and phase sequence;
4 Discriminate transformer winding, recognize, capacitive load and perceptual load automatically
5 Show hexagon vector diagram; do color sequence analysis;
6 Measure active power, reactive power, apparent power, three-phase power and power factor;
7 Data storage and view function;
8 Data static storage function;

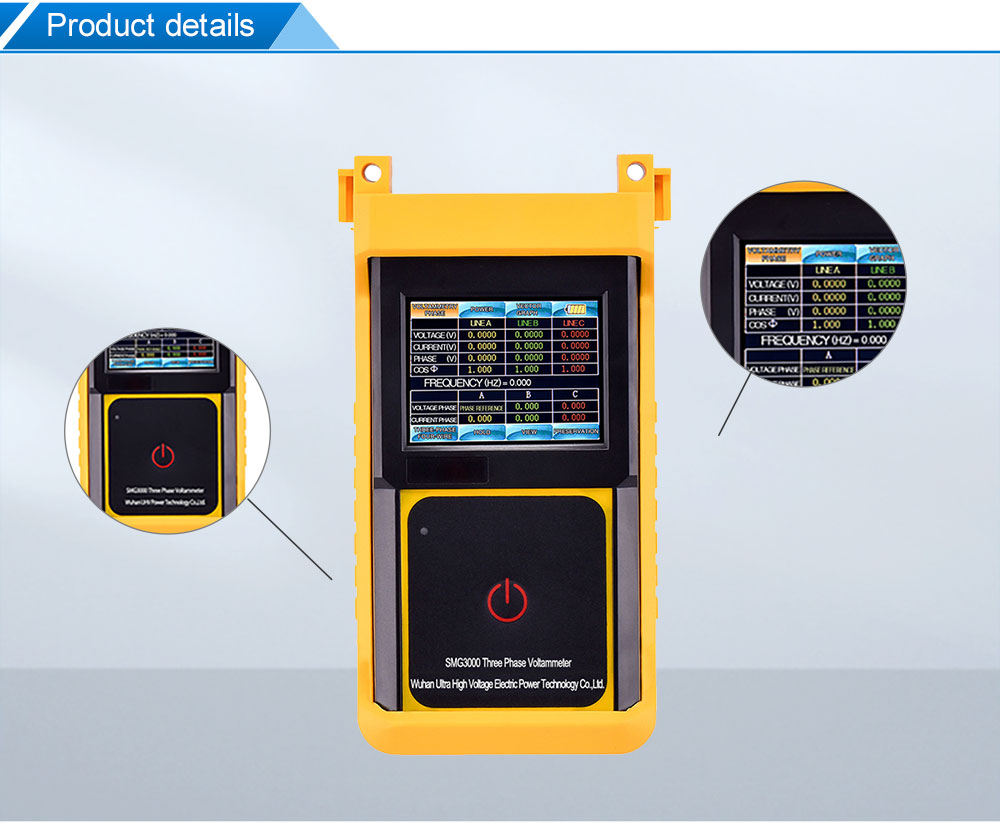

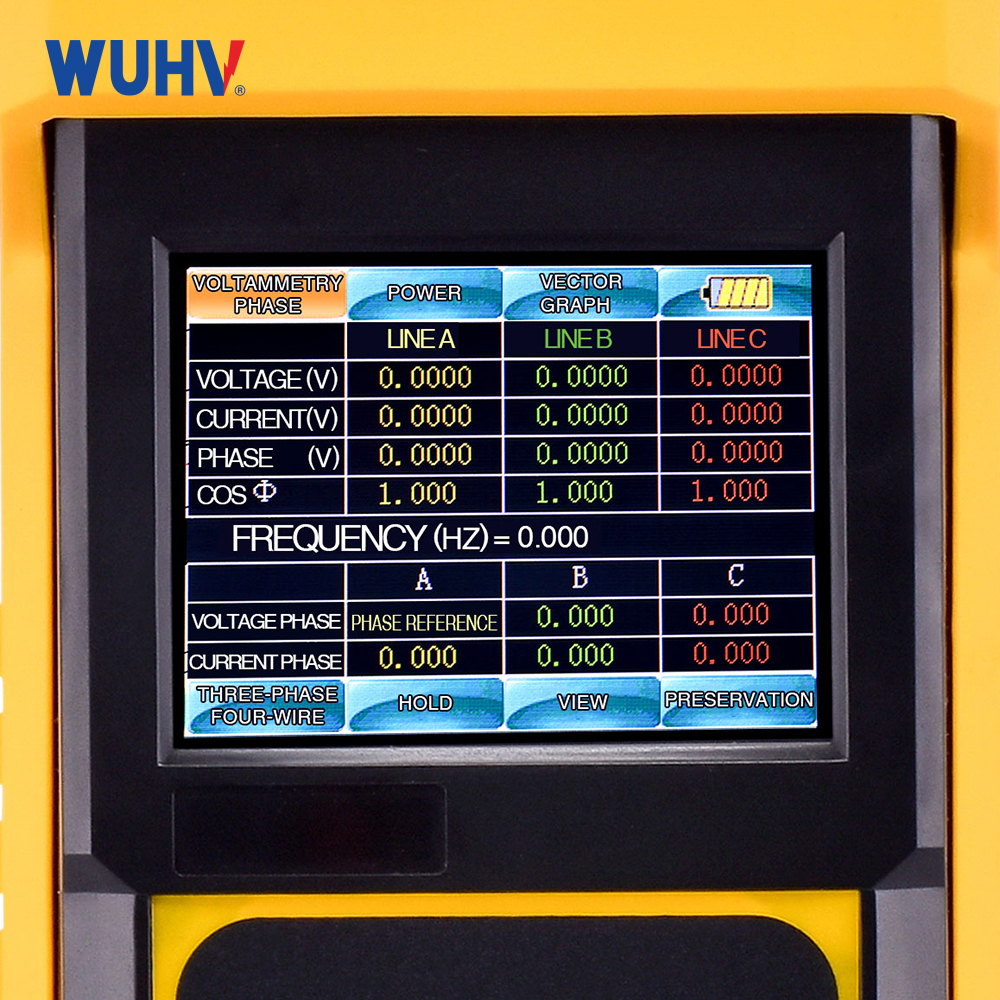

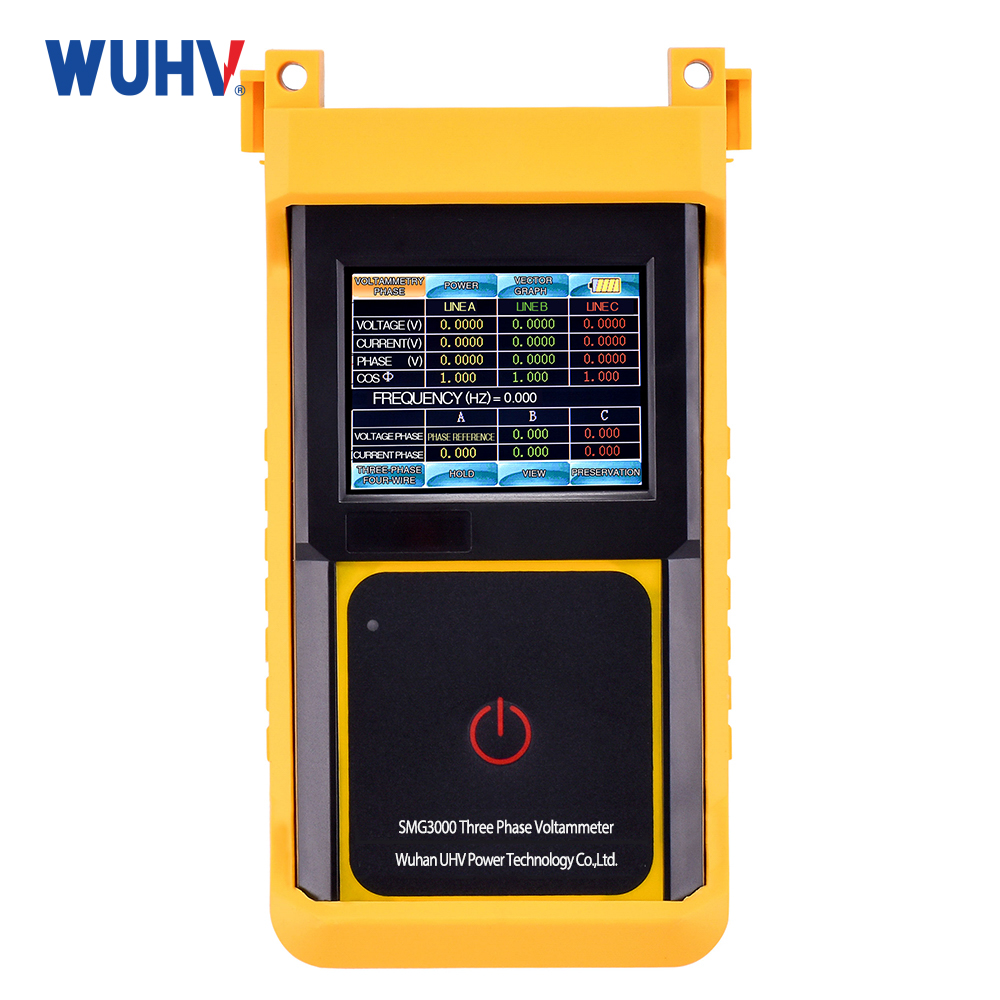

9 3.5 inch TFT color display with finger touch function;
10 Lithium battery power supply, rechargeable continuous standby for more than 20 hours
