Measuring voltage range (special voltage can be customized) | 0 ~ 40kV (special voltage can be customized)
|
Measurement error | ≤±1% |
Resolution | 0.01kV |
Sampling rate | 10 times/second |
Operating current | ≤120mA (handheld), ≤40mA (detector) |
Power Source | 2 1.5V No.5 dry batteries (handheld) |
2 1.5V No. 7 dry batteries (Detector) | |
Sustainable working hours | ≥12 hours |
Visual distance transmission distance of detector and handheld machine | ≤100m (sufficient power supply) |

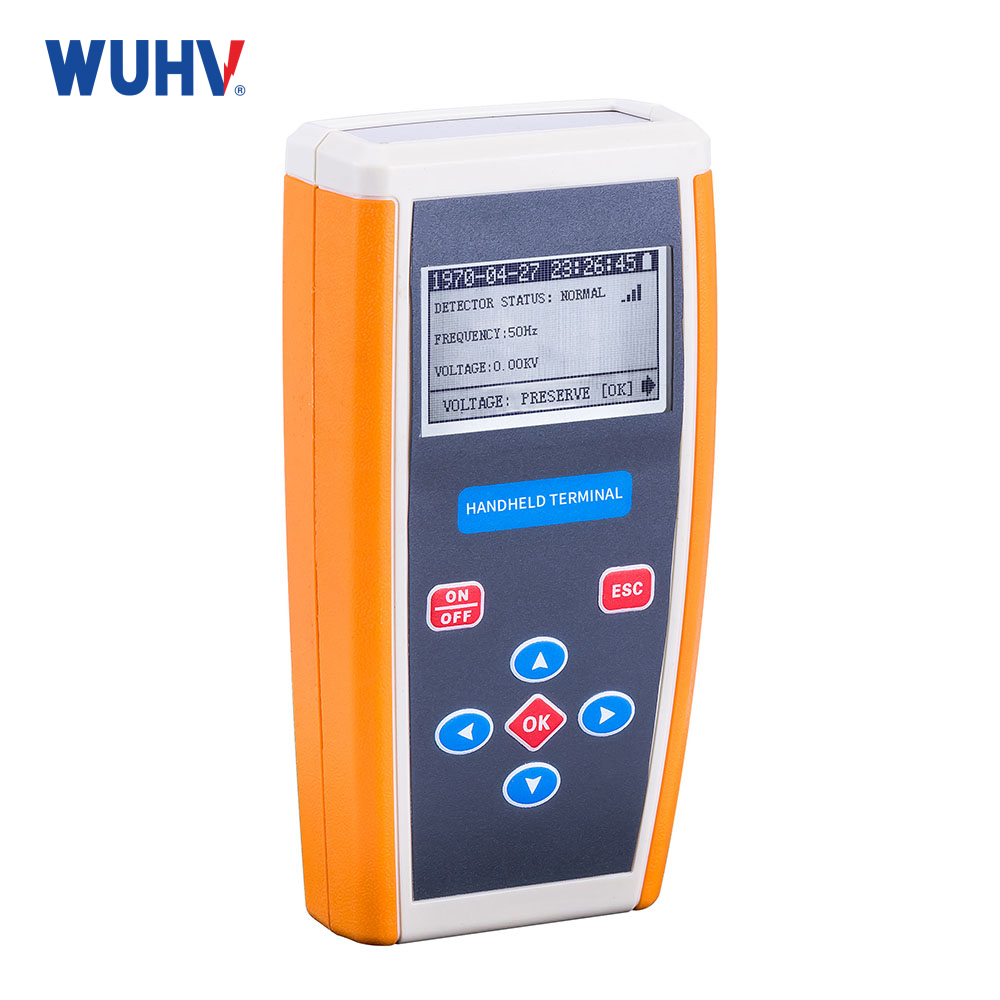

Display | positive LCD screen, can be clearly displayed in the sunlight |
Operating temperature | -35℃ ~ +60℃ |
Storage temperature | -40℃ ~ +65℃ |
Relative humidity | ≤90%RH no condensation |
Nickname：Insulator Voltage Distribution Detector，Voltage Distribution Detector
Feature:
1, operating voltage: 0 ~ 1000kV, different voltage levels are applicable
2. Date and time setting: Adjust the date and time for users to browse and view historical data
3, backlight time setting: steady on, off, 0 ~ 999 minutes can be set
4, automatic shutdown Settings: never, 0 ~ 999 minutes can be set by itself
5, the transmission distance between the handheld machine and the detector is less than 100m
6. Multi-mode design, stronger applicability, safer and more convenient
7, universal joint design, according to the suspension position of the insulator string, flexible adjustment of the measurement direction
8, double shielding, strong anti-interference, fully in line with EMC standards

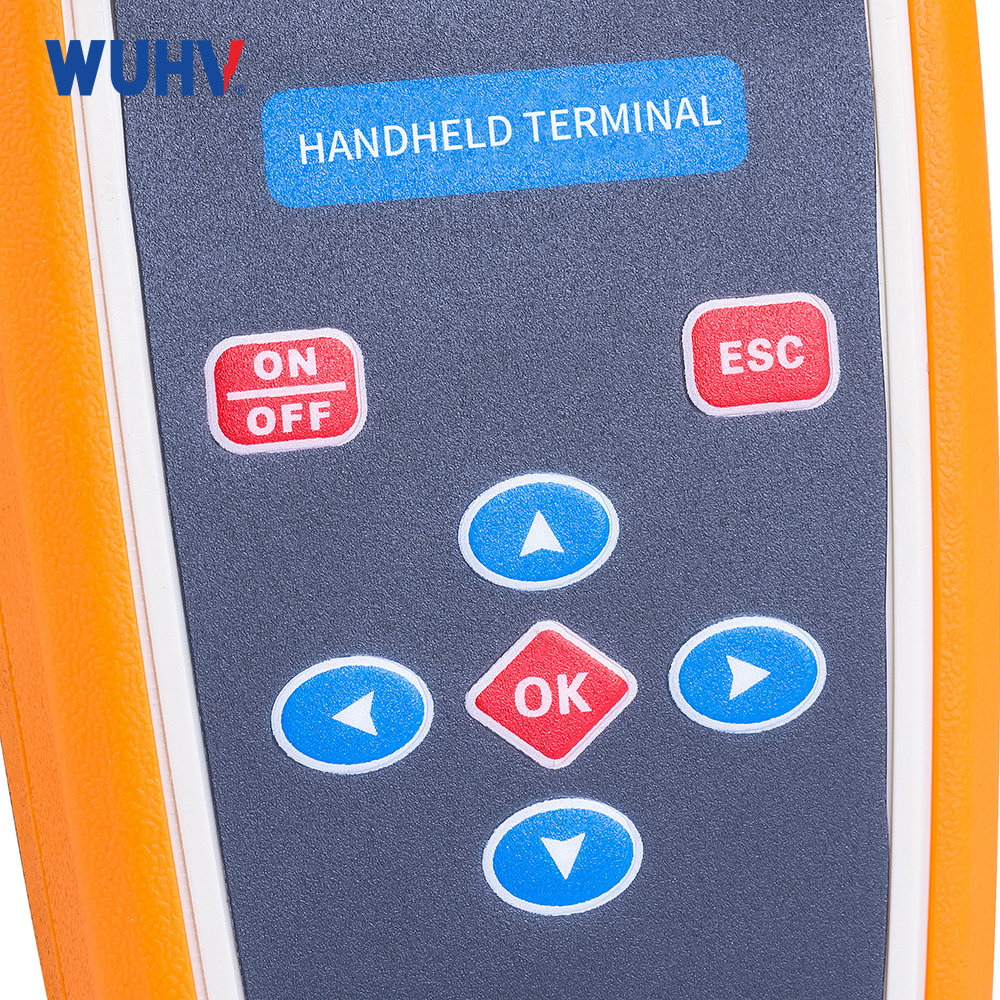

9. Unique man-machine interaction interface, easy to operate
