Technical Parameters
Reference voltage input range (peak) | 10V ~ 200V, can be customized (0-250V) |
Full leakage current Measuring range | 100uA ~ 8mA, can be customized (0-20mA) |
Resistive current Measuring range | 100uA ~ 8mA, can be customized (0-20mA) |
Capacitive current Measuring range | 100uA ~ 8mA, can be customized (0-20mA) |
Angle Measuring range | 0°～90° |
Power consumption | 4W |
System measurement accuracy | ± (reading × 5% + 5 words) (harmonic current is not more than 2 mA) |
AC power supply | AC220V ±10%，50Hz ±1% |

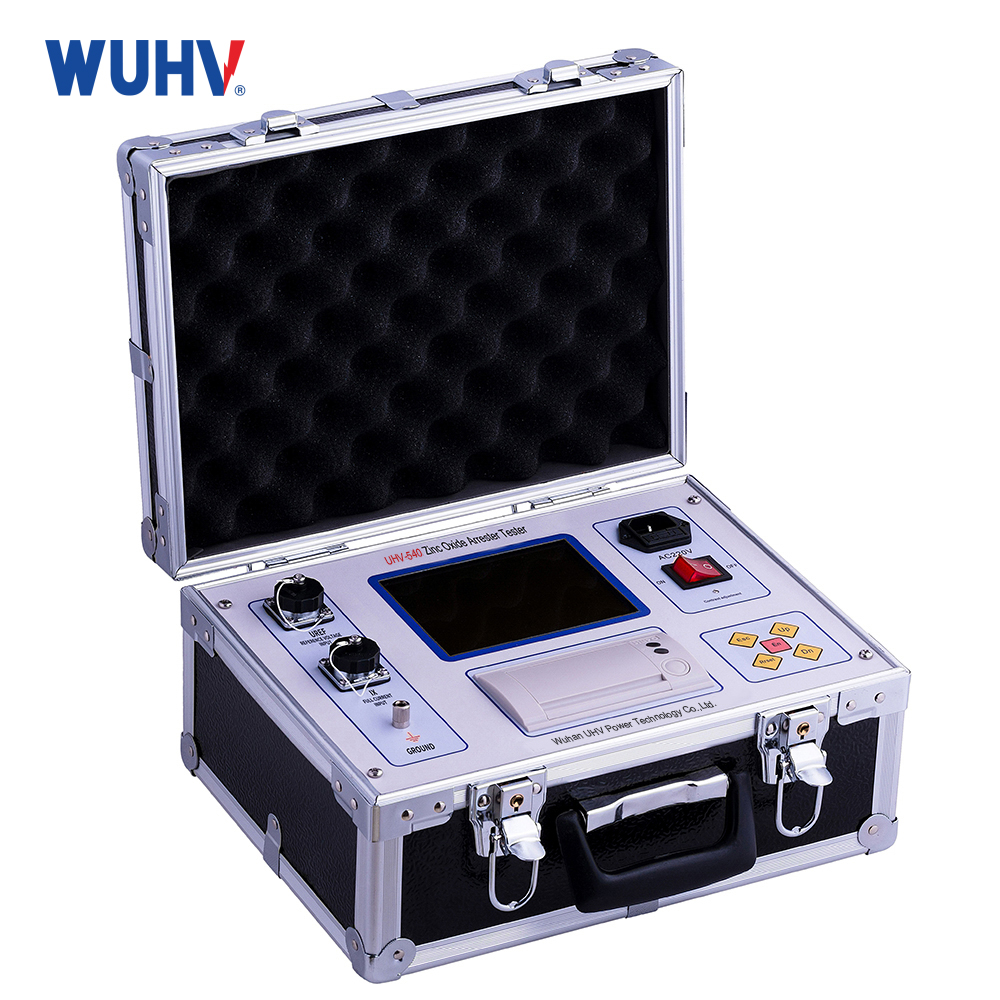

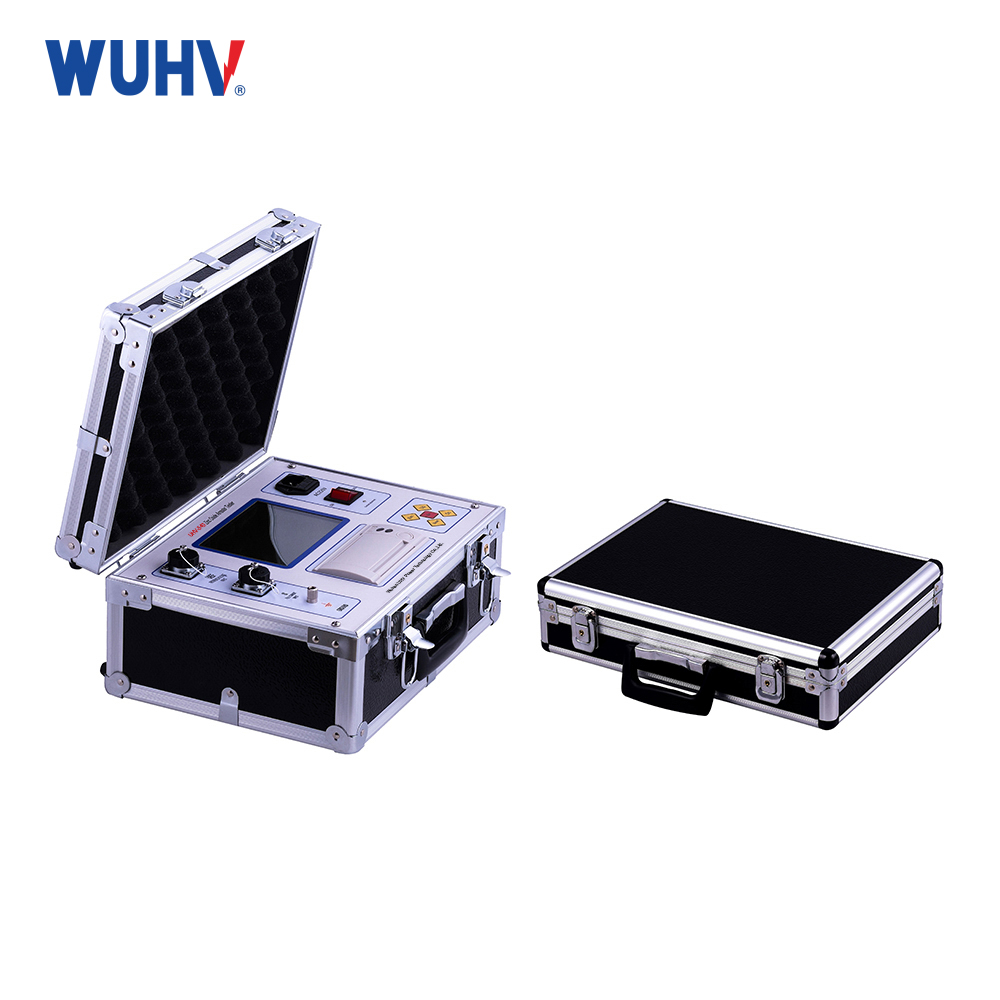

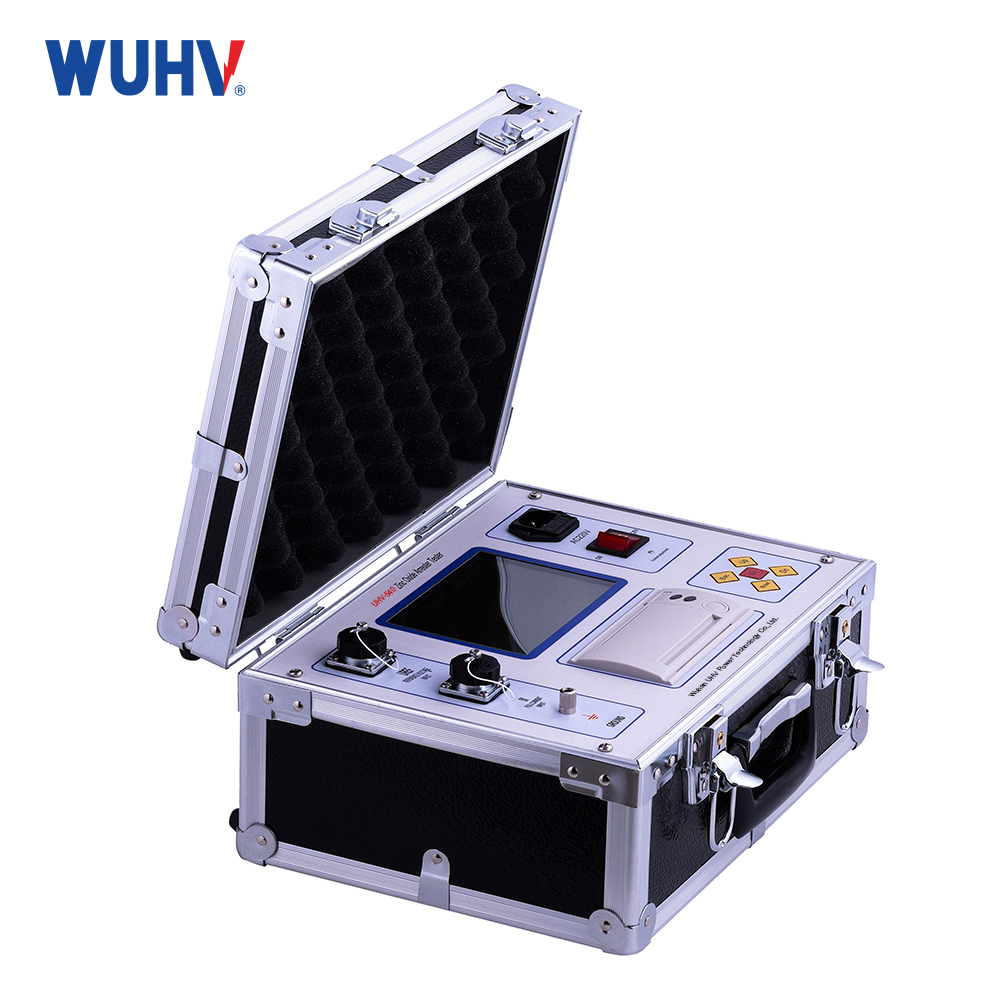

Nickname：Zinc Oxide Arrester Tester，lightning arrester leakage current tester，lightning arrester tester

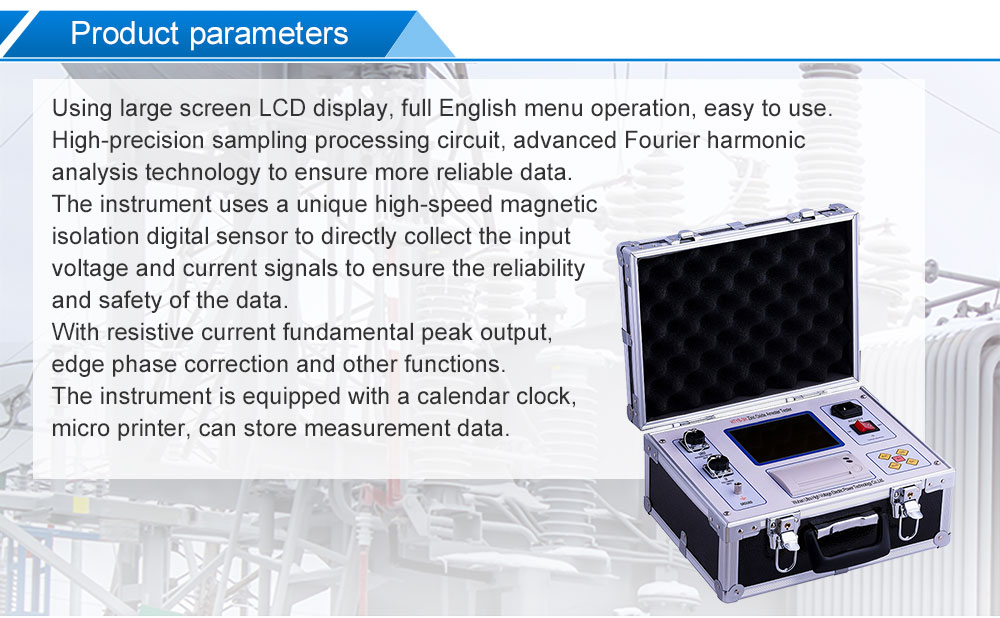

Feature:
· 1, using large screen LCD display, full Chinese menu operation, easy to use.
· 2, high-precision sampling processing circuit, advanced Fourier harmonic analysis technology to ensure more reliable data.
· 3. The instrument uses a unique high-speed magnetic isolation digital sensor to directly collect the input voltage and current signals to ensure the reliability and safety of the data.
· 4, with resistive current fundamental peak output, edge phase correction and other functions.
· 5, the instrument is equipped with a calendar clock, micro printer, can store measurement data.
