Measurement range | Capacitance:2uF~2000uF |
Inductance:5mH~5000mH | |
Current:20mA~2000mA | |
Measurement accuracy | Capacitance:± (1% reading + 2 words) |
Inductance:± (1% reading + 5 words) | |
Current:± (1% reading + 2 words) | |
Dimensions | 345mm×295mm×175mm |
Instrument weight | 7kg |
Ambient temperature | -10℃~50℃ |
Ambient humidity | ≤85%RH |
Working power supply | AC220V±10% |
Power frequency | 50±1Hz |
Nickname: Capacitance Inductance Tester; Capacitance Inductance
Features
1.The instrument can measure the single capacitance of a group of parallel capacitors without disconnecting the wire. It is convenient to test. While displaying the measured capacitance value, it can also display the measured voltage, current, loss, capacity, frequency, impedance and other data;
l2.The instrument can display the measured voltage, current, loss, capacity, frequency, impedance and other data while displaying the measured inductance value;
l3.The instrument can also display the current frequency and other data while displaying the measured current value;
l4.In addition to measuring group capacitors, the instrument can also measure △-type and Y-type capacitors, etc.;

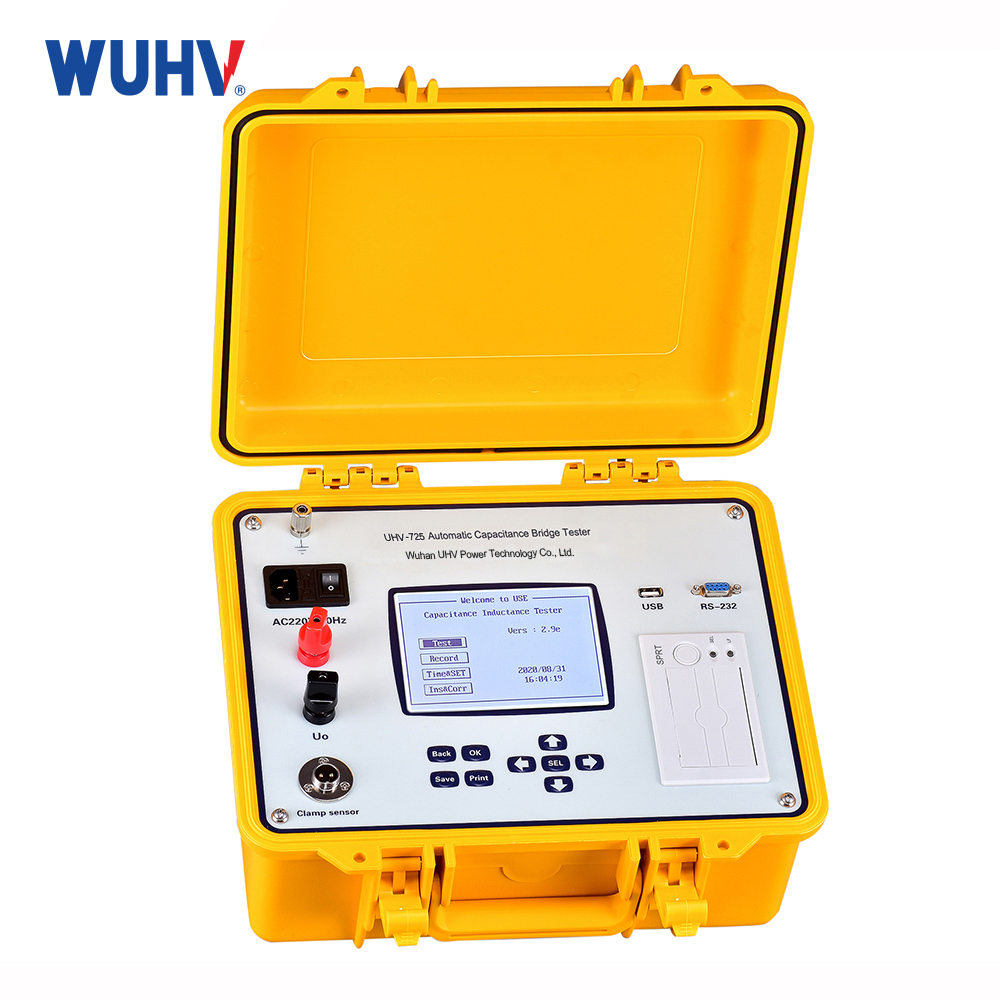

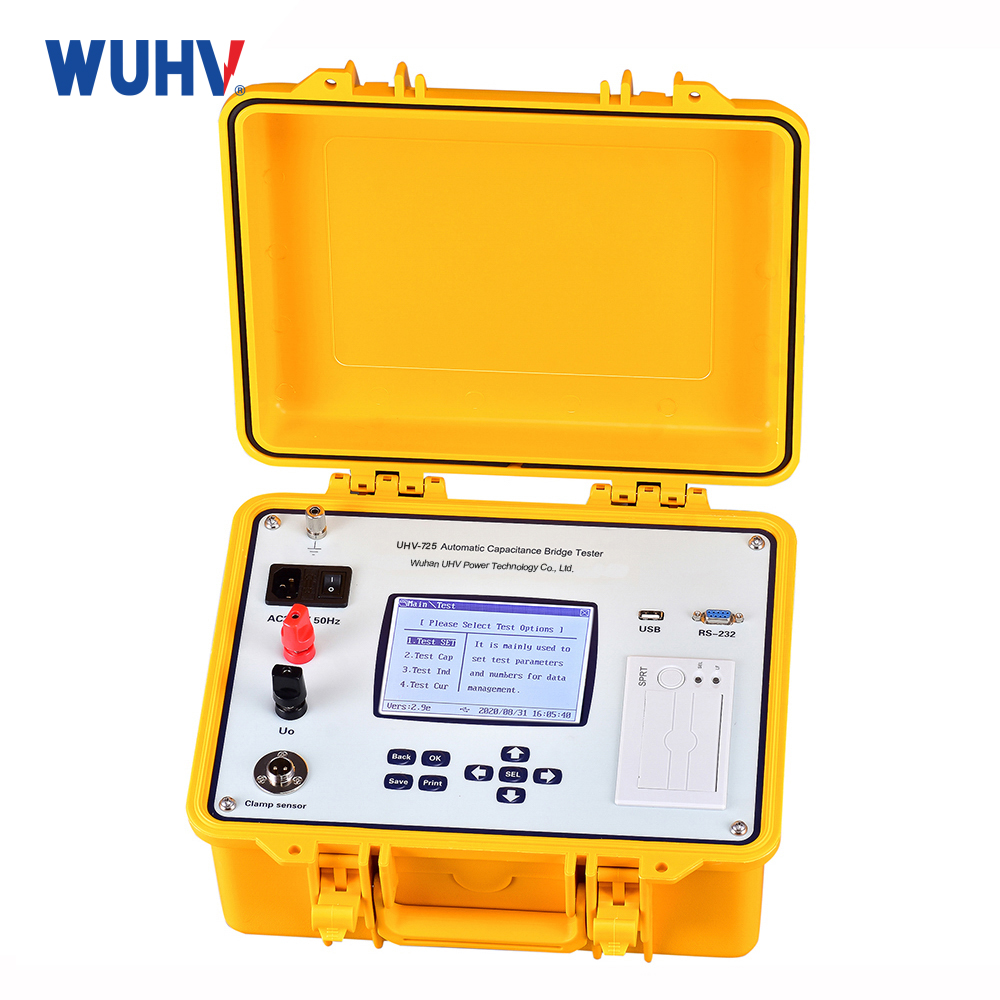

l5.The instrument adopts 320×240 large screen LCD display, Chinese menu prompt, easy to operate;
l6.Built-in large-capacity non-volatile memory: each test option can store 256 sets of data;
l7.Built-in USB interface of the instrument: it can export the memory data of the instrument to facilitate the generation of reports;
l8.The instrument has a built-in high-precision real-time clock function: it can perform date and time calibration;
l9.The instrument comes with a high-speed micro thermal printer: can print measurement and historical data;
l10.Overcurrent protection function of instrument test power supply: short circuit of test power supply output will not damage the instrument
