Name | Specifications |

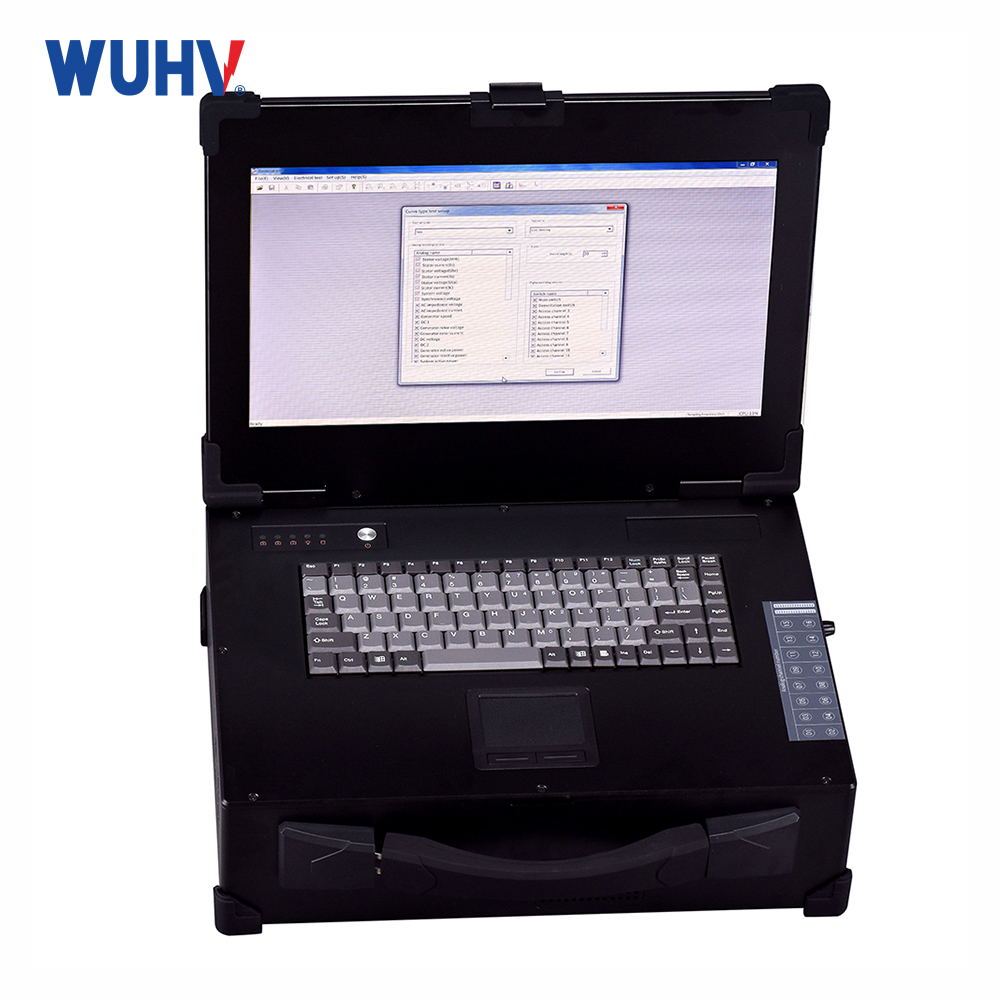

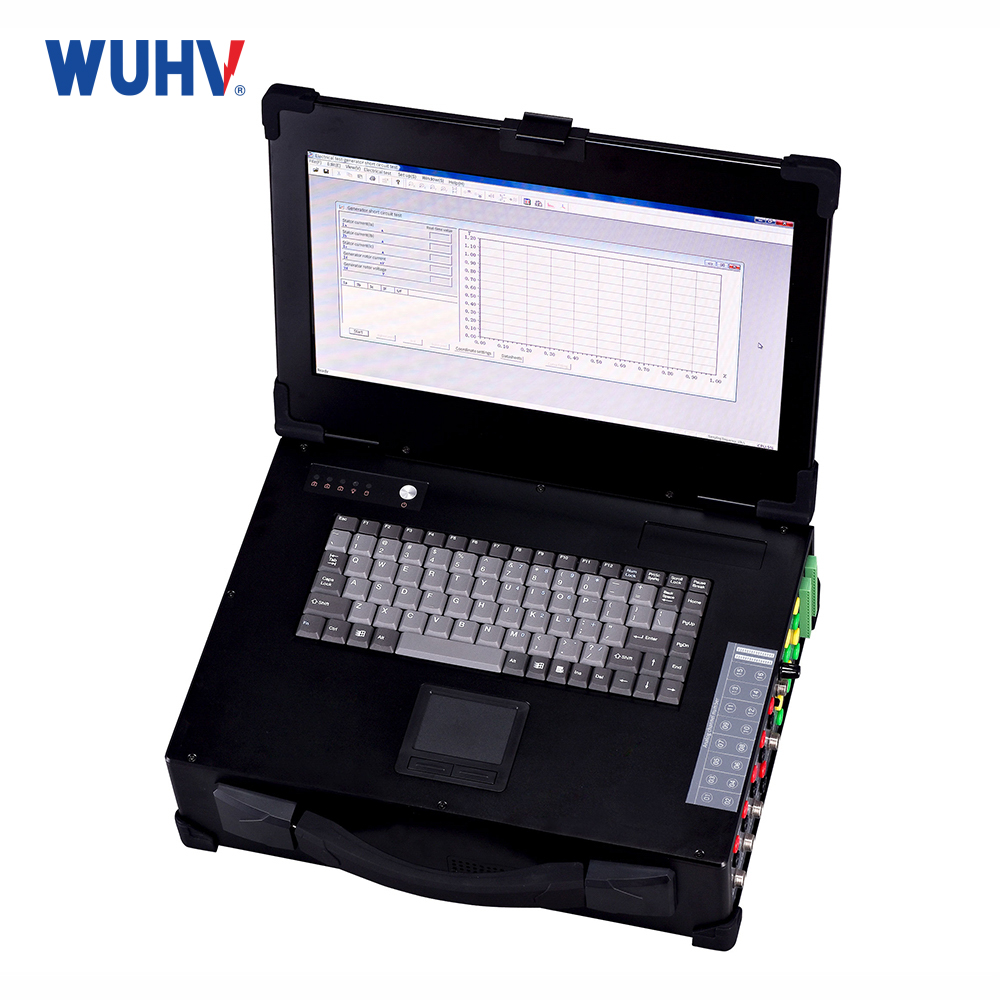

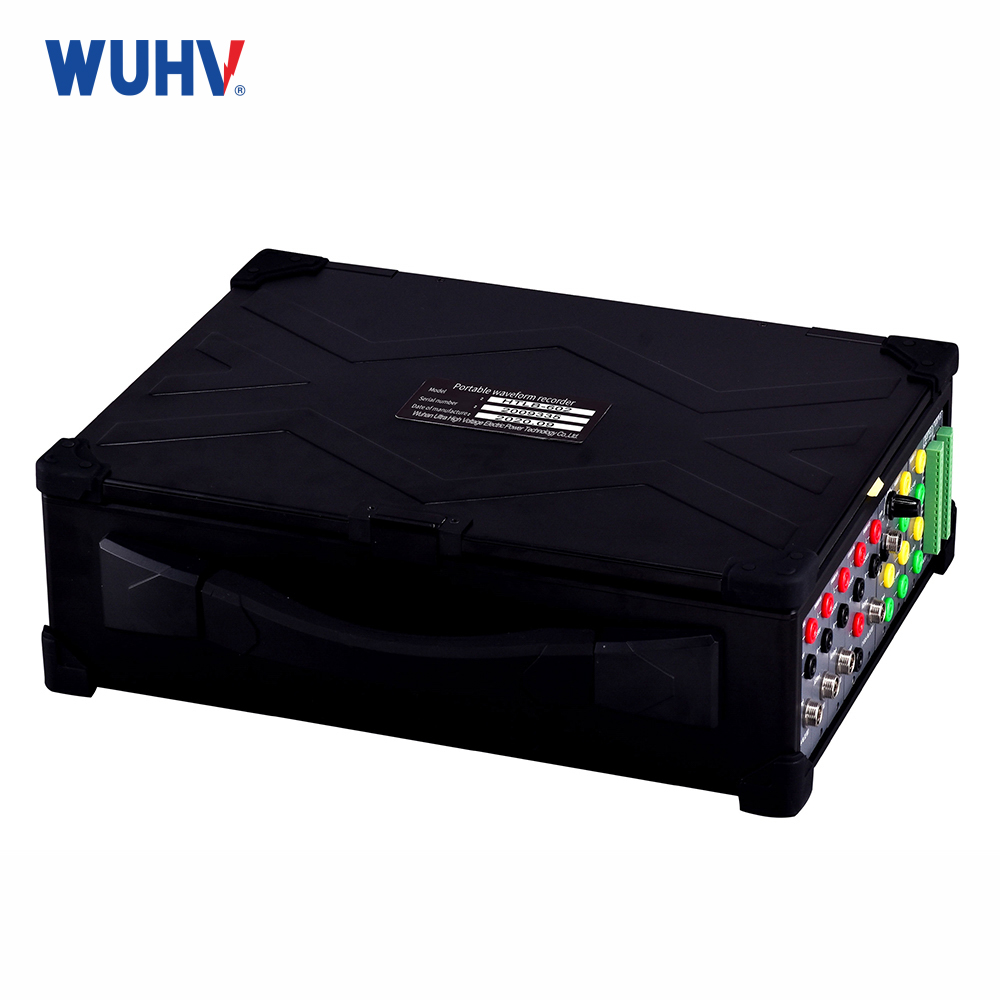

Machine box | Portable industrial control case |
Operation system | Embedded WES7 |
Display | 15.6 LCD display, resolution :1366*768 |
Storage | 120GB SSD |
Interface | 1 LAN port ,2 USB |
Keyboard, mouse | 88-key keyboard, touchpad |
Power supply | AC85-260V 50Hz±0.5Hz , DC110-370V |
Machine box size (l×w×h) | 407*307*150(mm) |
Weight | 10kg |
Features
1. Fault recorder: It can monitor the working parameters of the connected equipment and complete the data recording and fault data analysis when the fault occurs.

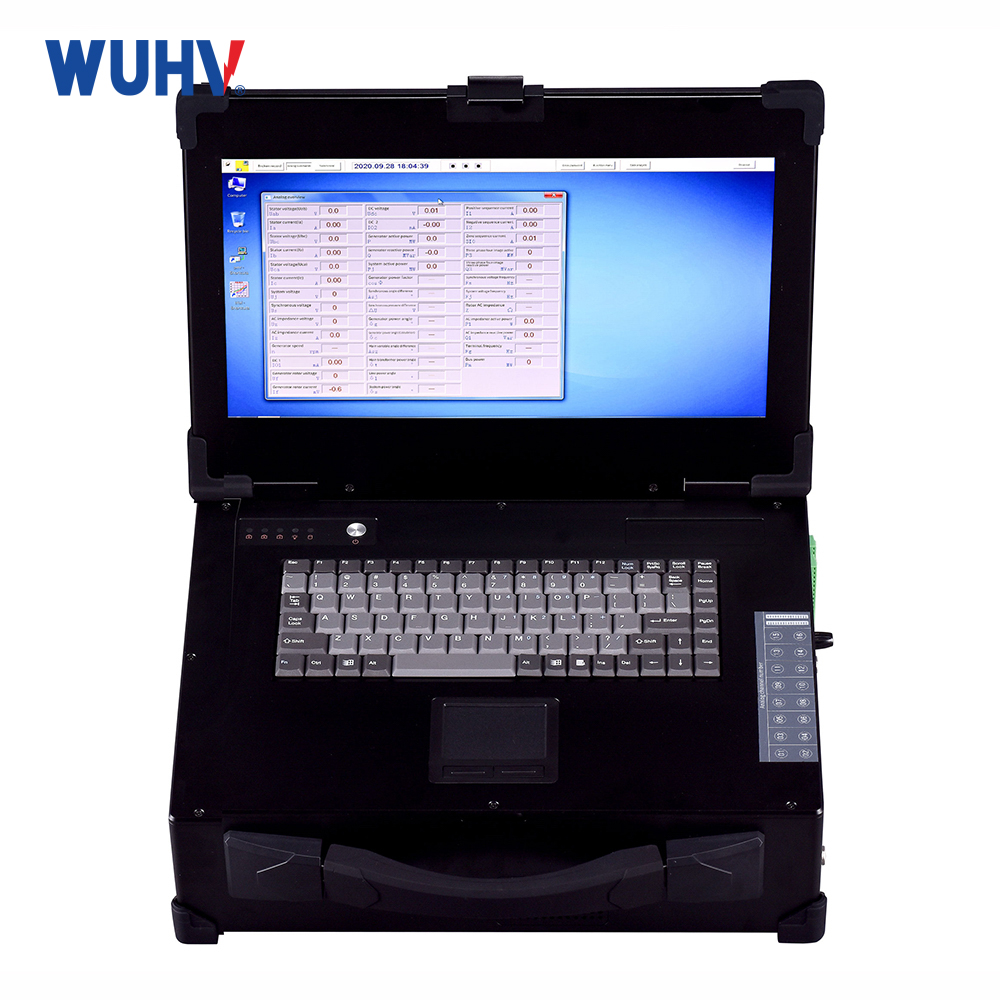

2. Real-time monitoring: the device can realize the real-time monitoring and display function of analog quantity and switch quantity
3. Calculation volume: active power, reactive power, frequency, positive sequence, negative sequence, zero sequence, vector sum (difference) and phase angle, etc., and the generated calculation volume is displayed in real time
4. The electrical test of the general start-up of the generator: the generator characteristic test can be completed, including the generator no-load test, generator short-circuit test, main excitation no-load, load test, etc.; excitation test, including zero-start boost test and de-excitation test , 10% step test, etc.; concurrent test; other tests required by users
5. This instrument can be used for online monitoring of key equipment in power systems or other industries; it can also be used as a portable instrument to monitor and analyze the faults of various industrial equipment; or use its data processing and calculation capabilities as a data source. Provide real-time data to other systems
