  • UHV-800 Grounding Grid Resistance Tester Meter

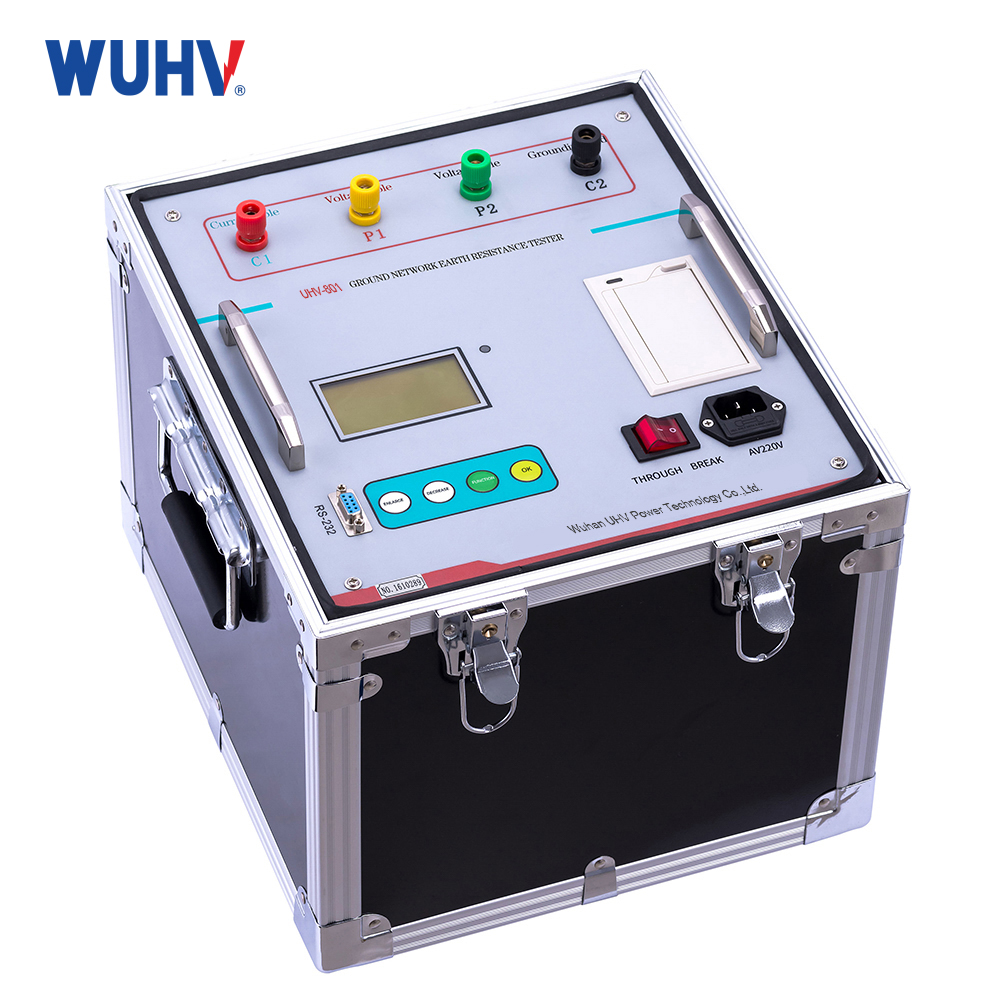

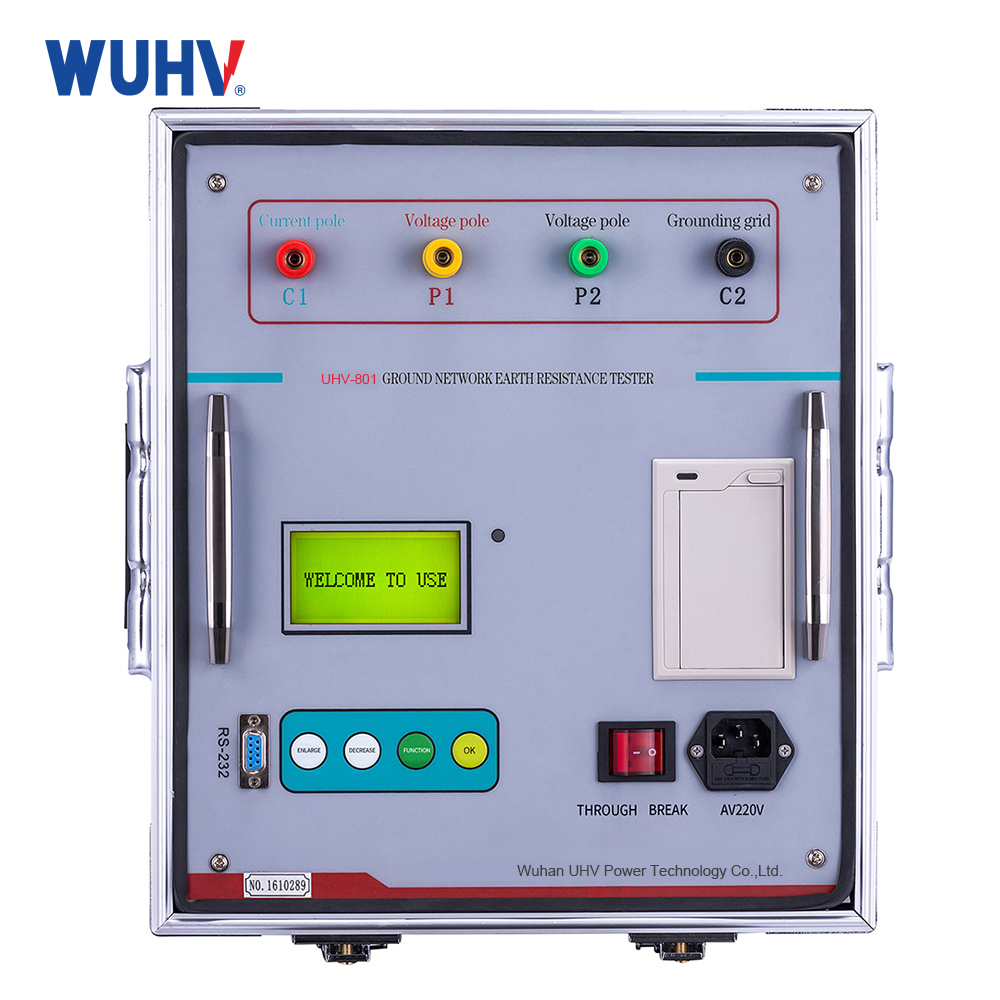

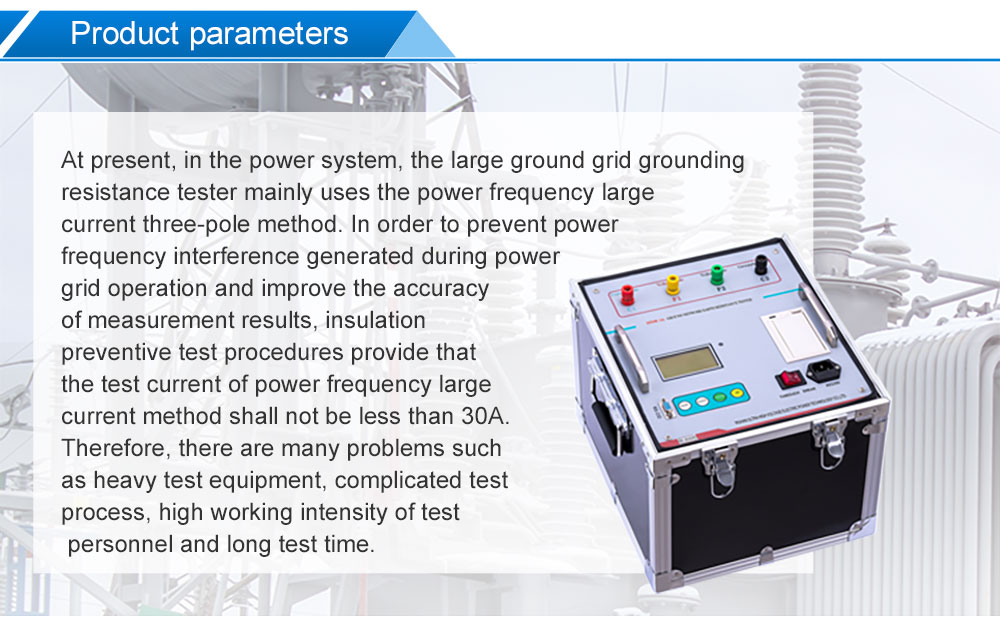

    UHV-800 Large grounding grid grounding resistance tester is a specialized instrument for measuring the grounding resistance of the earth grid and the grounding continuity between the grounding point. It adopts different frequency anti-interference technology, which can accurately measure data at power frequency of 50Hz under strong interference environment.

    Product Details of UHV-800 Grounding Grid Resistance Tester Meter

    Grounding Grid Resistance Tester

    measurement range

    0~200Ω(including the current pile impedance)

    resolution

    0.001Ω

    measurement error

    ±(readings×1%+0.005Ω)

    maximum output voltage

    AC 400V (45Hz, 55Hz, dual-frequency, sine wave)

    maximum output current

    AC 5A(45Hz, 55Hz, dual-frequency, sine wave)

    Output gear

    5 / 4.5/4/3.5/3/2.5/2/1.5/1a, every 0.5A, 9 gears in total

    anti-interference ability

    anti-power frequency 50Hz voltage 10V

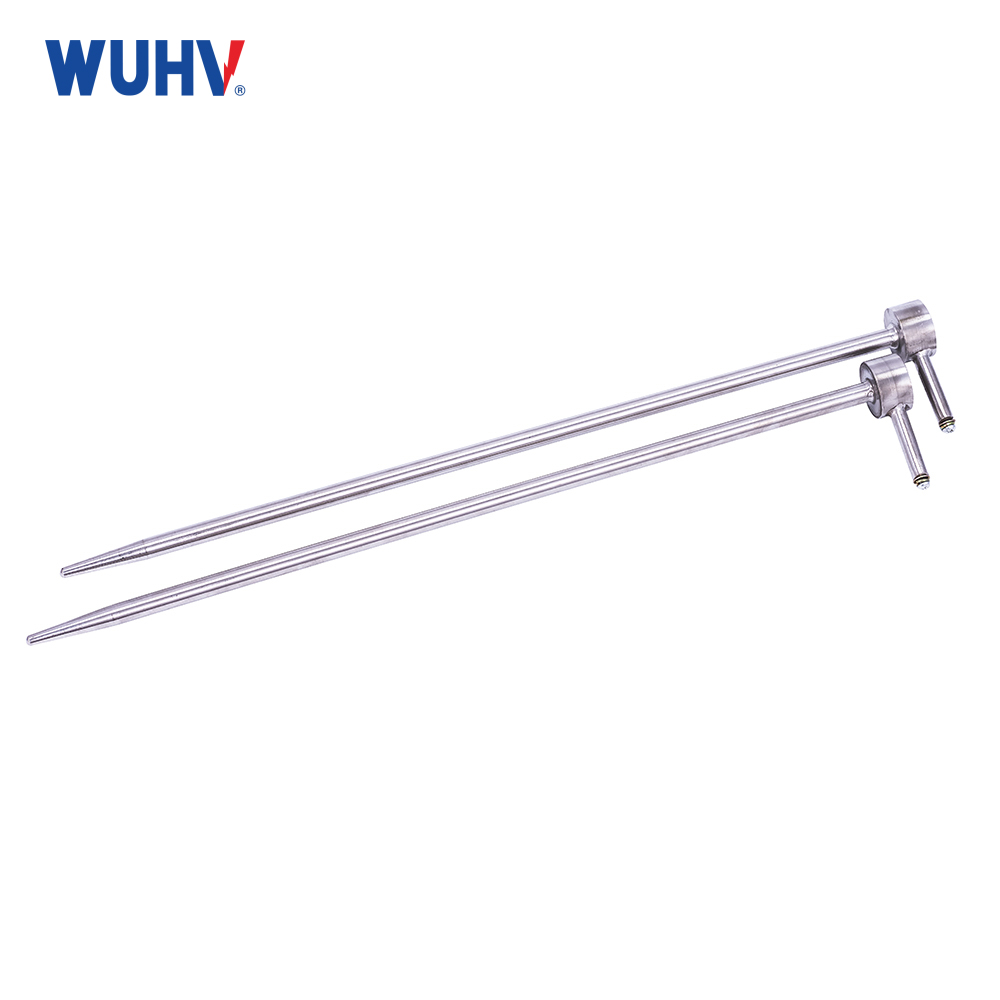

    measurement line requirements

    Section area of copper core of current wire ≥ 1.5mm2

    Sectional area of copper core of voltage line ≥ 1.0mm2

    power supply

    AC220V±10%,50Hz

    External dimension

    295×340×310mm3

    instrument weight

    30kg



    Nickname: Grounding Grid Resistance Tester; Grounding Resistance Meter

    Features

    1. The measured power frequency has good equivalence. The test current waveform is a sine wave with a frequency difference of only 5 Hz from the power frequency. Two frequencies of 45 Hz and 55 Hz are used for measurement.

    2. Strong anti-interference ability. The large-scale ground network grounding resistance tester adopts the different frequency method for measurement, combined with modern software and hardware filtering technology, which makes the instrument have high anti-interference performance and stable and reliable test data.

    3. High precision. The basic error is only 0.005Ω, which can be used to measure the ground network with a small grounding impedance.

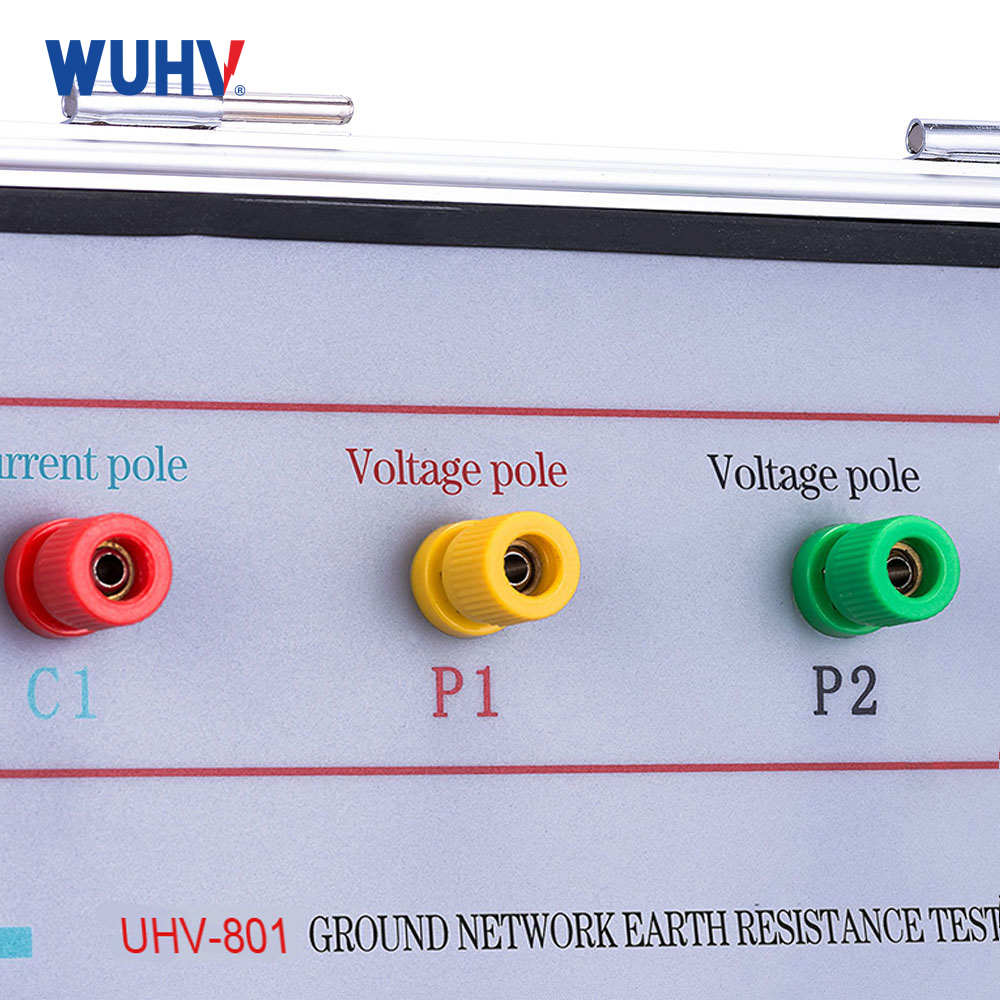

    4. Powerful. It can measure current pile, voltage pile, grounding resistance, step voltage, and contact voltage.

    5. Simple operation. All Chinese menu operation directly displays the measurement results.

    6. The wiring labor is small, and no large current wire is needed.
