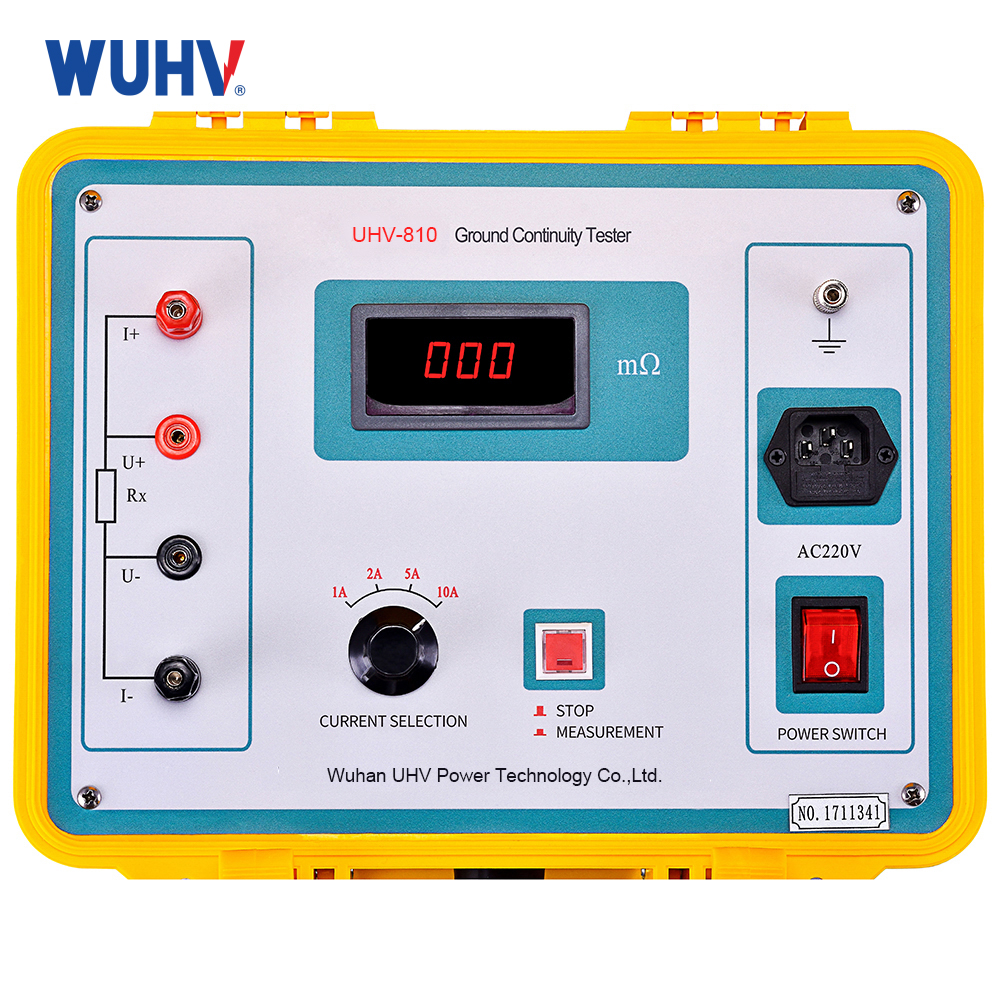

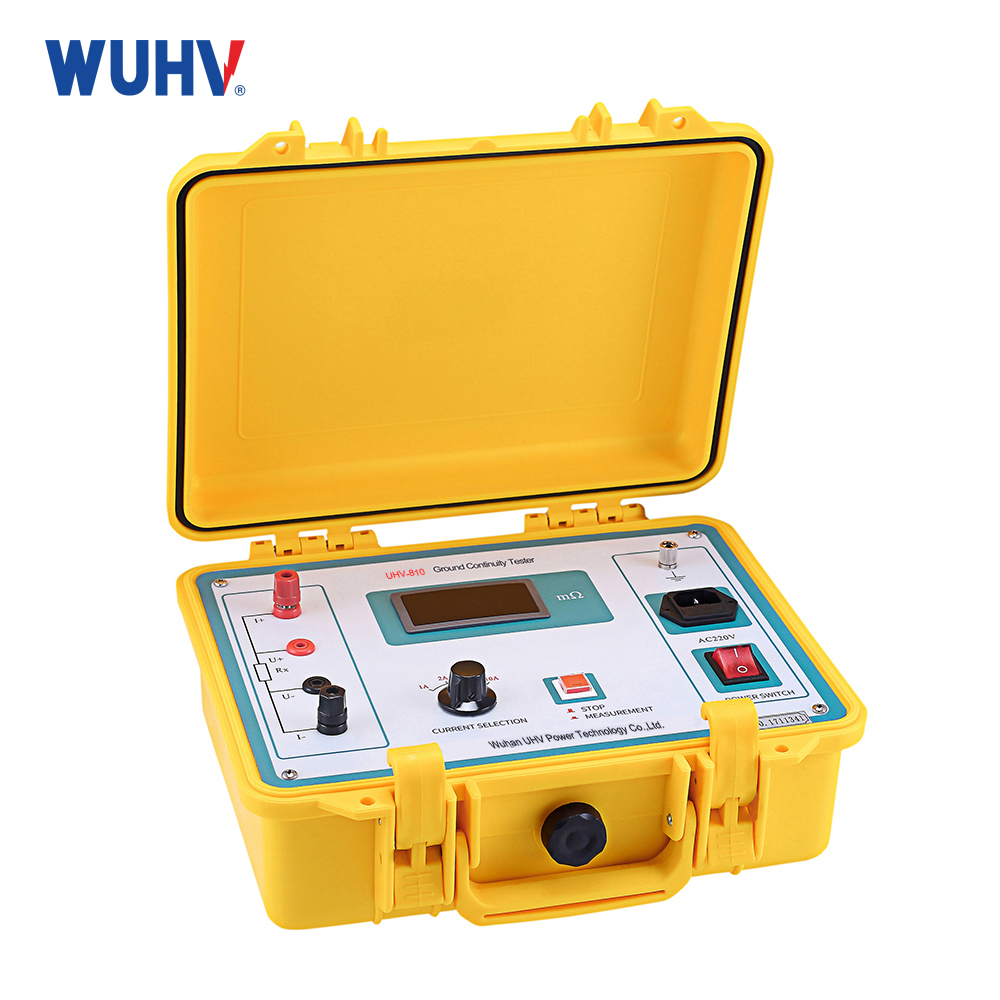

  • UHV-810 Grounding Ground Continuity Tester

    UHV-810 Grounding Ground Continuity Tester is suitable for testing the connectivity of power equipment and ground network in power sector engineering test. It is a highly automated portable tester designed specifically for electrical integrity testing of grounding devices

    Product Details of UHV-810 Grounding Ground Continuity Tester

    Ground Continuity Tester

    measurement range

    11999mΩ

    Resolution

    1mΩ

    test current

    DC1A2A5A10A Four fixed current gears

    measurement accuracy

    ±(0.5%+2d)

    measurement radius

    50m

    display mode

    3 1/2 LCD Display LCD display

    working mode

    continuously

    work power supply

    AC220V±10%50Hz

    working environment

    temperature-10℃~40

    humidity:≤80%RH

    Relative humidity

    80%

    Dimensions

    300×270×200mm3

    Weight

    5kg(excluding attachments)



    Nickname: Ground Continuity Tester; continuity tester grounding; grounding continuity tester

    Features

    1Power supply technology: the new power supply technology can output 10A current, which can work continuously for a long time. The defect of instantaneous current of impulse power supply is overcome, and the oxidation film of contact can be effectively broken through, and good test results can be obtained.

    2Strong anti-interference ability: under severe interference conditions, the last digit data of LCD can be stable within ±1 word, stable reading and good repeatability.

    3Long service life: all high-precision resistors are used to effectively eliminate the influence of environment temperature on the measurement results, and the use of military connectors enhances the anti-vibration performance.

    4Simple operation: just press the measurement key to get the measurement result. The measurement results are displayed by three and a half LED, which makes the reading intuitive and repeatable.

    5easy to carry: portable design, small volume, light weight. Panel and case into one structure, with good seismic resistance.
