Operating conditions
| Temperature | -5℃ ~ +40℃ |
Humidity | < 80% | |
Allow long term operation at rated current | ||
Allow 1.5 times overload for half an hour | ||
External Dimensions | SL-4 | 420*240*4500mm3 |
SL-7 | 600*350*700mm3 | |
Weight | SL-4 | 14kg |
Nickname:Current Generator
Features

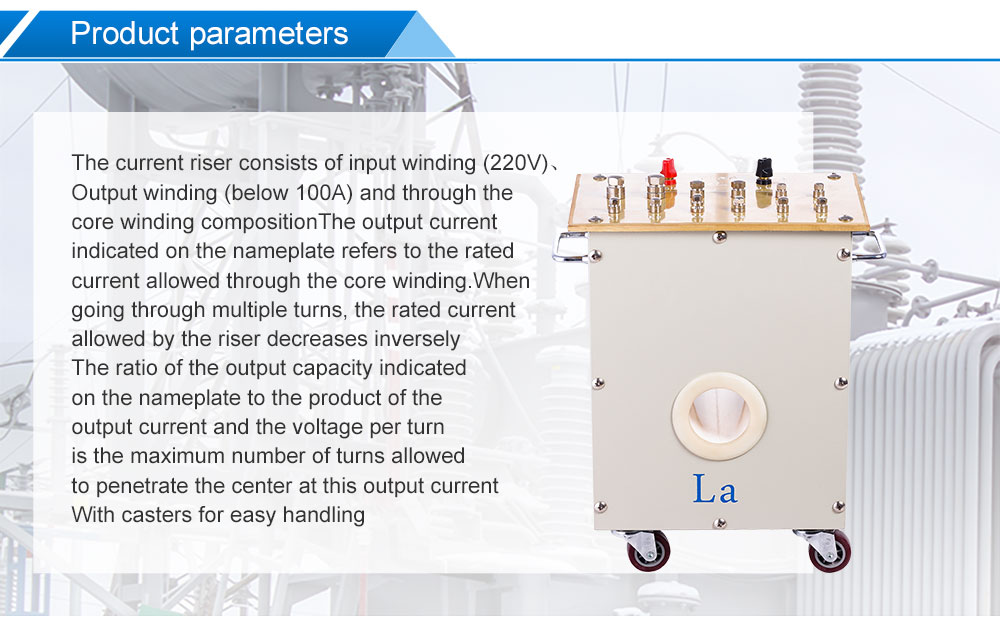

1. The current riser is composed of input winding (220V), output winding (100A below) and core winding
2. The output current indicated on the nameplate refers to the rated current allowed through the core winding. When multiple turns through the core, the rated current allowed through the riser will be inversely proportional to the decrease
3. The ratio of the output capacity indicated on the nameplate to the product of the output current and the voltage of each turn is the maximum number of turns allowed through the core under the condition of this output current
4, with casters, easy to handle
