Technical parameters

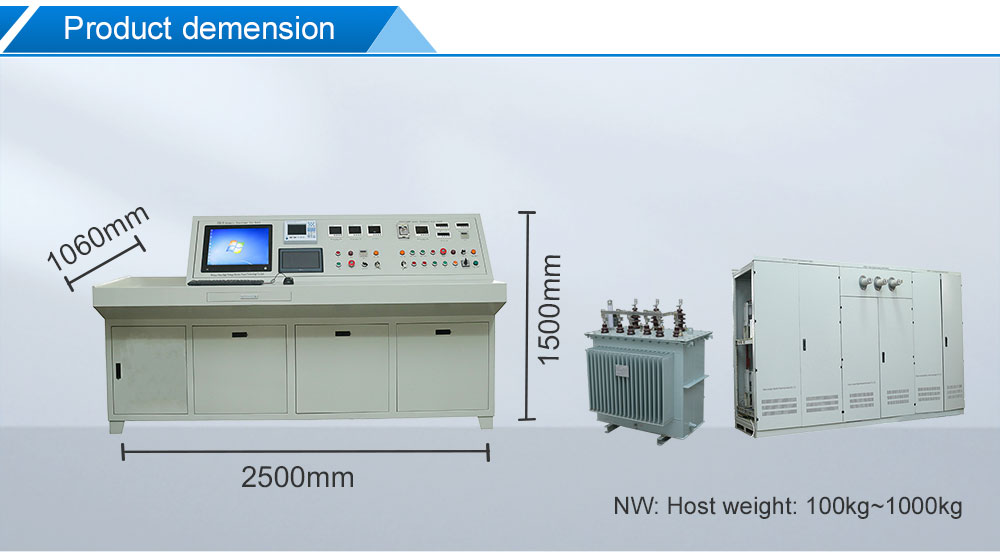

Serie | Device name | Product model | Number | Note |
Part 1 ：Main console body | ||||
1 | Automatic test system integrated console | HTBZ-H | 1 unit | |
Low voltage compensation auxiliary control cabinet | HTBZ-H | 1 unit | Containing Compensation Device | |

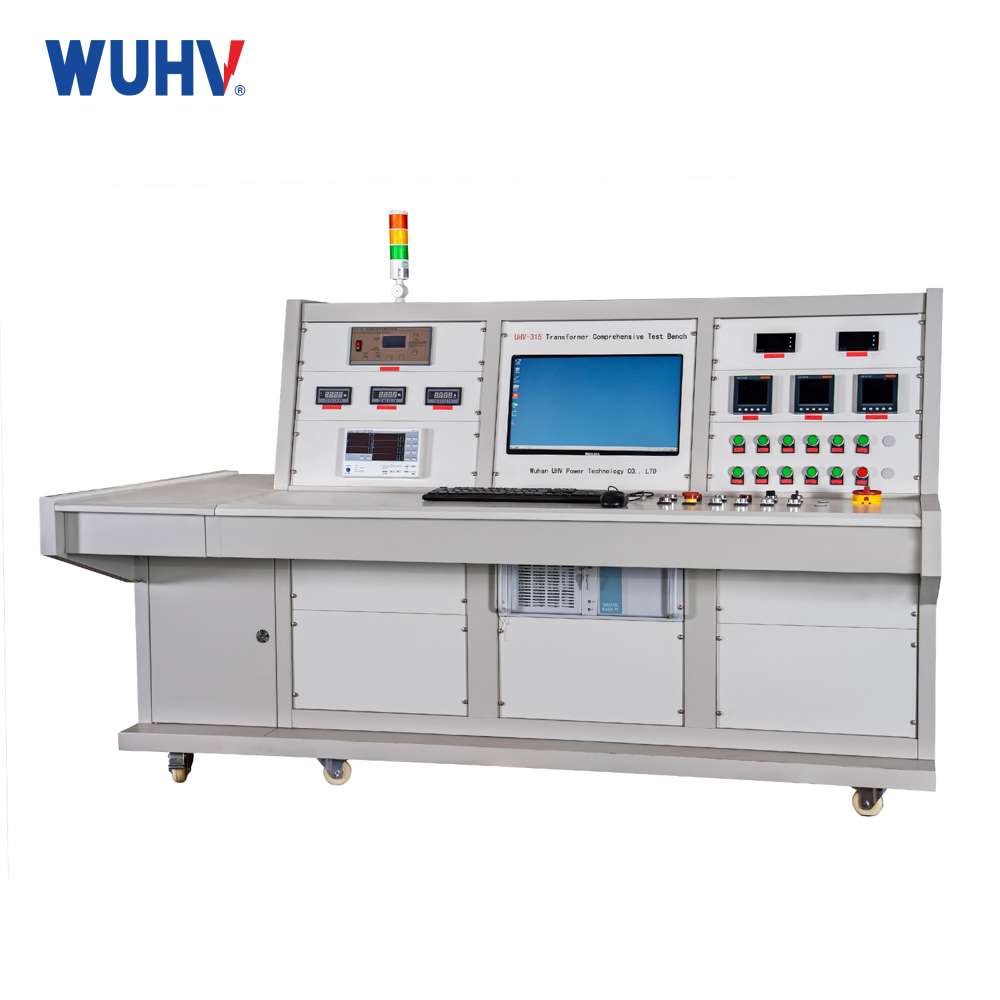

Fully automated test software system | HT-C | 1 set | ||
Industrial computer and printer | Integrated machine | |||
Part 2 ：Transformer characteristic test | ||||
2 | Transformer power analyzer | HTTPA-101 | 1 unit | |

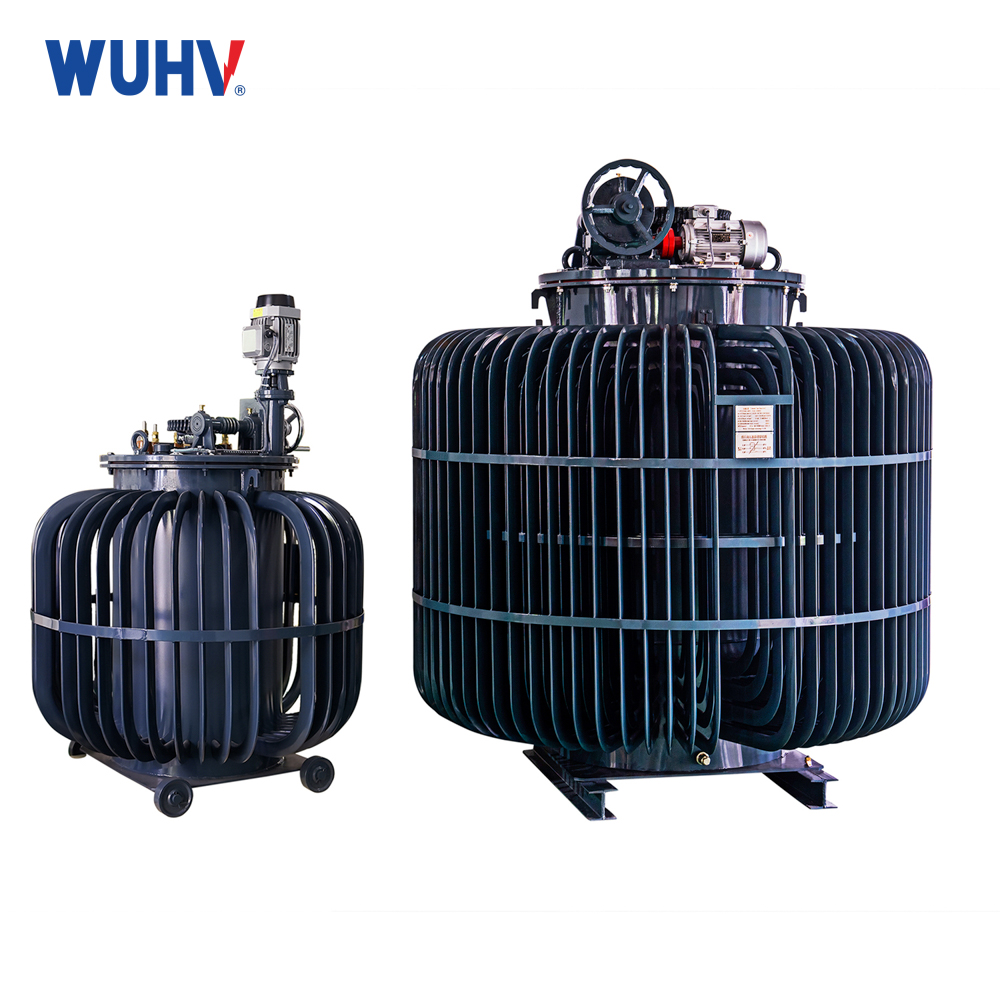

Induction electric voltage regulator | HTTY-100kVA/10- 700V | 1 unit | ||
Part 3 ：Test Instruments | ||||
3 | Automatic Turn Ratio Grouping Tester | HTBC-V | 1 unit | |
Part 4 ：Power Frequency Voltage and Inductive Voltage Test | ||||

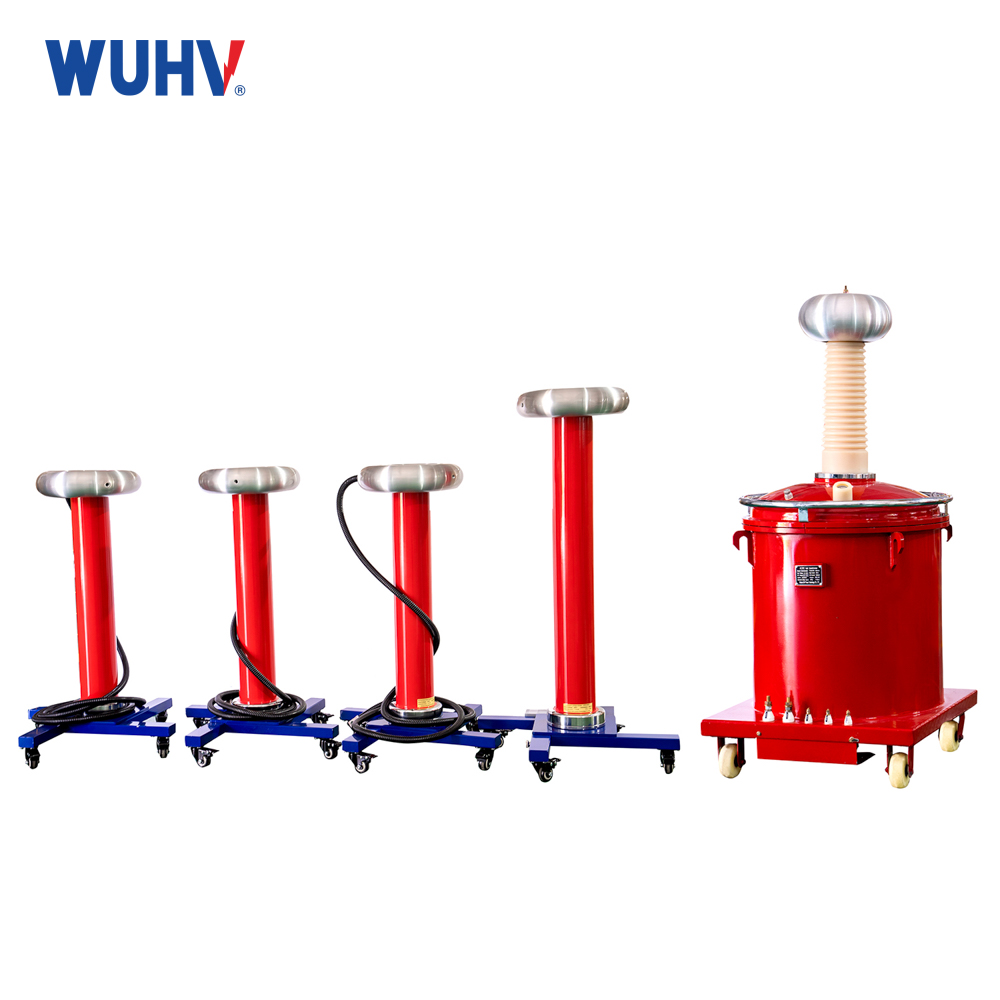

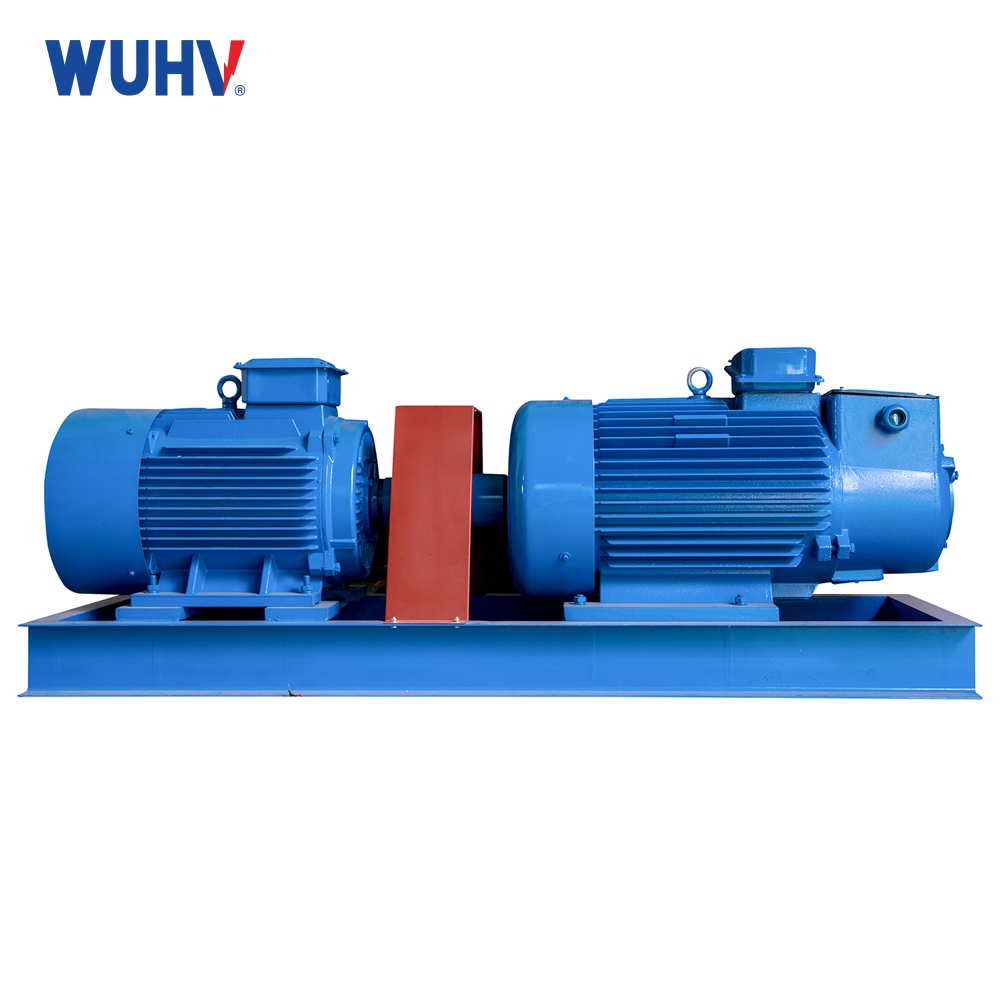

4 | AC test transformer | GTB-20kVA/100kV | 1 set | |
5 | Intermediate Frequency Generator Set | HTFDJ-20kVA | 1 set | |
Part 5 ：Temperature rise test | ||||
6 | Dual-Channel Temperature-Rising DC Resistance Tester | HTZZ-20W | 1 unit | |
7 | Temperature Patrol Instrument | HTXJ-16 | 1 unit | |
Temperature probe | TP100 | 10PCS | ||
Temperature rise cabinet | HTFX-16 | 1 unit | ||
Configuration for 35kV Test | ||||
1 | High Voltage Test Auxiliary Control Cabinet | HTBZ-H | 1 unit | |
2 | Characteristic and Frequency Induction Boost Intermediate Transformer | 250kVA 0.6/2 kV 3.5kV | 1 unit | |
3 | High Voltage Standard Current Transformer | HL-400A | 3 units | Accuracy level 0.05 |
High Voltage Standard Current Transformer | HJ-4kV | 3 units | Accuracy level 0.05 | |

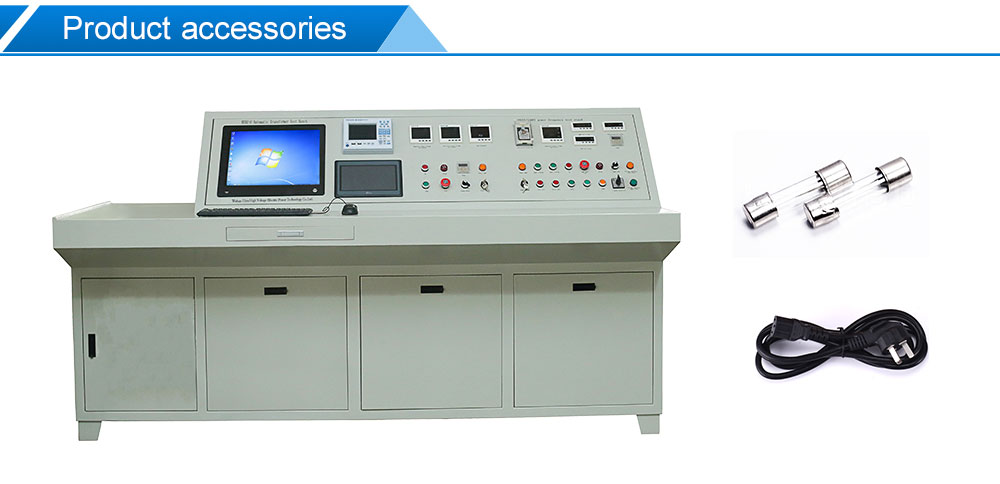

Spare parts
Serie | Product name | Specification type | Unit | Number | Explain | Price |
1 | Test cable | 95 squares | meter | 120m | Test cable | Self-provided |
2 | High Voltage Test Cable | 50 squares | meter | 50m | Test cable | Self-provided |
3 | On-site debugging of cables | 95 squares | meter | Self-provided | ||
4 | High current test clamp | 300A | pcs | 3 | Free | Free |
5 | Electric Voltage Regulator Control Connection | 10 cores | pcs | 1 | Free | Free |
6 | Digital Thermo-hygrometer | pcs | 1 | Free | Free |

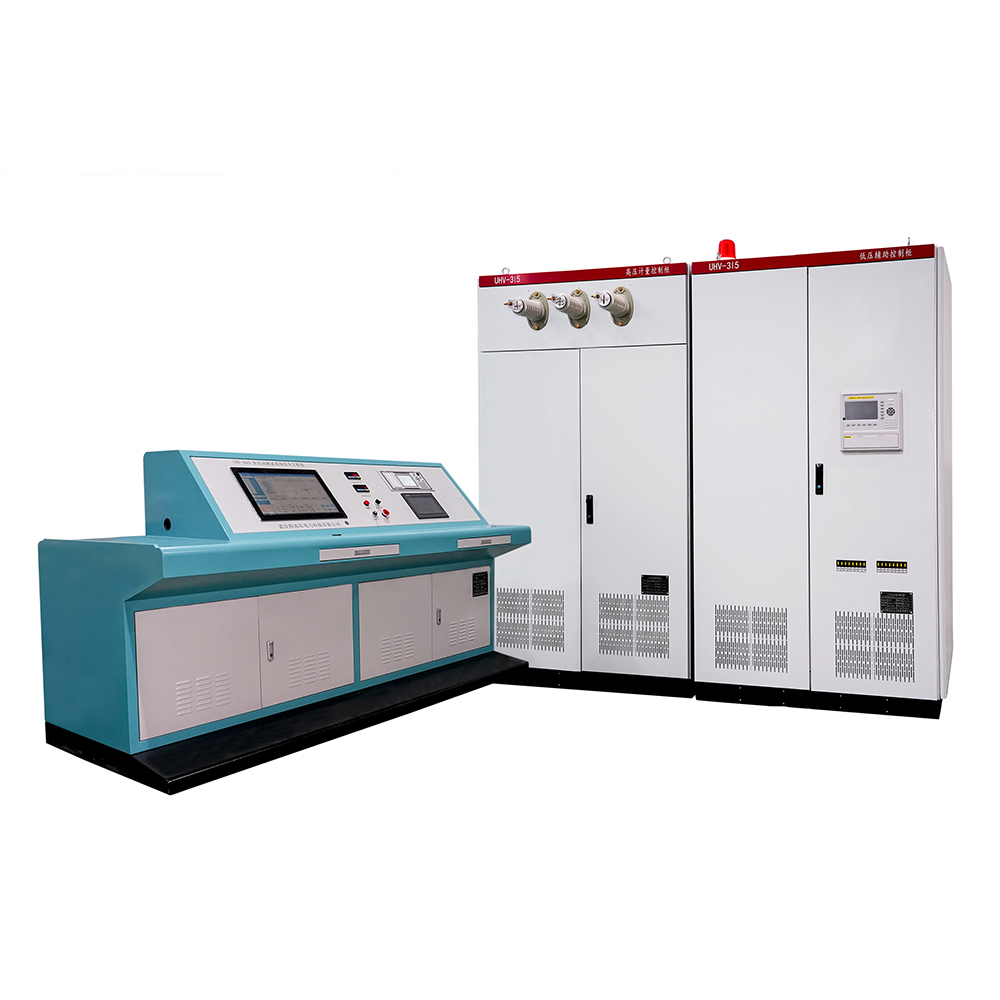

Nickname: Transformer Test Bench; Transformer comprehensive tester
Feature:

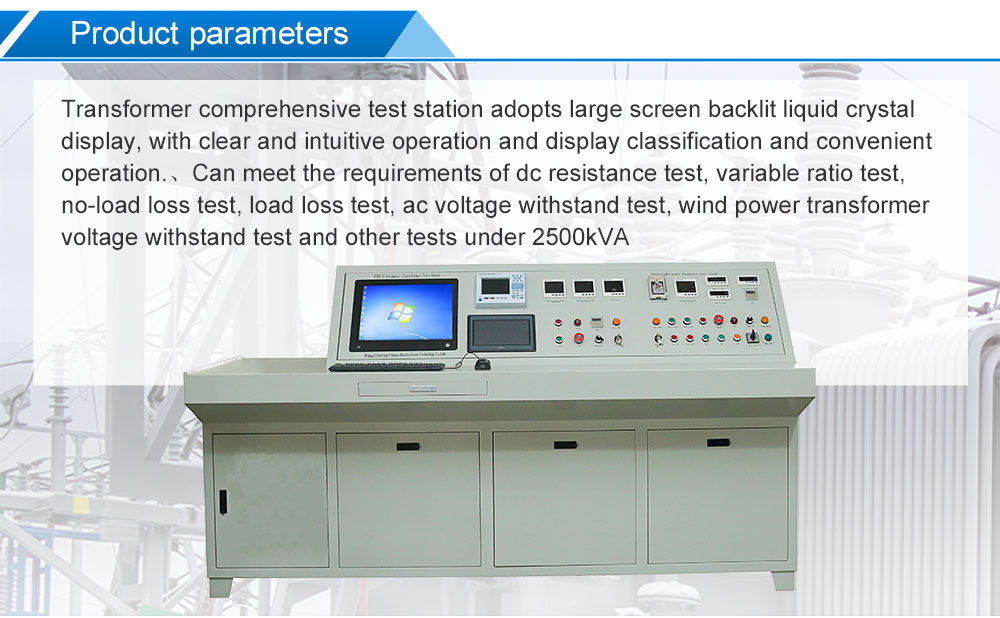

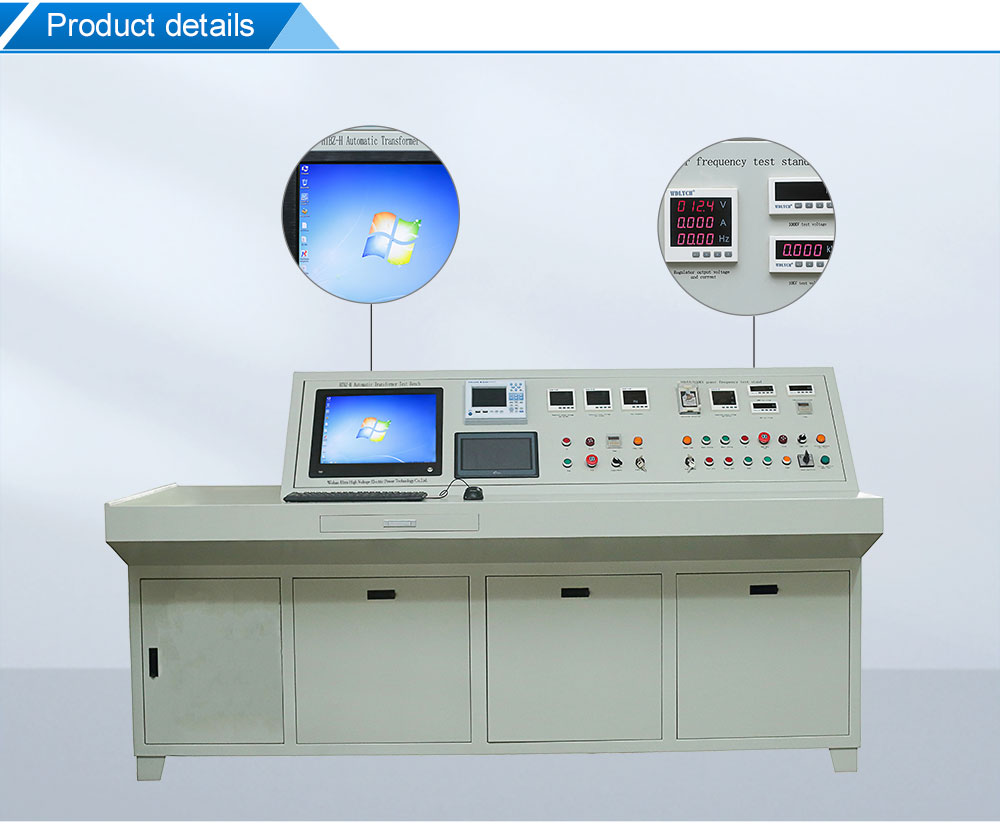

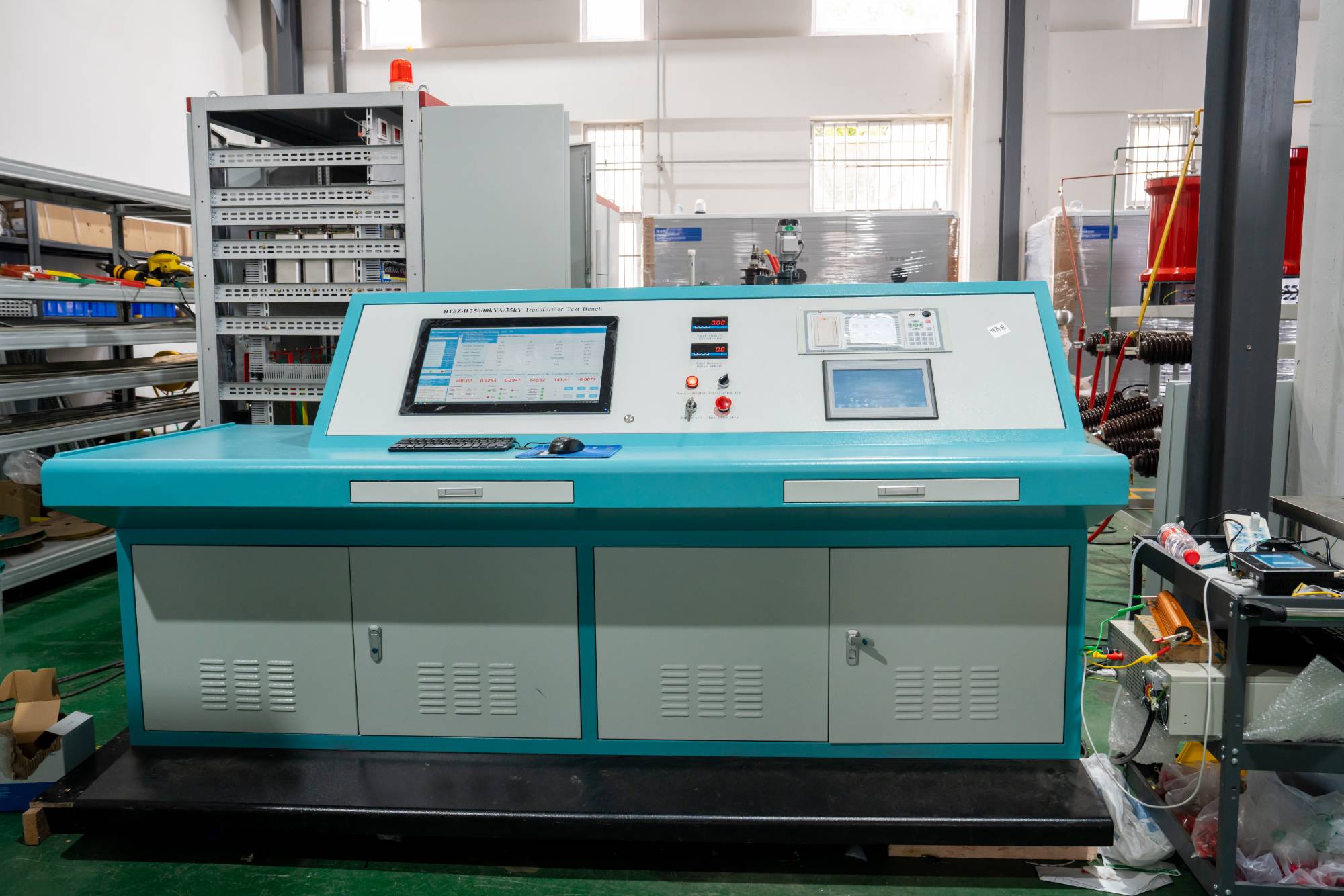

1．Transformer comprehensive test station adopts large screen backlit liquid crystal display, with clear and intuitive operation and display classification and convenient operation.
2．Can meet the requirements of dc resistance test, variable ratio test, no-load loss test, load loss test, ac voltage withstand test, wind power transformer voltage withstand test and other tests under 2500kVA
3．Voltage, current digital display meter or pointer meter reads directly, and the test results of voltage, current and voltage are printed and output
4．Withstand voltage test current sound and light alarm, timing
