Technical parameters
Capacity measuring range | 30kVA ~ 31500kVA |
Current measuring range | 0 -100A auto-switch the measurement range |
Current measurement accuracy | |
Voltage measurement range | Line Voltage0-750V; phase voltage 0-450V, auto-switch the measurement range |
Voltage measurement accuracy | ± (0.2% + 3digits) |
Insulation resistance | > 100MΩ |
Leakage current | <3.5mA |
Dielectric strength | the power connection on the chassis can withstand 1500V |
External transformer can broaden the scope of measurement instruments; | |
Frequency Range | 40 ~ 65Hz, accuracy class 0.2; |
Power Input | AC220V ± 10%; |
Nickname: No Load Tester; Transformer Capacity Tester; impedance tester
Feature:
1.This tester has large output current, light weight and other features.
2.This tester can provide 6 output current selections and the maximum output can be up to 10A.
3.This tester has a wide measurement range (0.5mΩ-100KΩ), and the resistance temperature can be conversion with the set temperature.
4.This tester is provided with a perfect protection circuit, with more reliable test performances.
5.This tester is supplied with a lithium-ion battery, with easy on-site operations.
6.This tester has a sound discharge alarm to reduce any error operation.
7.This tester can be supplied in AC or DC modes, to meet the measurement requirements on different sites.

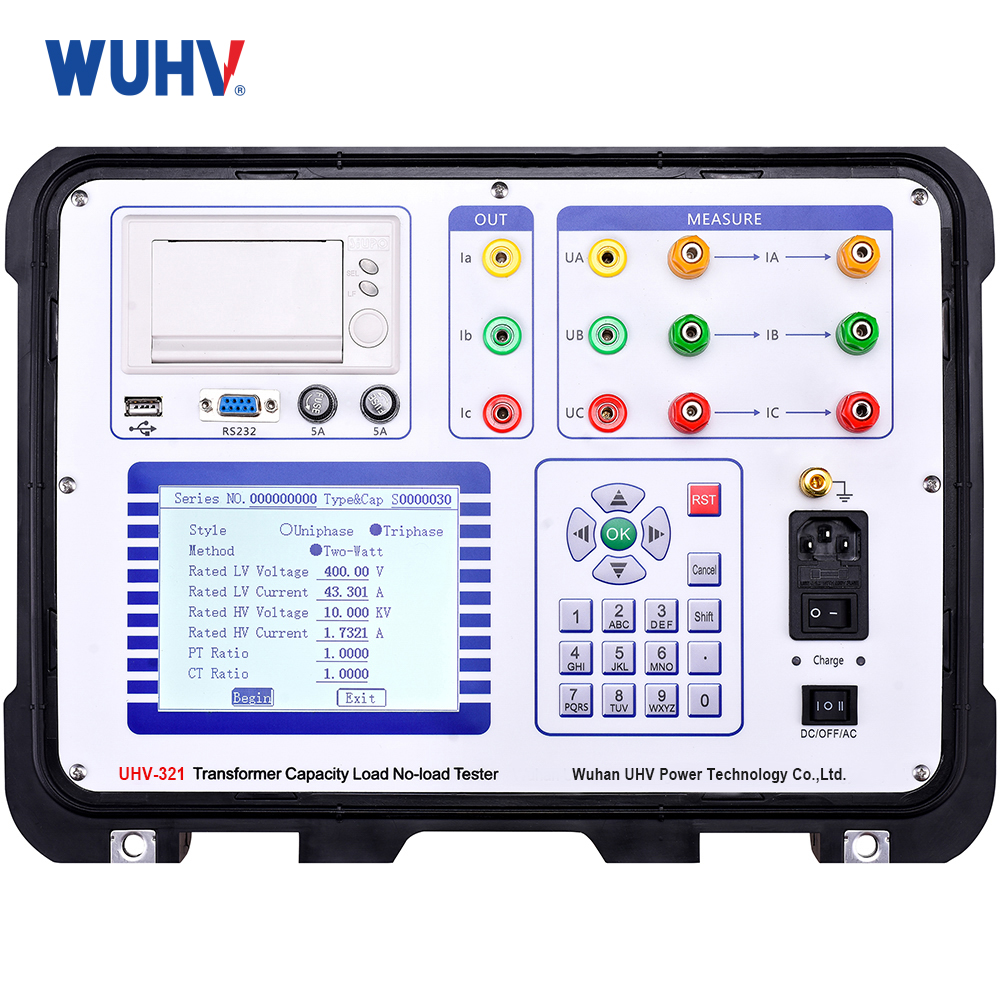

8.This tester is equipped with a 4.3-inch color LCD display, with 480×272 TFT true color screen, Chinese operation menu, and real-time output print functions.
9.This tester is equipped with RS485, used to transmit the test data to the background.
10.This tester has a large storage capacity, and can store up to 200 test records.
11.This tester is equipped with USB ports, used to transfer the test data to a U disk.
12.The parameter settings on this tester are more perfect; test winding, tap position, test phase, sample temperature and conversion temperature of the transformer can be set.
