  • UHV-500 Cable Fault Location Detector

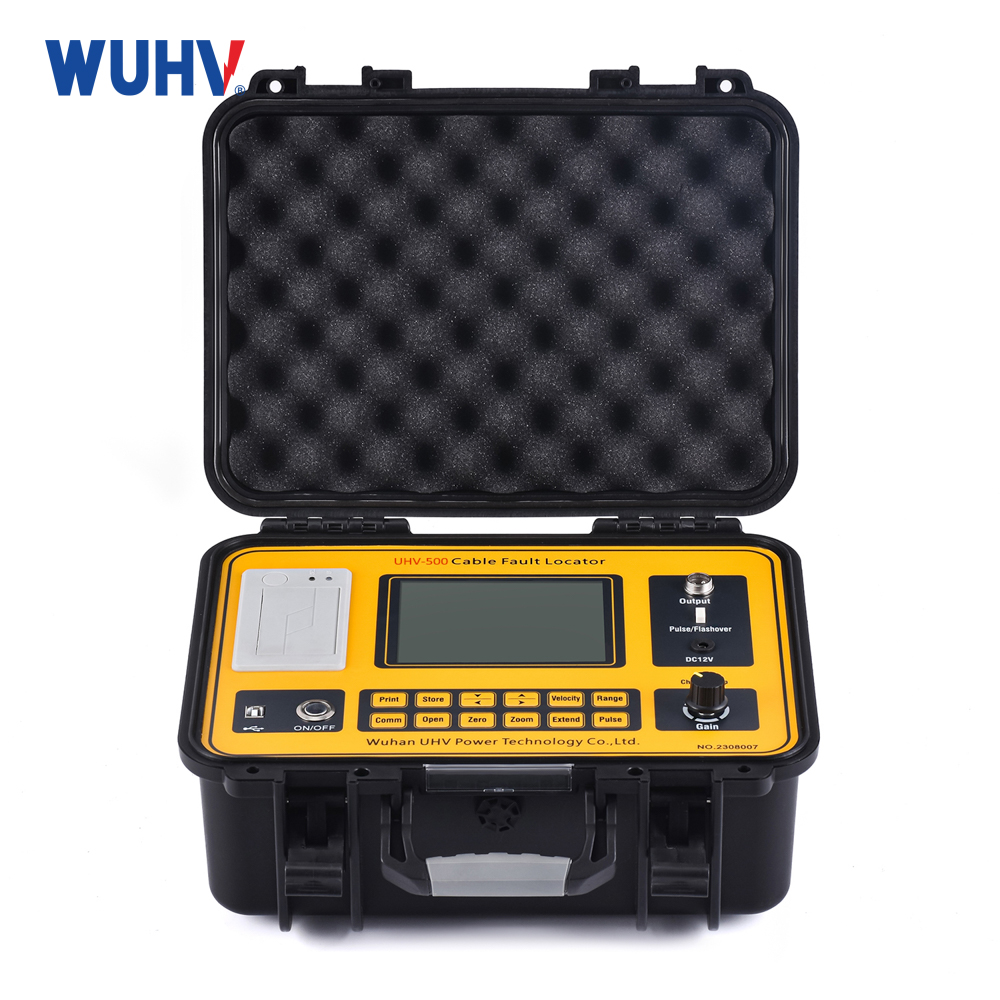

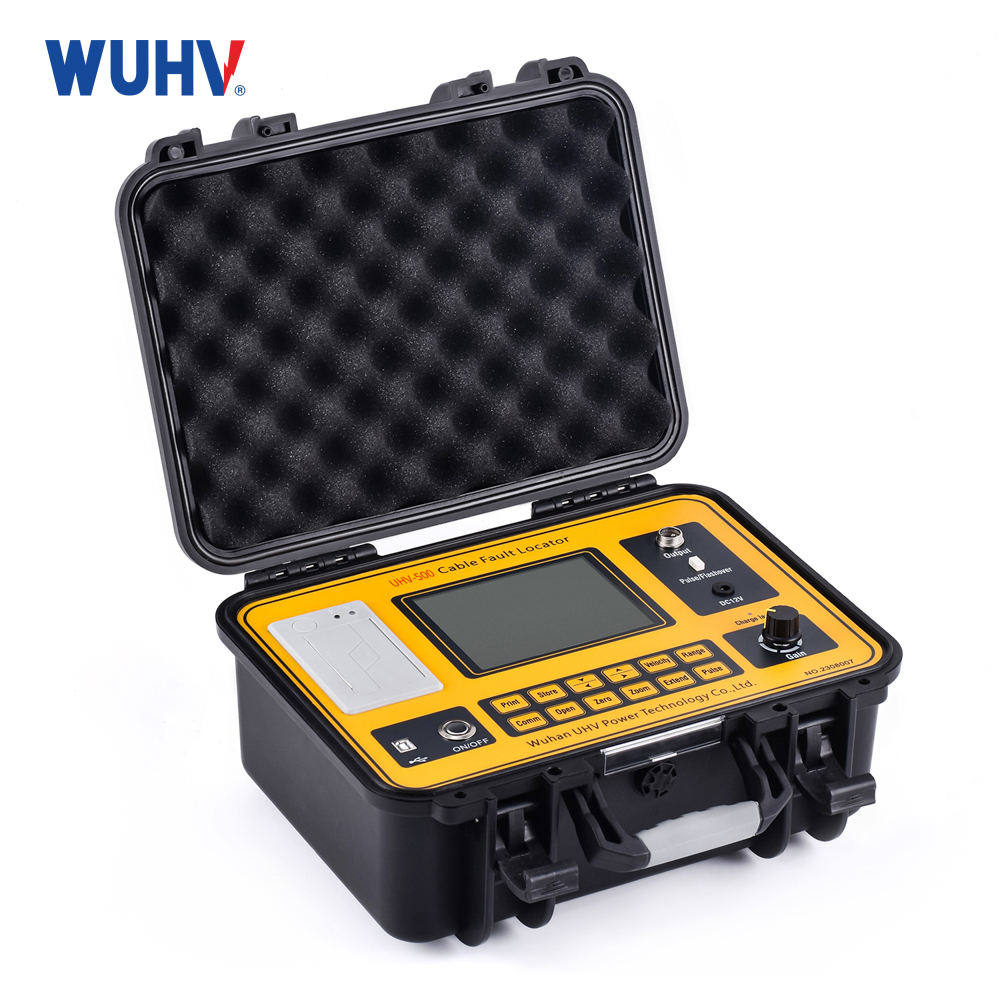

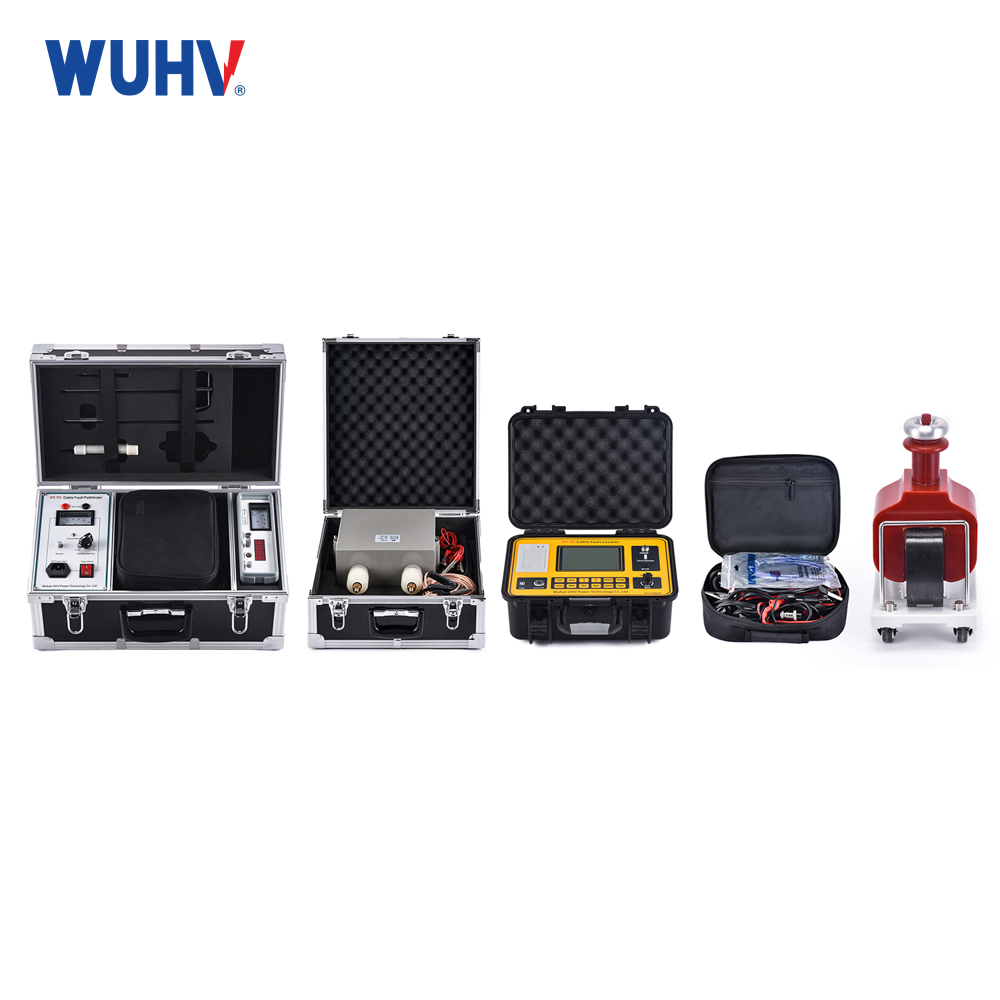

    UHV-500 Cable Fault Location Detector is an important test tool for cable communication cable and power transmission cable line maintenance. It can be used to detect the low resistance, high resistance, short circuit, open circuit, leakage fault and flashover fault of various cables

    Product Details of UHV-500 Cable Fault Location Detector


    cable fault detector

    Applications and Uses

     1. This main host can test various types of power cables (voltage 1KV ~ 35KV) and telephone cable, FM communication cables, coaxial cables, and the short circuit on the metal overhead cables, grounding, high resistance leakage, high impedance fault flash-over ,cables disconnection, and poor contact fault; and it can also test the length of the cable and the waveform transmission velocity.

     Farthest test distance: 15Km (open wire up to 100 km)

     Detection blind area : 1m

     Data-reading resolution: 1m

     Power dissipation : 5VA

     Conditions of Use: Ambient temperature 0 ℃ ~ + 40 ℃

     (Limit temperature -10 ℃ ~ + 50 ℃)

     Relative humidity 40 ℃ (20 ~ 90)% RH

    Atmospheric pressure (86 ~ 106) Kpa

    Volume: 275 × 220 × 160mm3

     Weight: 1.8kg

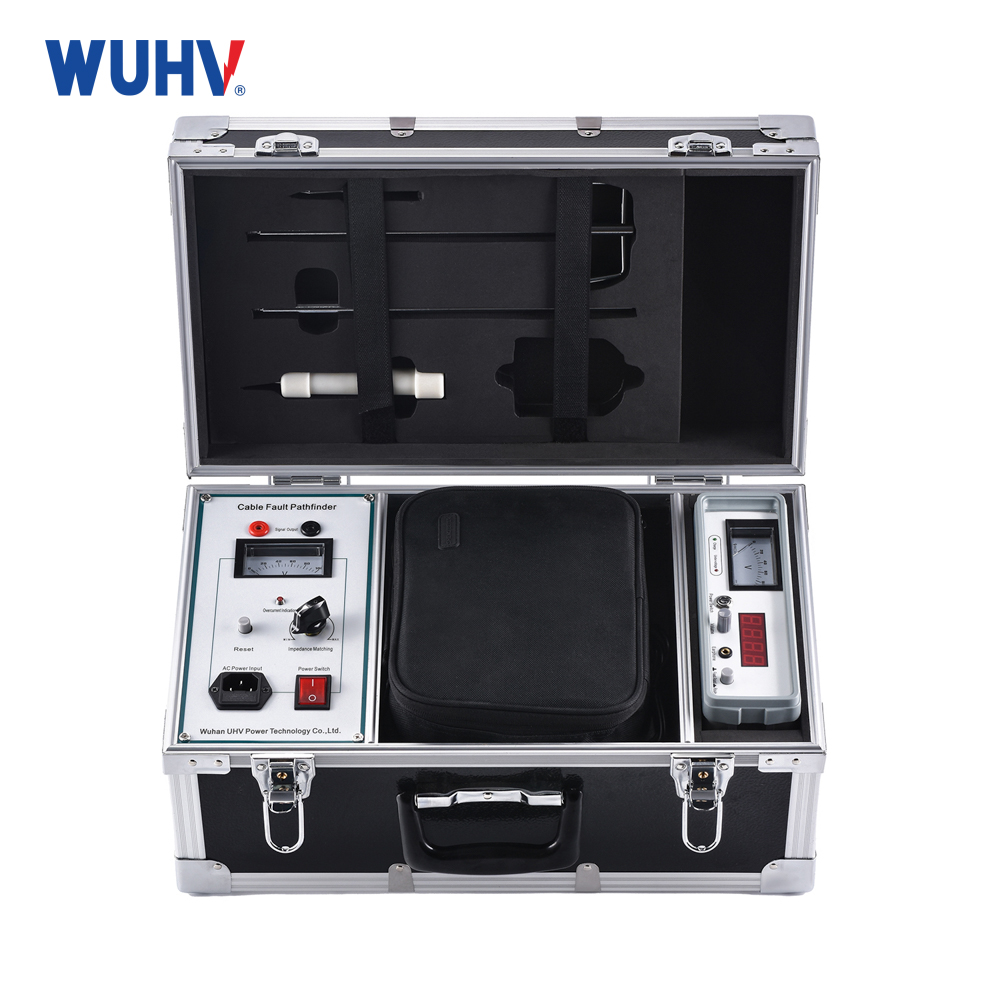

    2.Pathfinder

    operation mode

    Output - fixed frequency intermittent square wave signal

    Output Power

    Pomax≥100W

    Output impedance

    Output signal frequency

    16kHz

    Output signal amplitude

    15V-340V

    Pathfinder transmitter power supply

    AC220V±10℅



    3.Fault locator


    Rough measurement error

    Less than 10%

    Fixed-point error

    <±10cm

    Electromagnetic channel gain

    >110dB (300,000 times)

    Electromagnetic channel receiver sensitivity

    <5μV

    Sound channel audio amplifier gain

    <120dB (1 million times when the signal-to-noise ratio is 4:1)

    50Hz Power frequency rejection

    >40dB (100 times)

    Power consumption

    <120mA (0.7W)

    Buried depth detection

    ≦3m




                                                                                                                      Pulse capacitor




    performance

    1. The metal casing is fully sealed and small in size and light in weight.

    2. Suitable for inrush current generators, laser equipment, lightning rod test equipment and other lines.

    parameter

    1. Detailed specification: GB/T4704-92

    2. Ambient temperature: -40 ° C ~ 55 ° C

    3. Rated voltage: 1KV ~ 15KV

    4. Nominal capacitance: 0.1μF ~ 8μF

    5. Capacitance tolerance: ±5%; ±10%

    6. Loss tangent: ≤0.01

    7. Insulation resistance: ≥2000S

    8. Withstand voltage: 1.1UR ~ 1.5UR

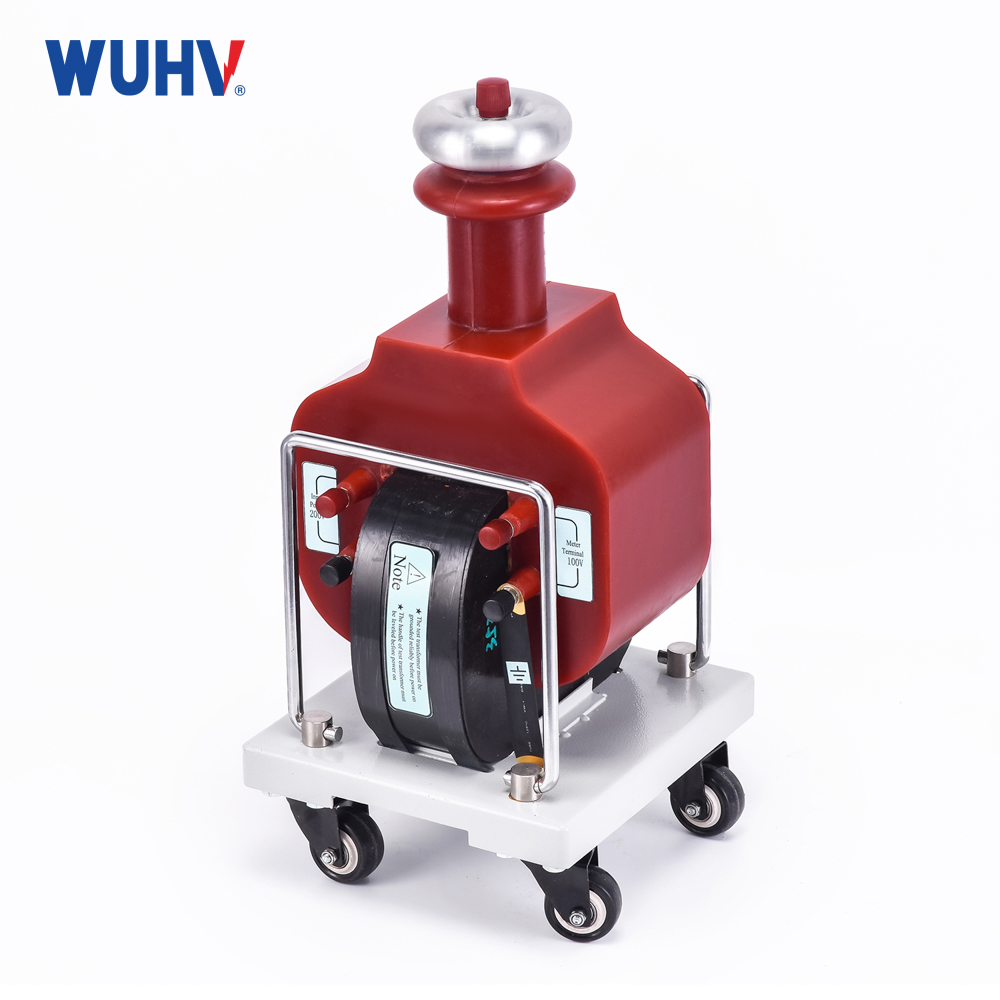

    GTB-3kVA/50kV Dry type AC test transformer





    Product characteristics:

    1The dry test transformer is small in sizein light weightcompact structuremaintenance-free

    2Simple and intuitive wiring, easy to use

    3Good insulation reliabilitygood-looking appearance

    4The dry test transformer has over current protection function





    Table 1, GTB series light AC  test transformer

    Item number

    Capacity (kVA)

    High voltage  (kV)

    High current

    (mA)

    Low voltage input

    Size

    Voltage(V)



    GTBZ3/50



    3

    50

    60

    200

    330×280×510


    Nickname:cable fault detector,cable locator,Cable Fault Locator



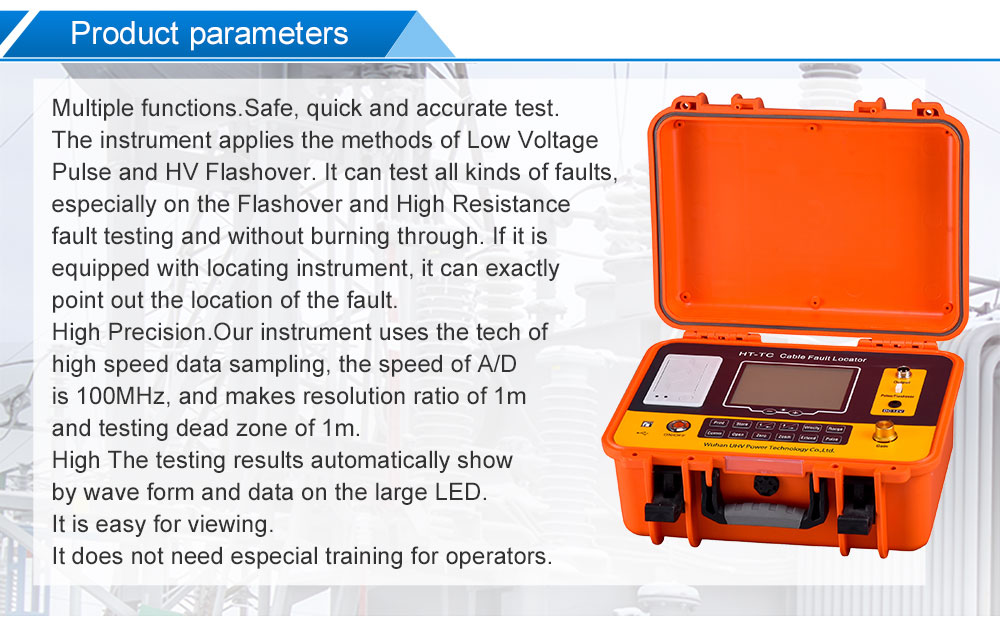

    Feature:

    Fully Featured

      It can test faults safely, rapidly and accurately ; This Tester uses low-voltage pulse method and high-voltage pulse flash-over method to detect a variety of cable faults, especially for flash-over of cable, it can be used directly without burning through cables . If equipped acoustic tester, the exact location of the fault can be accurately measured;

      High precision

      The instrument uses a high speed data sampling method ,The sampling rate of A/D can be 100MHz, which made the read resolution of this machine is 1 meter, and the blind spot detection scope is 1m.

    High intelligence

      Test results are automatically displayed on the large LCD display with waveform and data; which made the fault spot easy to be detected. And it owns Chinese menu with operation functions, so you don't need the training of the operating personnel;

        The waveform and data can be stored and tuned out;

        waveform and data will still be stored even when it is turned off because of the function of the non-volatile devices.

         it can show the dual trace;

         it can compare the fault waveform with normal waveform, which is conductive to further determine the fault;

         It can extended the proportional of the waveform;

         If the waveform proportion changed, the accurate testing can be achieved ;

         The position of the double cursor can be changed as you like, it can show the direct distance or the relative distance of the fault point and the tested point ;

         It can modify the transmission speed with different tested-cable;

    The small size makes it portable and the built-in rechargeable battery makes it easy to carry and use.





    2. Pathmeter

    ¨ (1) Low static drift: The core components are imported components with reliable performance.

    ¨ (2) High output power: precision high-power tube is used internally to ensure that the output signal power is large enough and not easy to attenuate.

    ¨ (3) Perfect protection function: The internal protection circuit of the instrument is complete, with protection functions such as overvoltage and overcurrent.

    3. Pointing instrument

    ¨ (1) Convenient to carry: Built-in rechargeable battery power supply, suitable for various occasions.

    ¨ (2) High positioning accuracy: a quartz crystal oscillator and a high-speed signal processing chip are used for signal sampling and processing, with acoustic and magnetic synchronization functions to ensure accurate and reliable positioning accuracy.

    ¨ (3) Strong anti-interference ability: under severe interference conditions, the instrument can still guarantee good performance and work stably.

    ¨ (4) High receiving sensitivity: Special manufacturing technology is adopted to increase the transmission distance, and the instrument can still receive signals clearly.
