  • UHV-521 Live line Cable Identification Device

    UHV-521 Live line Cable Identification Device used to identify a particular cable from a bundle of cables and used to identify a particular cable from a bundle of cables. It can identify both power outage cables and live cables, and meet the multiple needs of cable identification in power construction sites.

    Product Details of UHV-521 Live line Cable Identification Device

    On line Cable Identifier

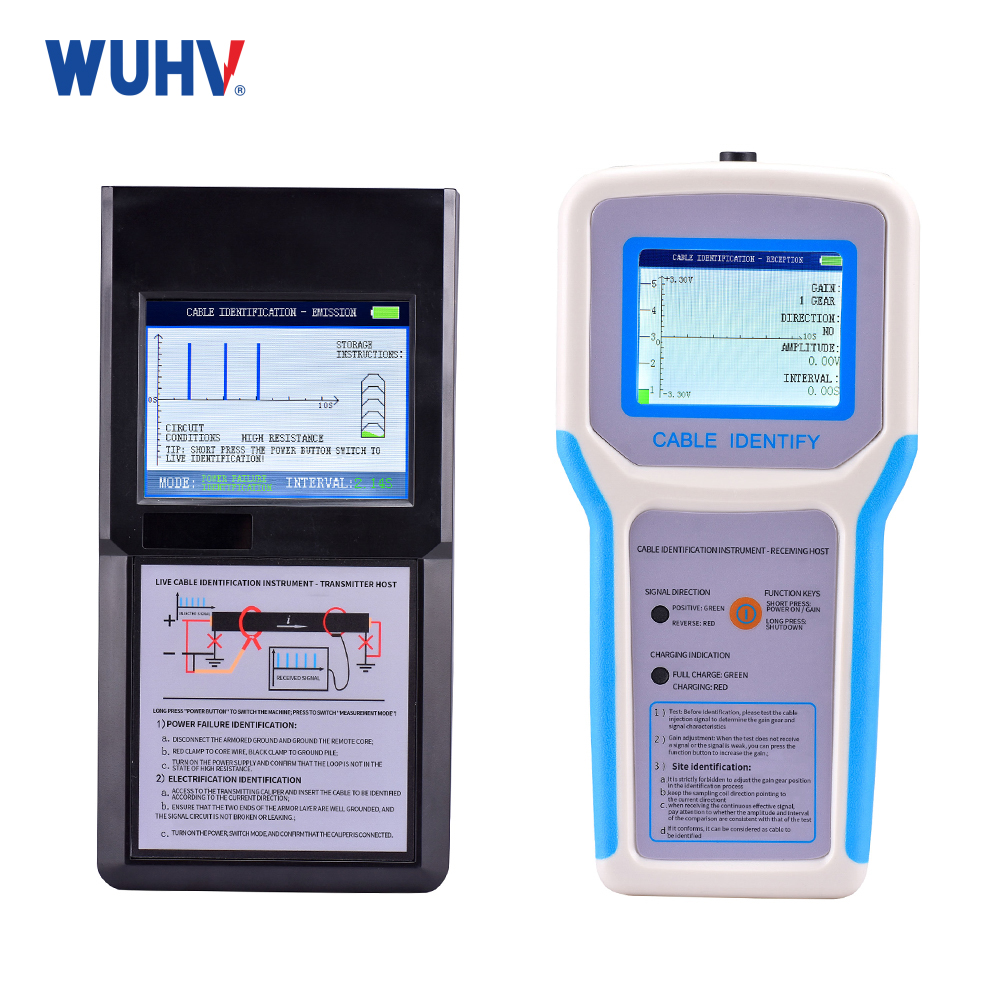

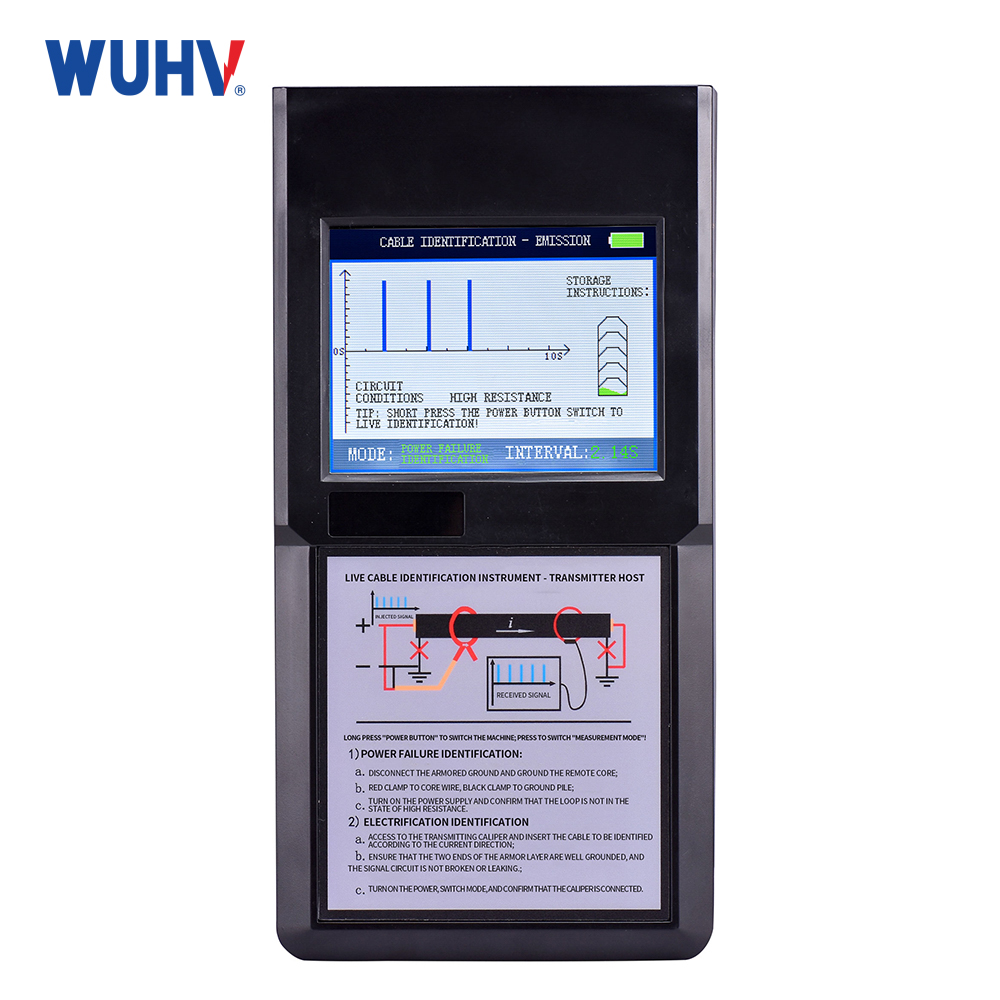

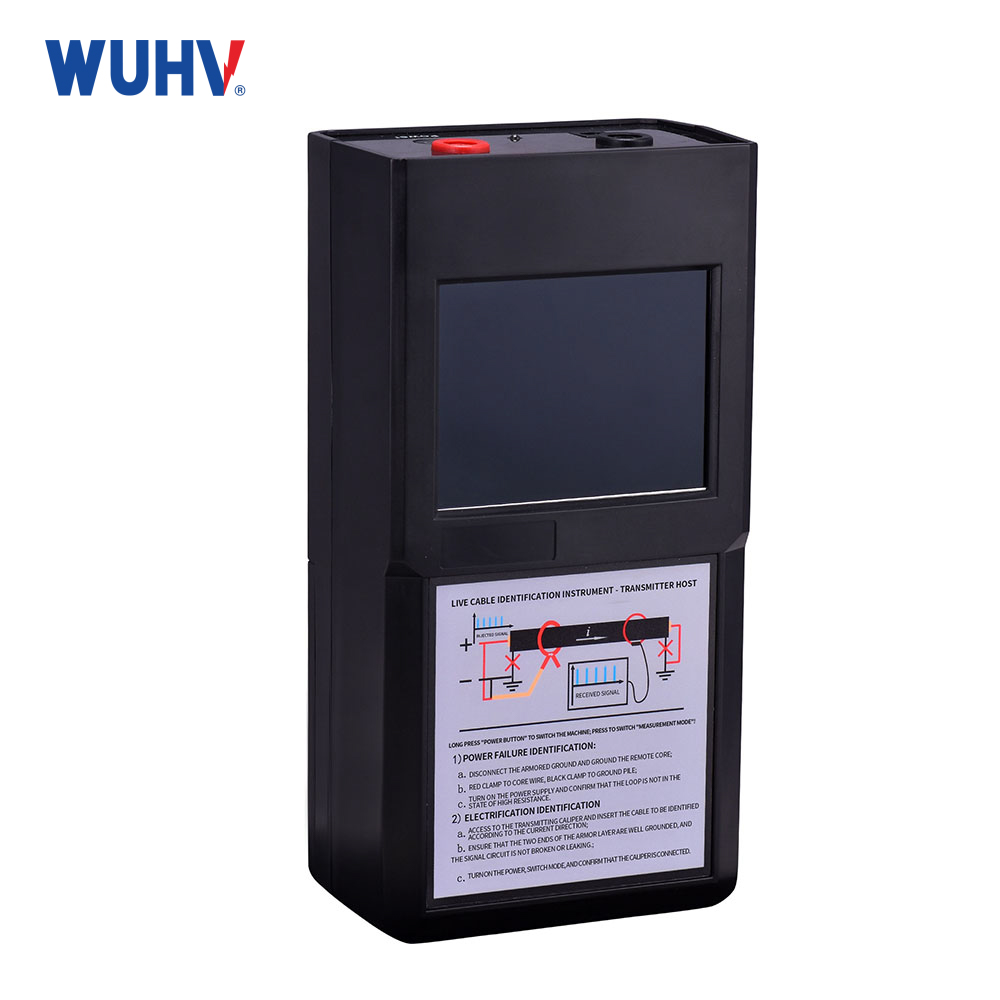

    Transmitting host

    Charging voltage

    DC5V

    Power consumption

    ≤ 3W

    Work hours

    ≥ 12h

    Signal interval

    ≈ 2 seconds

    Launch caliper inner diameter

    ≥ 125mm

    Environment temperature

    -35℃ +55℃

    Environmental humidity

    ≤ 95%RH

    Receiving host

    Charging voltage

    DC5V

    Power consumption

    ≤ 1W

    Identify ways

    direction, amplitude, interval, triple judgment basis

    Reception sensitivity

    power - ground circuit resistance≤500Ω

    live - ground circuit resistance≤200Ω

    Work hours

    ≥ 12h

    Environment temperature

    -35℃ +55℃

    Environmental humidity

    ≤ 95%RH

    Diemension

    Case

    520mm×350mm×170mm



    NicknameOn line Cable Identifiercable identification devicelive cable identifierCable Identifier





    Feature:

    1. The transmitting host is powered by a high-energy lithium battery, which does not require an on-site 220V power supply. It is easy to use and has a compact design, low power consumption, long power supply time, and multi-level power indication.

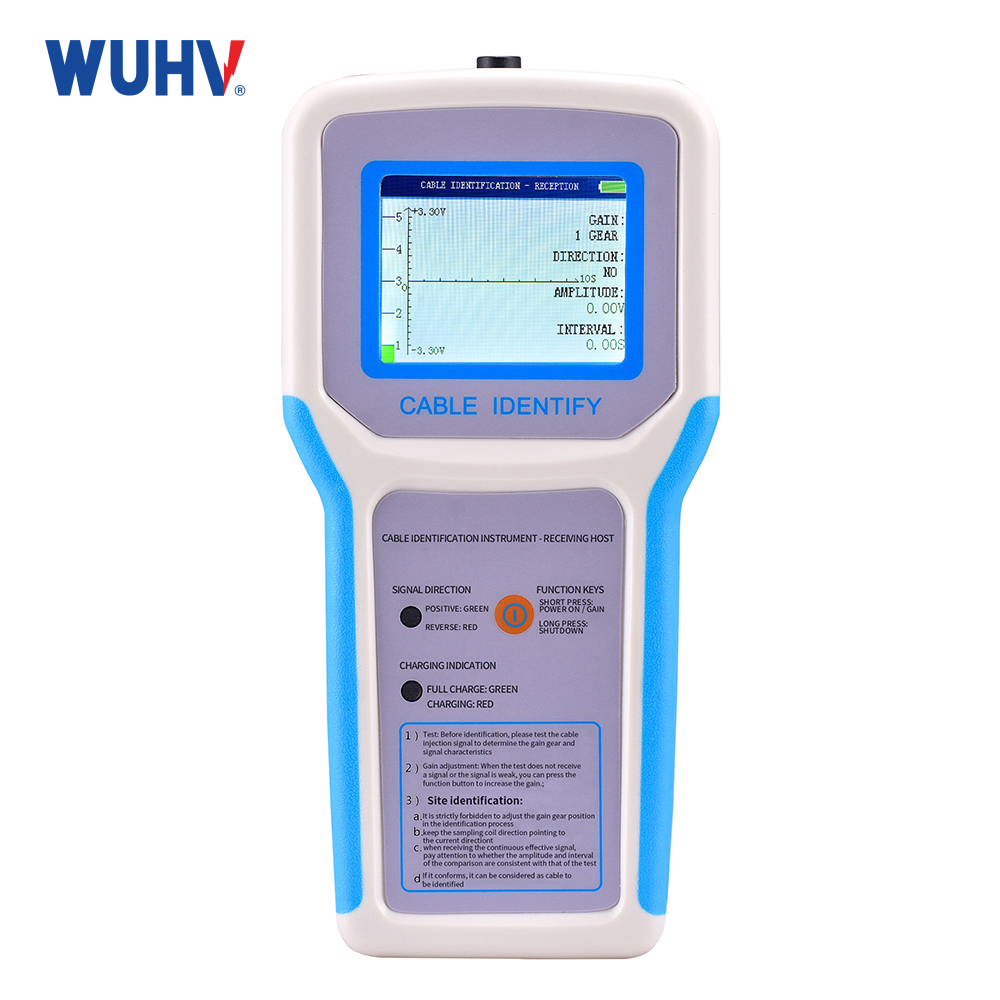

    2. The receiving host adopts a color screen LCD liquid crystal display, accurate power reminder, and the direction, amplitude, and interval of the synchronously displayed signals are used as the basis for effective judgment. Multiple signals are retained on the time axis, and the continuous effective signals are used to more accurately determine the to be identified cable.

    3. The flexible measuring coil is used for cable identification, which solves the problem that the traditional receiving caliper cannot be caught in the cable to be identified, and cannot be identified, due to the congestion and overlap of the power field cables.

    4. Equipped with launch calipers, which realizes the function of live identification through caliper coupling, so that one machine can be used for multiple purposes.

    5, ABS high-strength protection box, effective protection of instruments, while facilitating transportation and adapting to the harsh environment of the construction site.
