Transmitting host
Charging voltage | DC5V |
Power consumption | ≤ 3W |
Work hours | ≥ 12h |
Signal interval | ≈ 2 seconds |
Launch caliper inner diameter | ≥ 125mm |
Environment temperature | -35℃ ～ +55℃ |
Environmental humidity | ≤ 95%RH |

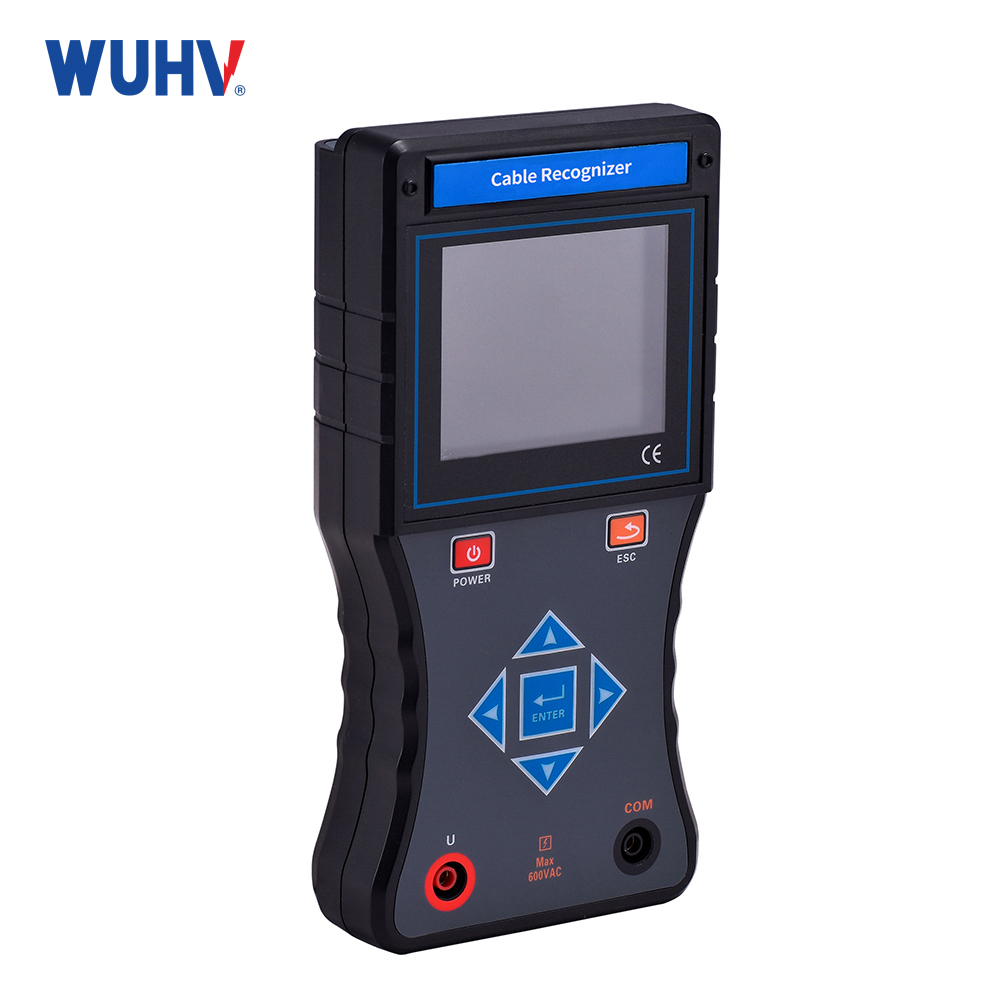

Receiving host
Charging voltage | DC5V |
Power consumption | ≤ 1W |
Identify ways | direction, amplitude, interval, triple judgment basis |
Reception sensitivity | power - ground circuit resistance≤500Ω |
live - ground circuit resistance≤200Ω | |
Work hours | ≥ 12h |
Environment temperature | -35℃ ～ +55℃ |
Environmental humidity | ≤ 95%RH |

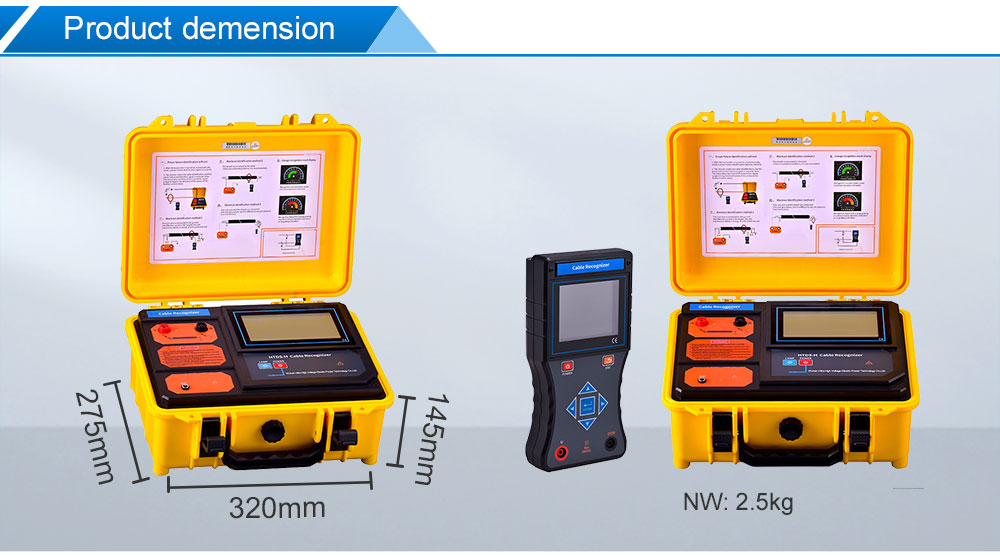

Diemension
Case | 520mm×350mm×170mm |
Nickname：Power cable identifier，off line cable identifier，cable identifying，Cable Identification Tester
Feature:
1. The transmitting host is powered by a high-energy lithium battery, which does not require an on-site 220V power supply. It is easy to use and has a compact design, low power consumption, long power supply time, and multi-level power indication.

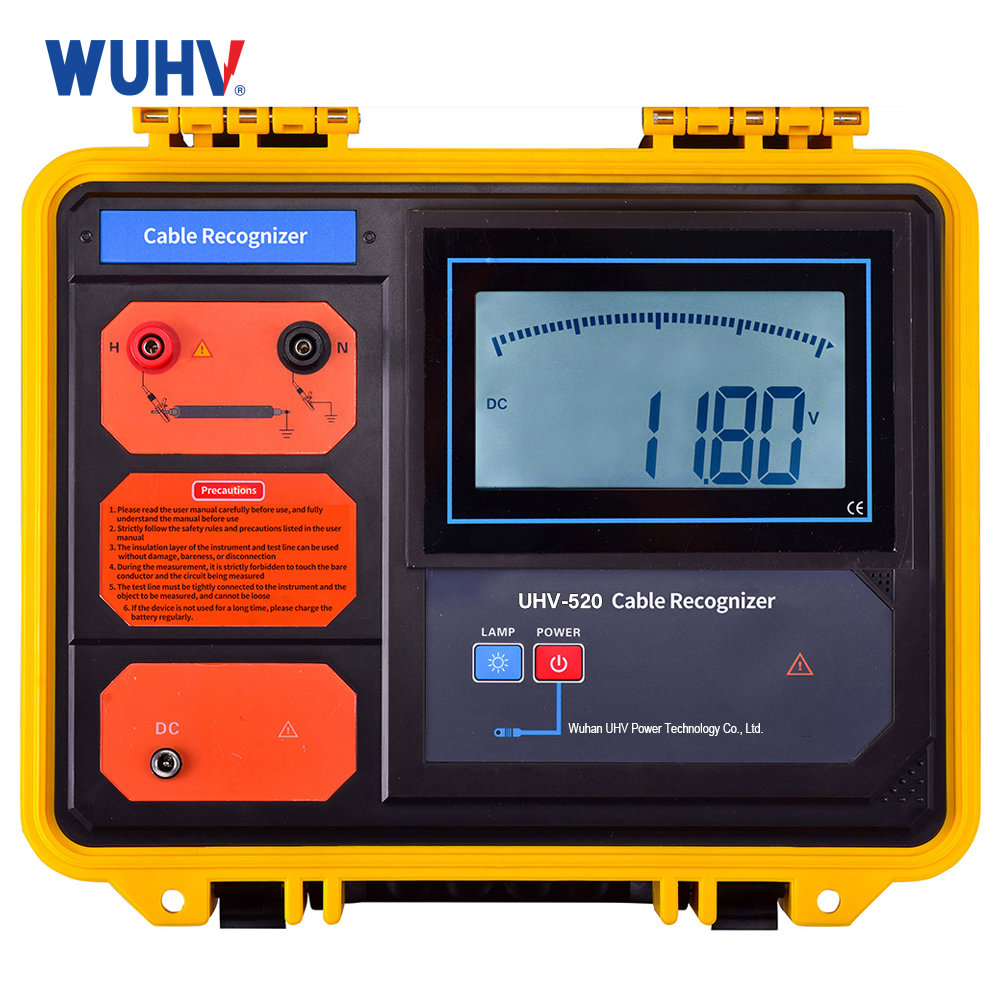

2. The receiving host adopts a color screen LCD liquid crystal display, accurate power reminder, and the direction, amplitude, and interval of the synchronously displayed signals are used as the basis for effective judgment. Multiple signals are retained on the time axis, and the continuous effective signals are used to more accurately determine the to be identified cable.

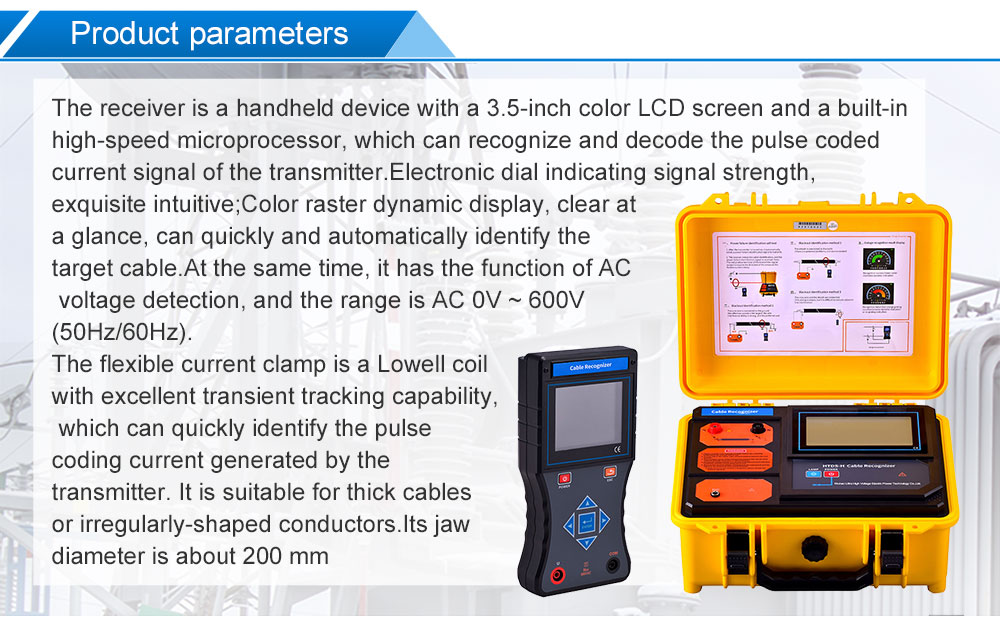

3. The flexible measuring coil is used for cable identification, which solves the problem that the traditional receiving caliper cannot be caught in the cable to be identified, and cannot be identified, due to the congestion and overlap of the power field cables.

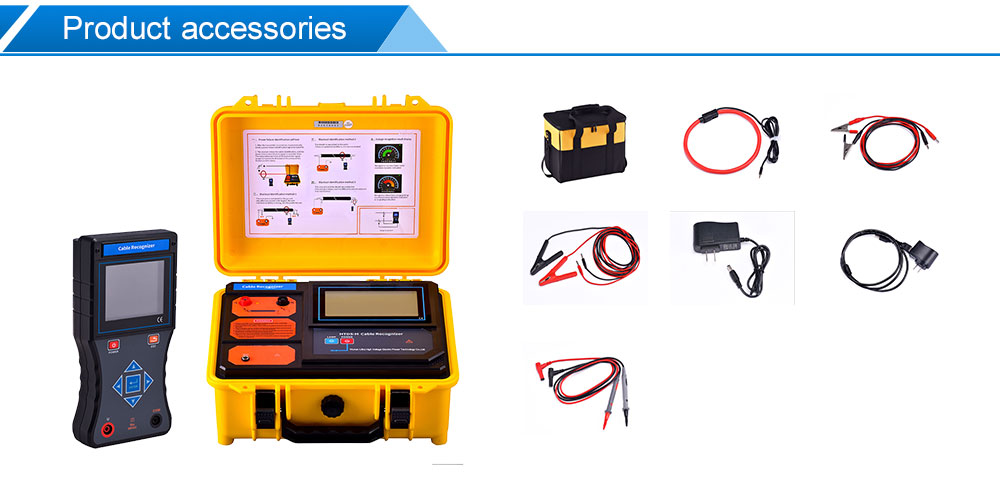

4. Equipped with launch calipers, which realizes the function of live identification through caliper coupling, so that one machine can be used for multiple purposes.

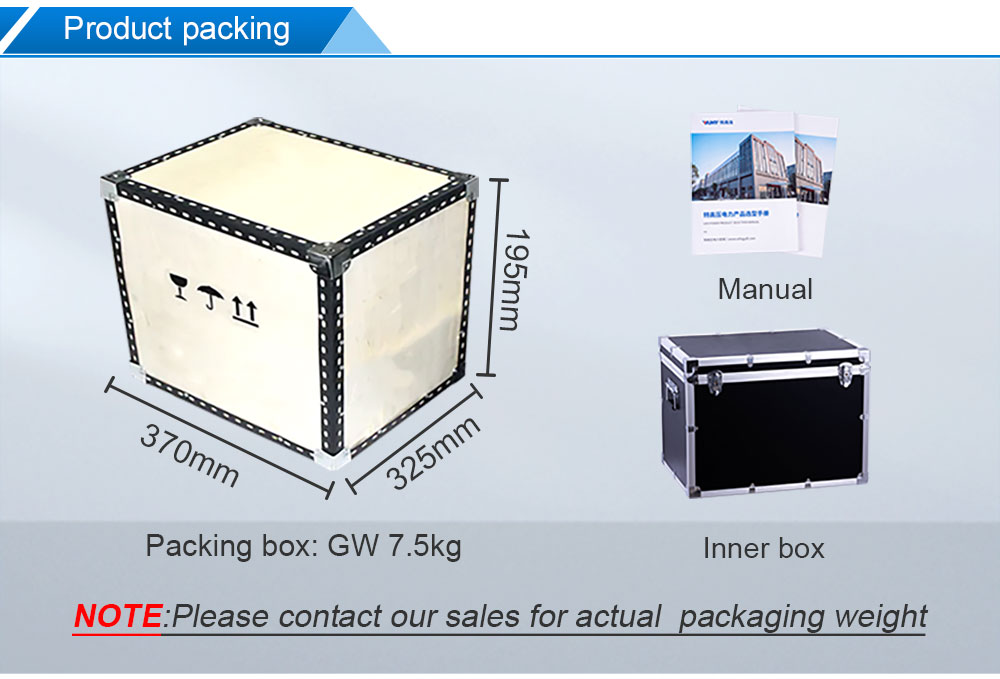

5, ABS high-strength protection box, effective protection of instruments, while facilitating transportation and adapting to the harsh environment of the construction site.
