Technical parameters
power supply voltage | AC 220V±10% |
Power frequency | 50 Hz ± 5 Hz |
Power consumption | ＜200 W |
Output voltage | 0-80kV |
Booster capacity | 1.5kVA |
Booster speed | 2.0 kV/s, 2.5 kV/s, 3.0 kV/s, 3.5 kV/s four gear options |
Measurement accuracy | 2% |
Resting time | 0-15min（Optional） |
Interval time | 0-10min（Optional） |
Pressure times | 1-6 times (optional) |
Stiring time | 0-90S (optional) |
Resolution | 0.1kV |
Power distortion rate | ＜1% |
Display | Large-screen LCD display |
Electrode gap | Standard 2.5 mm |
Weight | 32kg |
Size | 409 mm×393 mm×388 mm |
Conditions of use
environment temperature | 0℃～+40℃ |
Relative humidity | ＜85% |
Nickname：Oil BDV Tester，breakdown voltage Tester，bdv oil tester，bdv tester
Feature:
1. The instrument is controlled by a large-capacity single-chip microcomputer, and the work is stable and reliable;
2. A wide-range watchdog circuit is installed in the instrument to prevent crashes;
3. A variety of operation options, the instrument program is equipped with GB1986 and GB2002 two national standard methods and custom operations, which can adapt to multiple options of different users;

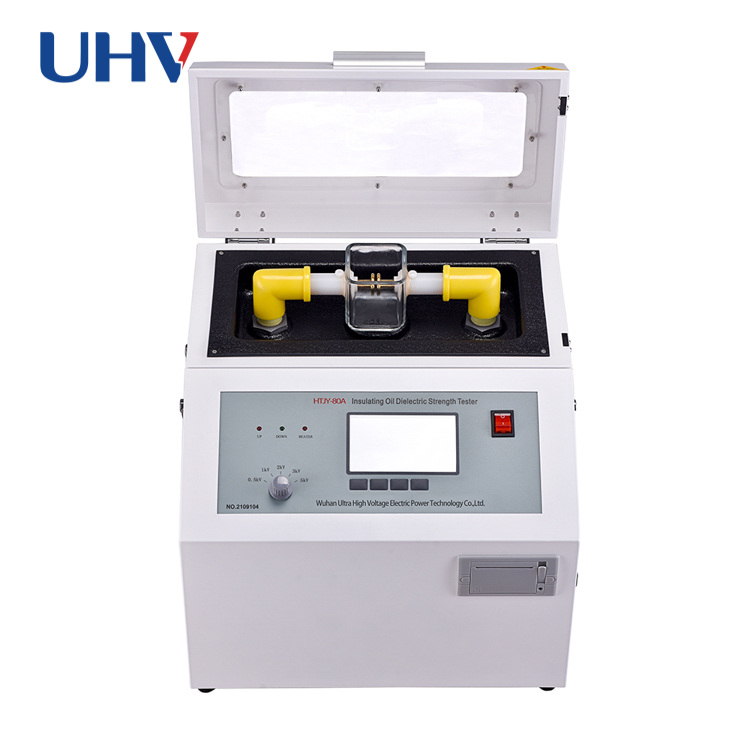

4. The instrument oil cup is made of special glass by one-time casting to prevent the occurrence of interference phenomena such as oil leakage;
5. The unique high-voltage end sampling design of the instrument allows the test value to directly enter the A/D converter, avoiding the error caused in the analog circuit, and making the measurement result more accurate;
6. The instrument has functions such as over-current, over-voltage, short-circuit protection, etc., and has strong anti-interference ability and good electromagnetic compatibility;
7. Portable structure, easy to move, very convenient for indoor and outdoor use.
