Measuring range | room temperature~400℃ |
Detection type | open flash point or ignition point |
Temperature detection | platinum resistance |
Accuracy | ±1℃ |
Repeatability | Comply with GB3536-2008 (ASTM D92), GB/T 267-88 |

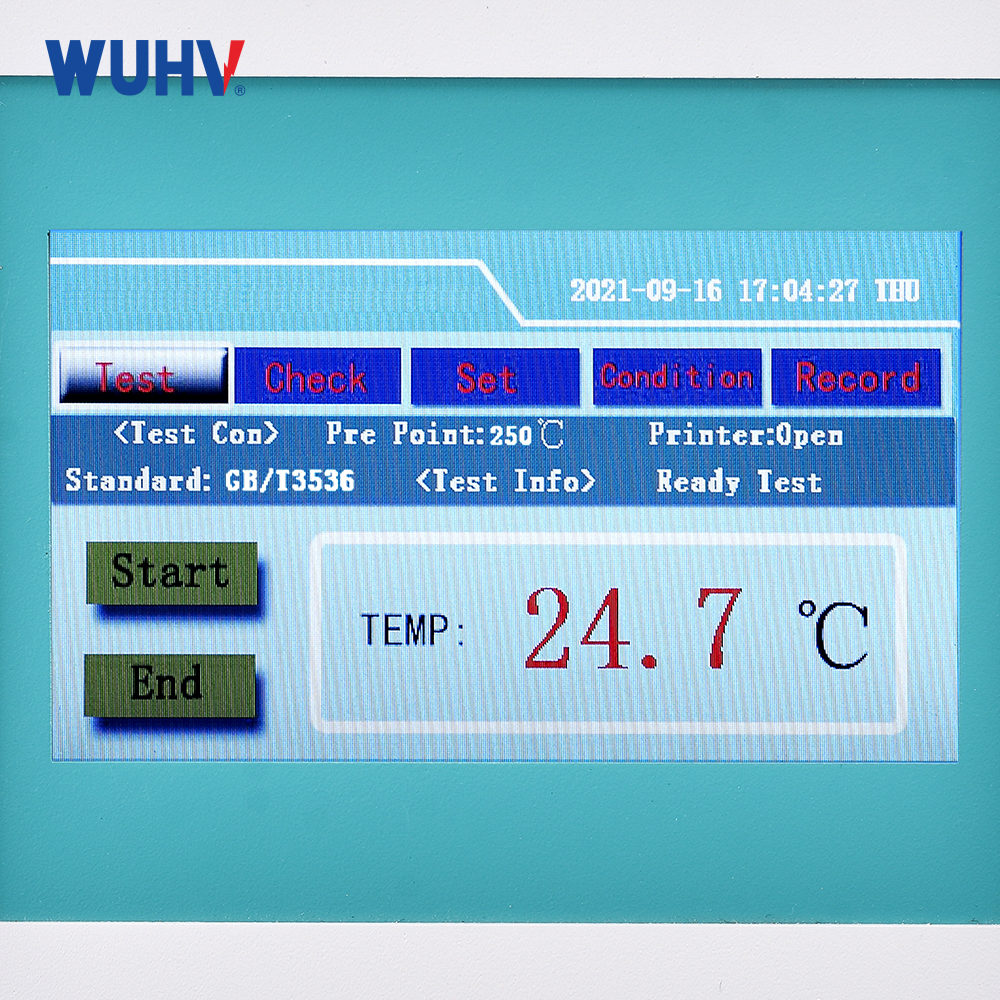

Display | color liquid crystal display |
Information storage | 1000 measurement results can be stored |
Ignition method | electric ignition |
Cooling method | forced air cooling |
Printer | dot matrix thermal printer |
Self-check function | lift bar, sweep bar, printing, etc. |
Work rate | ≤600VA |
Power supply | AC 220V±11V, frequency 50Hz±2.5Hz |
Environment temperature | 10~35℃ |
Environmental humidity | ≤90% |
Weight | about 17kg |

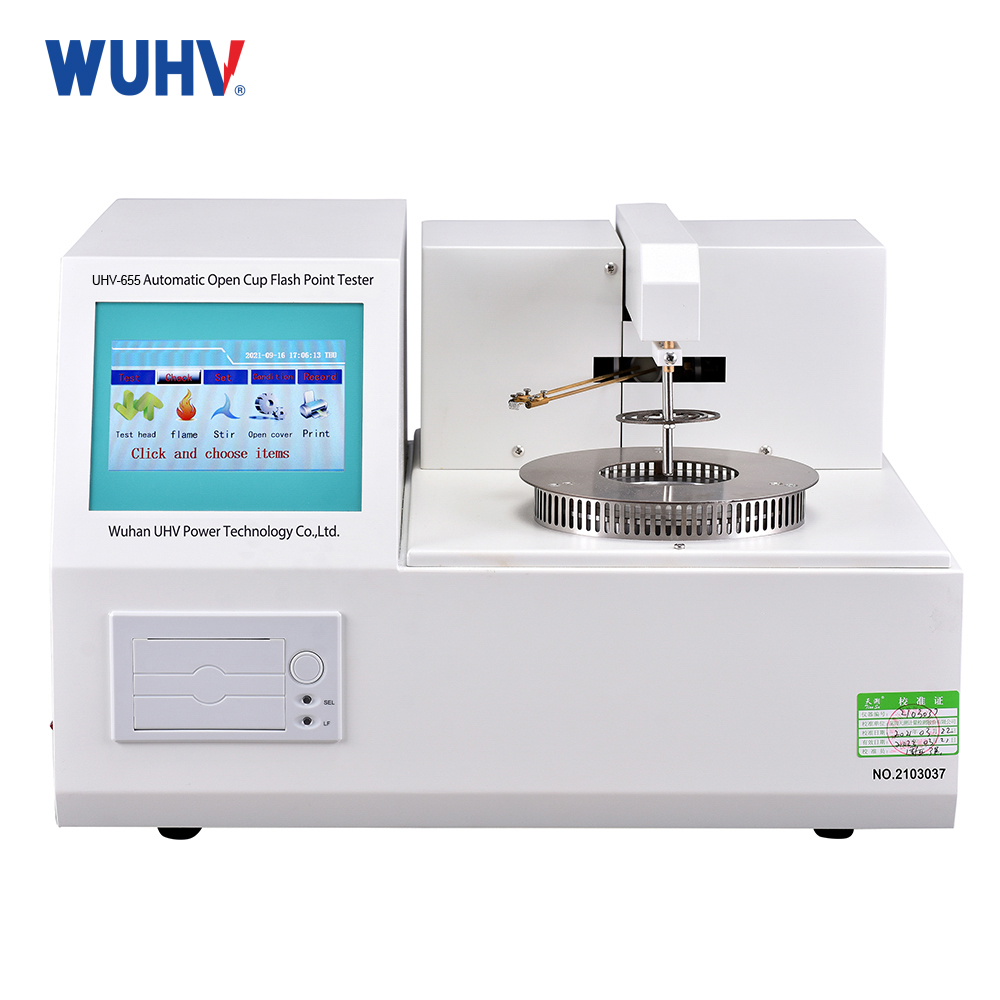

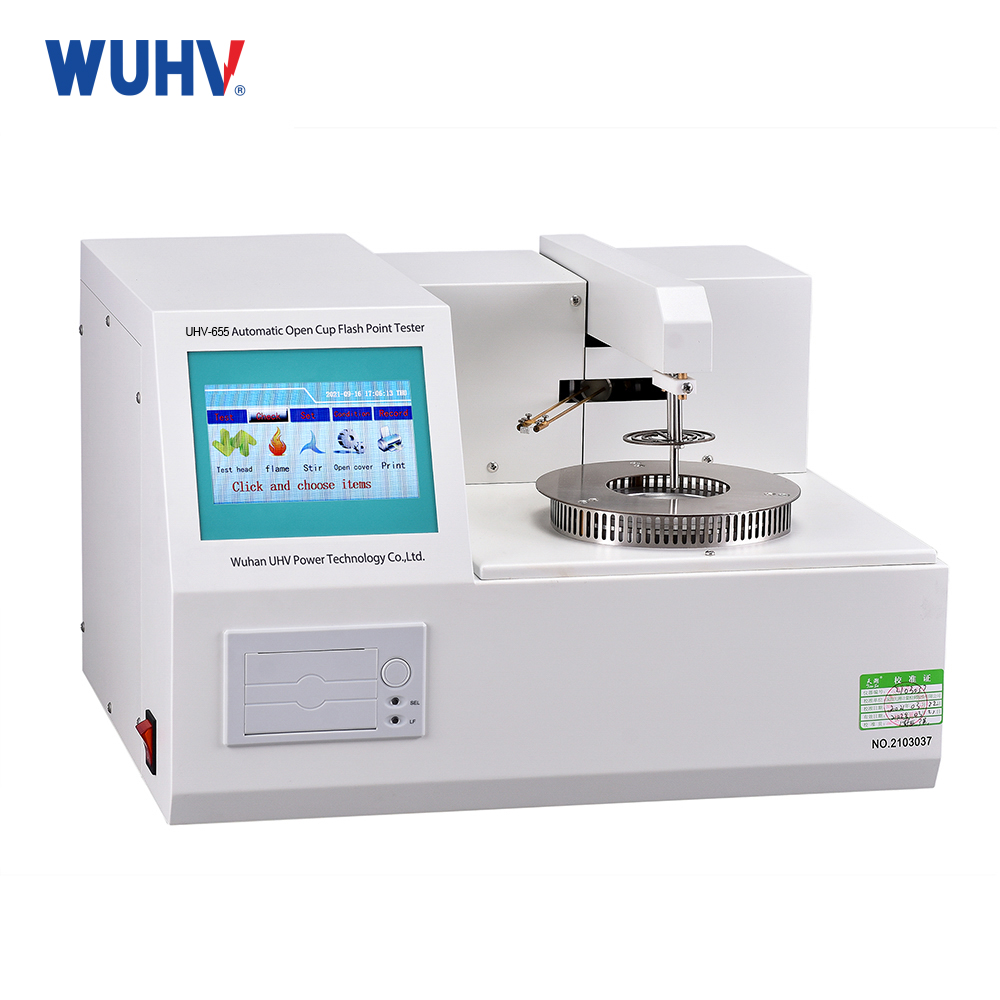

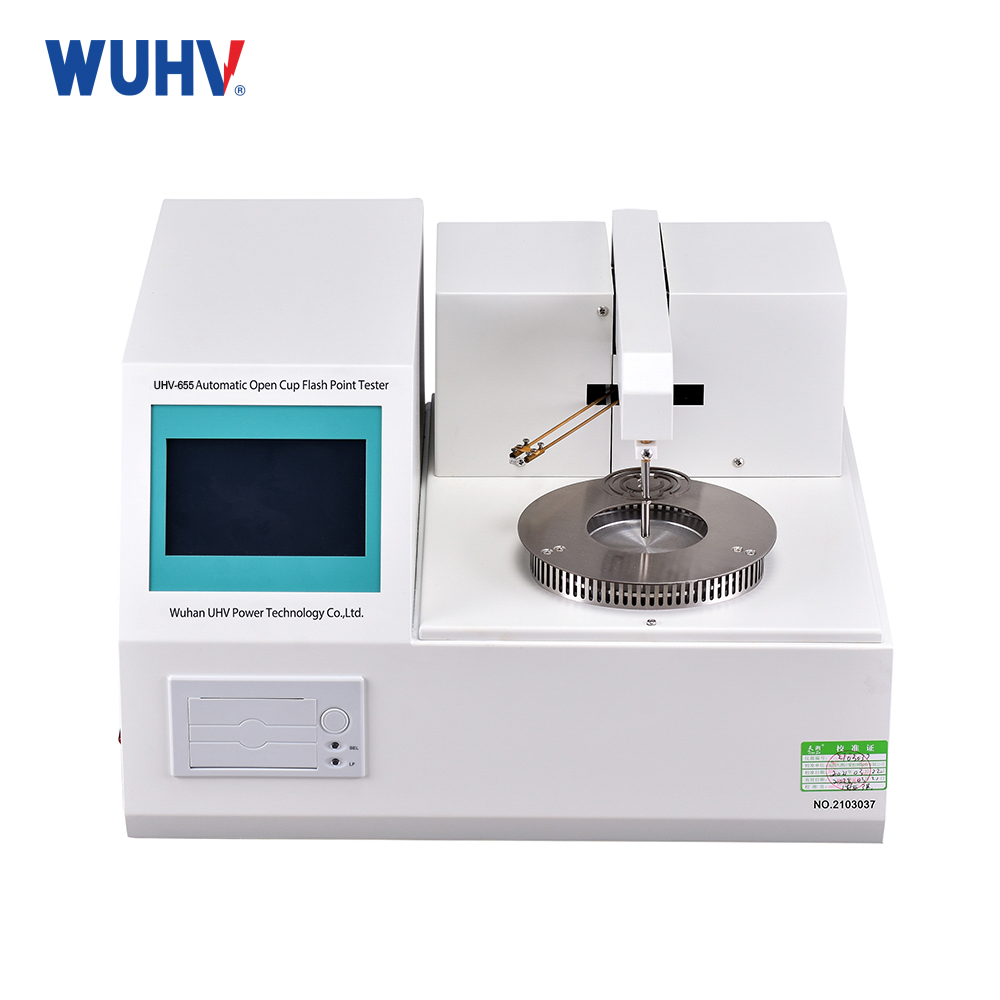

Nickname：Flash Point Analyzer，Open Cup Flash Point Analyzer，Open Cup Flash Point，oil flash point
Feature:
★Strong functions. It can detect the flash point and ignition point at the same time, and print the test results. It has a clock chip inside, which automatically displays the current date, time, and power-down retention.
★High precision. The temperature error is controlled within ±1.5℃, and the resolution is 0.1℃.
★Good repeatability. Under the condition that the test environment is in accordance with GB3536 (ASTM D92) or GB/T 267-88, the same sample is continuously tested, and the difference in flash point value between the two is ≤ 4℃.
★High degree of automation. It can automatically complete the test process, automatically cool down, and automatically prompt information.

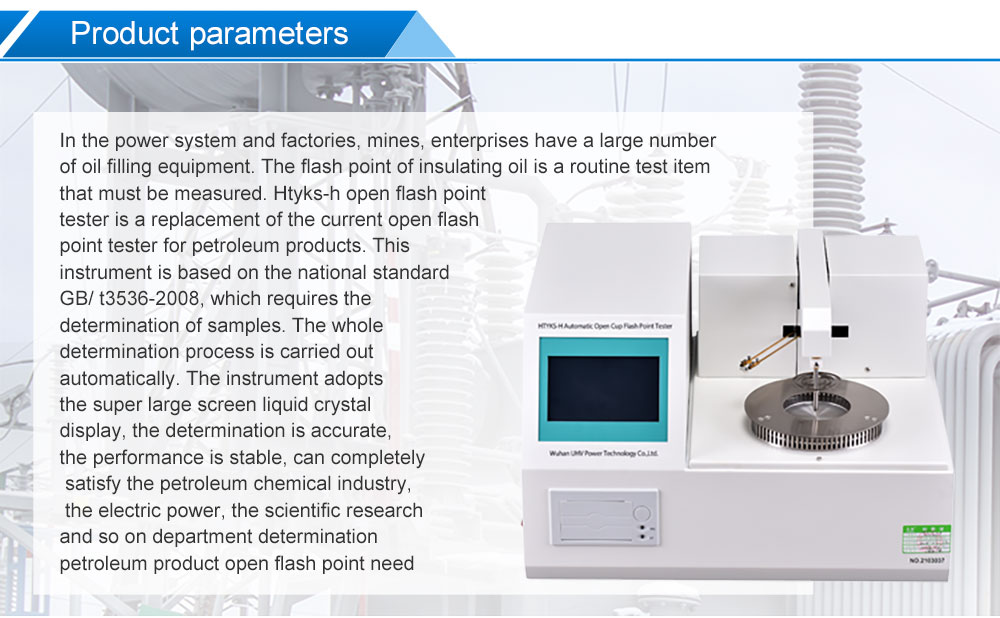

The function and performance of the open flash point tester are in line with the highest level at home and abroad. It is a special instrument for replacing imported products in petroleum, electric power, chemical, commodity inspection and other industries.
