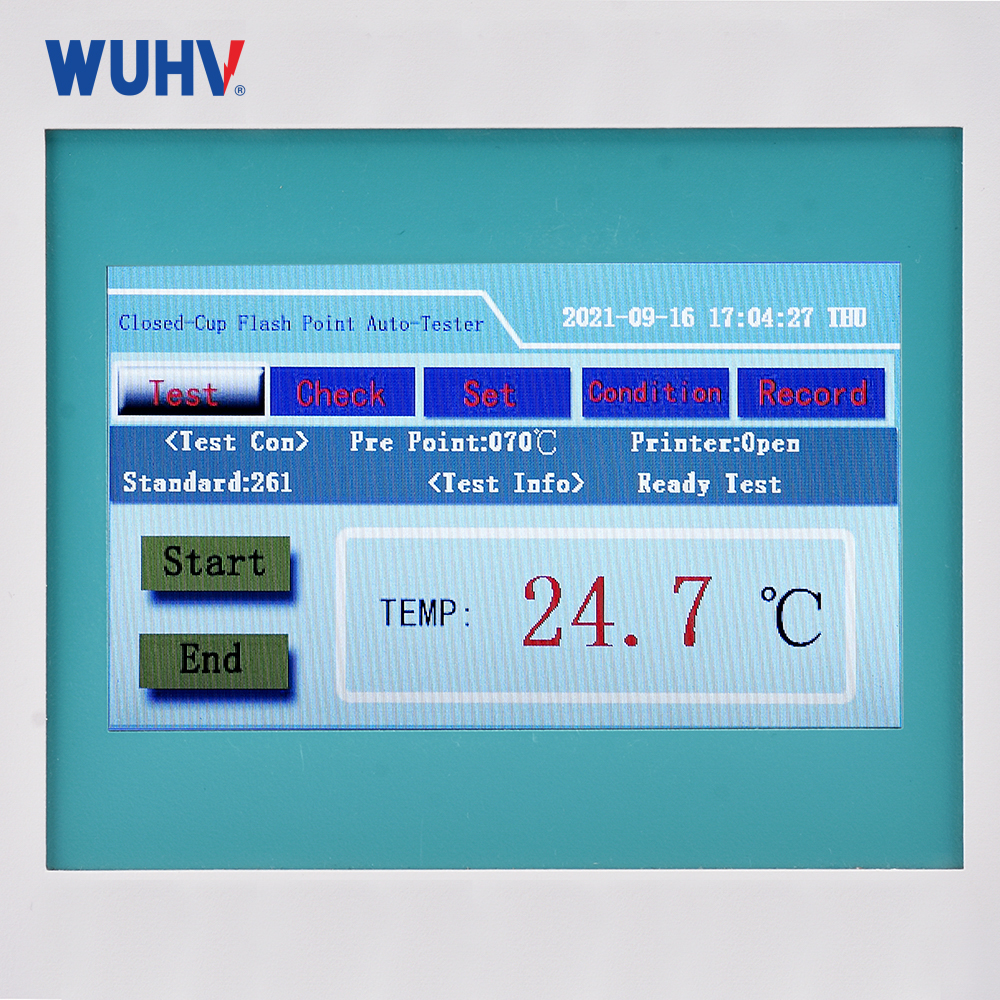

Display | color LCD display |
Operation mode | touch screen |
Measuring range | room temperature~350℃ |
Temperature detection | platinum resistance |
Repeatability | >110℃±2℃ ≤110℃±1℃ |
Ignition method | electric ignition |
Information storage | 1000 analysis results can be stored |
Cooling method | forced air cooling |
Printer | Thermal printer |
Standard | in line with ASTM D93 GB/T 261 standard |
Power source | AC 220V±11V, 50Hz±2.5HZ |
Work rate | ≤350VA |
Use environment temperature | 10℃~35℃ |
Use environment humidity | ≤85% |
Nickname：Flash Point Tester，closed cup flash point tester，automatic flash point，closed cup flash point，flash point
Feature:

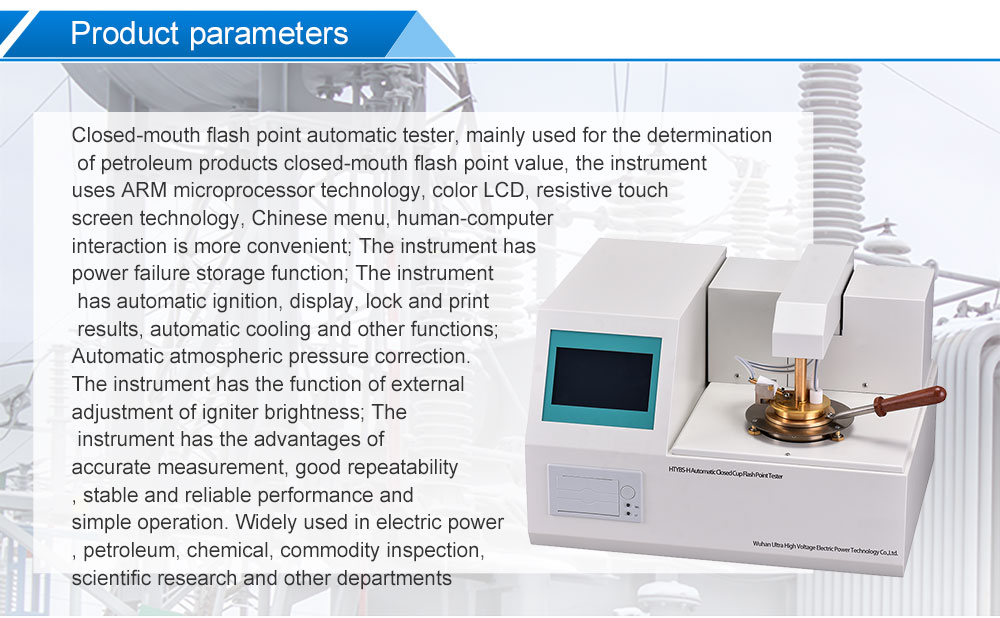

The instrument has functions such as automatic ignition, display, lock and print results, automatic cooling, etc.; atmospheric pressure is automatically corrected. The instrument has the function of externally adjusting the brightness of the igniter; the instrument has the advantages of accurate measurement, good repeatability, stable and reliable performance, and simple operation. It is widely used in electric power, petroleum, chemical, commodity inspection, scientific research and other departments, in line with ASTM D93, GB/T 261-2008 standard method requirements.
The instrument is heated in accordance with the heating curve specified in ASTM D93 and GB/T261-2008. It will automatically ignite when the temperature is close to the flash point value. When the flash point occurs, the instrument will automatically lock and display the printed result, and at the same time automatically cool the heater.
