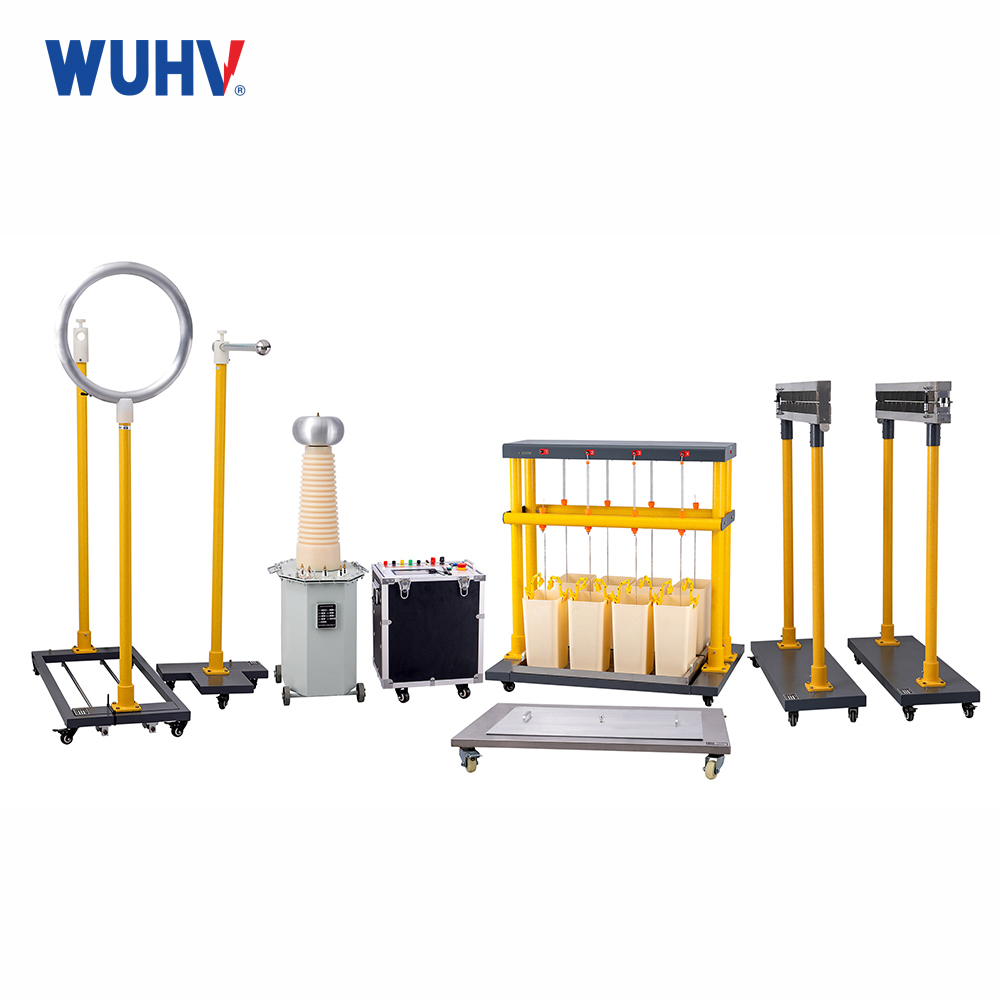

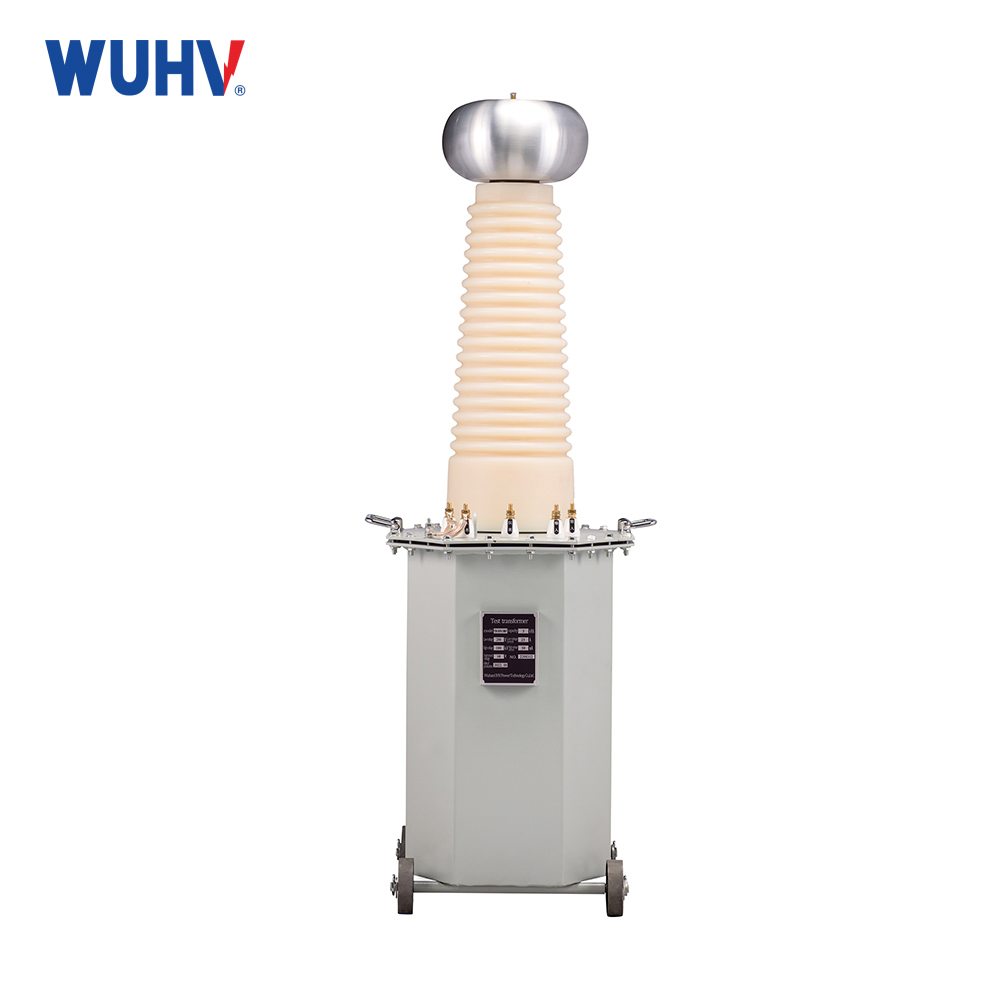

YDJ Oil-immersed High Voltage Test Transformer AC Hipot Tester

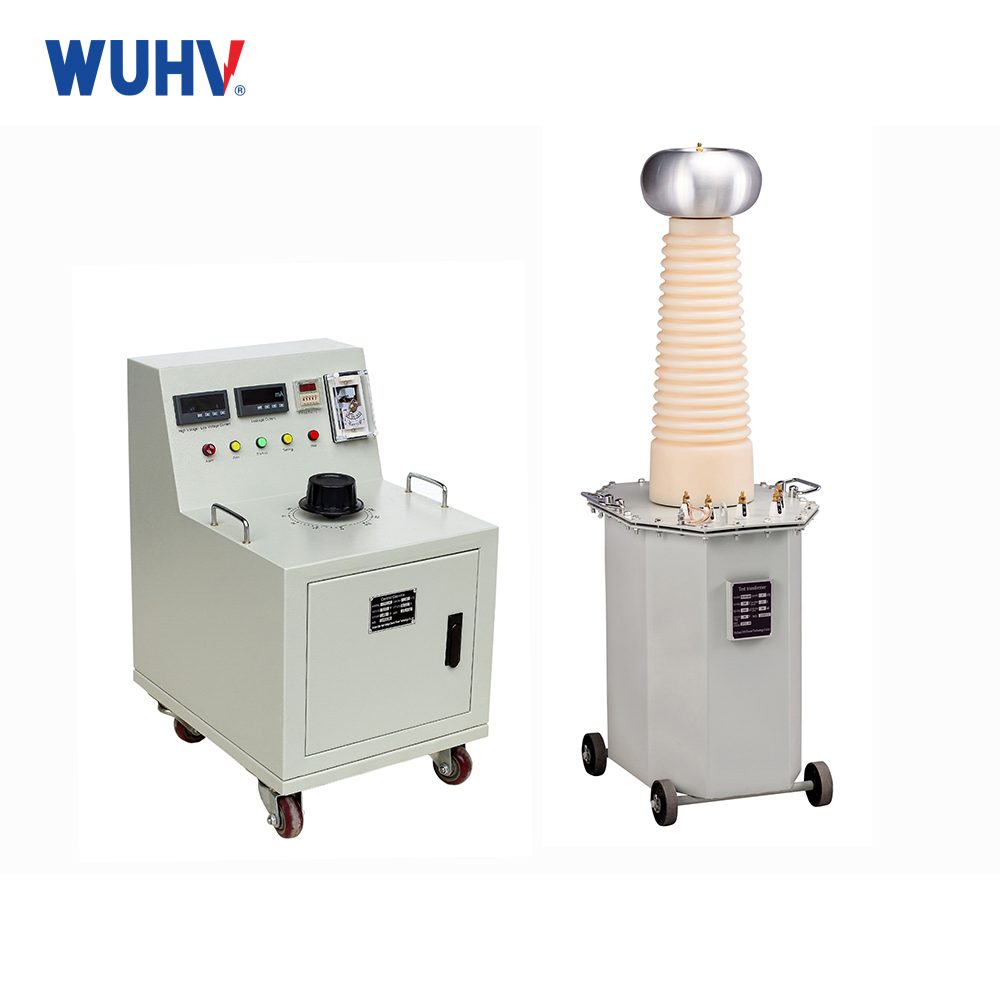

YDJ Series 50~300kV Oil Immersed Test Transformer is mainly composed by :Control box, Test Transformer etc. It can conduct the Power Frequency AC DC withstand voltage test for cable, electric components, Insulating material and can customize larger voltage level (kV) and capacity (KVA) etc.

Send Inquiry User Manual Calibration Certification

Product Details of YDJ Oil-immersed High Voltage Test Transformer AC Hipot Tester

Technical parameters

Model	Capacity (kVA)	High Voltage （kV）	High Current （mA)）	Low Voltage Input		Ratio	Temperature Rise℃ (30 mins)
Model	Capacity (kVA)	High Voltage （kV）	High Current （mA)）	Voltage (V)	Current (A)	Ratio	Temperature Rise℃ (30 mins)
YDJ-1.5/50	1.5	50	30	200	7.5	500	10
YDJ-3/50	3	50	60	200	15	500	10
YDJ-5/50	5	50	100	200	25	500	10
YDJ-10/50	10	50	200	200	50	500	10
YDJ-20/50	20	50	400	380	53	500	10
YDJ-30/50	30	50	600	380	79	500	10
YDJ-50/50	50	50	1000	380	12	500	10
YDJ-5/100	5	100	50	200	25	1000	10
YDJ-10/100	10	100	100	200	50	1000	10
YDJ-20/100	20	100	200	380	53	1000	10
YDJ-30/100	30	100	300	380	79	1000	10
YDJ-50/100	50	100	500	380	132	1000	10
YDJ-20/150	20	150	133	380	53	1000	10
YDJ-30/150	30	150	200	380	80	1000	10
YDJ-50/150	50	150	333	380	132	1000	10
YDJ-100/150	100	150	667	380	263	1000	10
YDJ-50/200	50	200	250	380	132	1000	10
YDJ-100/200	100	200	500	380	263	1000	10
YDJ-150/200	150	200	750	380	395	1000	10
YDJ-200/200	200	200	1000	380	526	1000	10
YDJ-300/200	300	200	1500	380	790	1000	10
YDJ-50/300	50	300	170	380	132	1000	10
YDJ-100/300	100	300	333	380	263	1000	10
YDJ-150/300	150	300	500	380	395	1000	10
YDJ-200/300	200	300	667	380	526	1000	10
YDJ-300/300	300	300	3000	380	790	1000	10

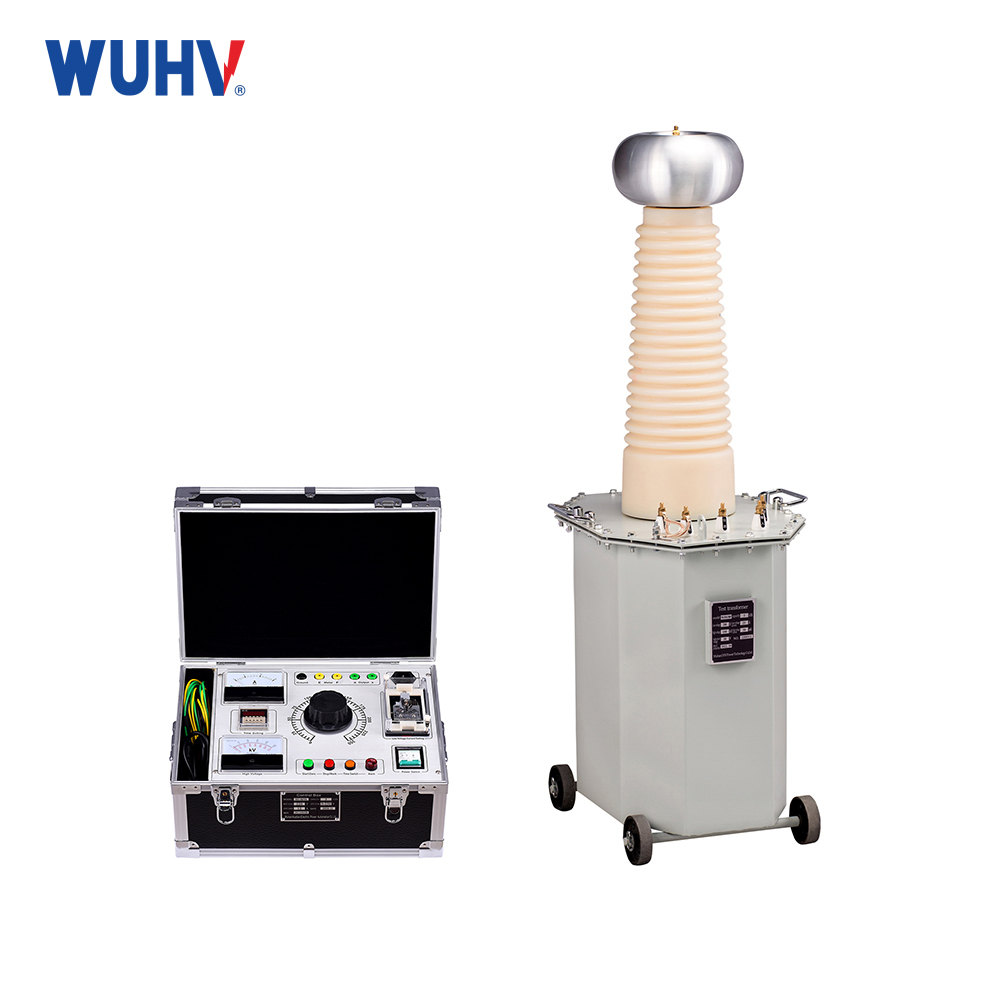

For Control Box

Technical parameters

Temperature	0～40℃
Altitude	< 2000m
Relative humidity	< 85%

Main Specifications

Model	Capacity	Power			Output		Operation	Weight	Remark
Model	Capacity	Phase	(V)	(A)	(V)	(A)	Operation	Weight	Remark
XC-3/220	3	1	220	50	0-220	15	Manual	16
XC-5/220	5	1	220	50	0-220	25	Manual	18
TC-10/220	10	1	220	50	0-220	50	Manual	80
TC-15/400	15	2	380	50	0-430	60.5	Manual	90
TC-20/400	20	2	380	50	0-430	50	Manual	100
TC-25/400	25	2	380	50	0-430	62.5	Manual	120
TC-30/400	30	2	380	50	0-430	75	Manual	140
TC-50/400	50	2	380	50	0-430	125	Manual electric	160
TC-100/400	100	2	380	50	0-430	250	Manual electric	50	External regulator

Nickname: Hipot Tester; high voltage test transformer

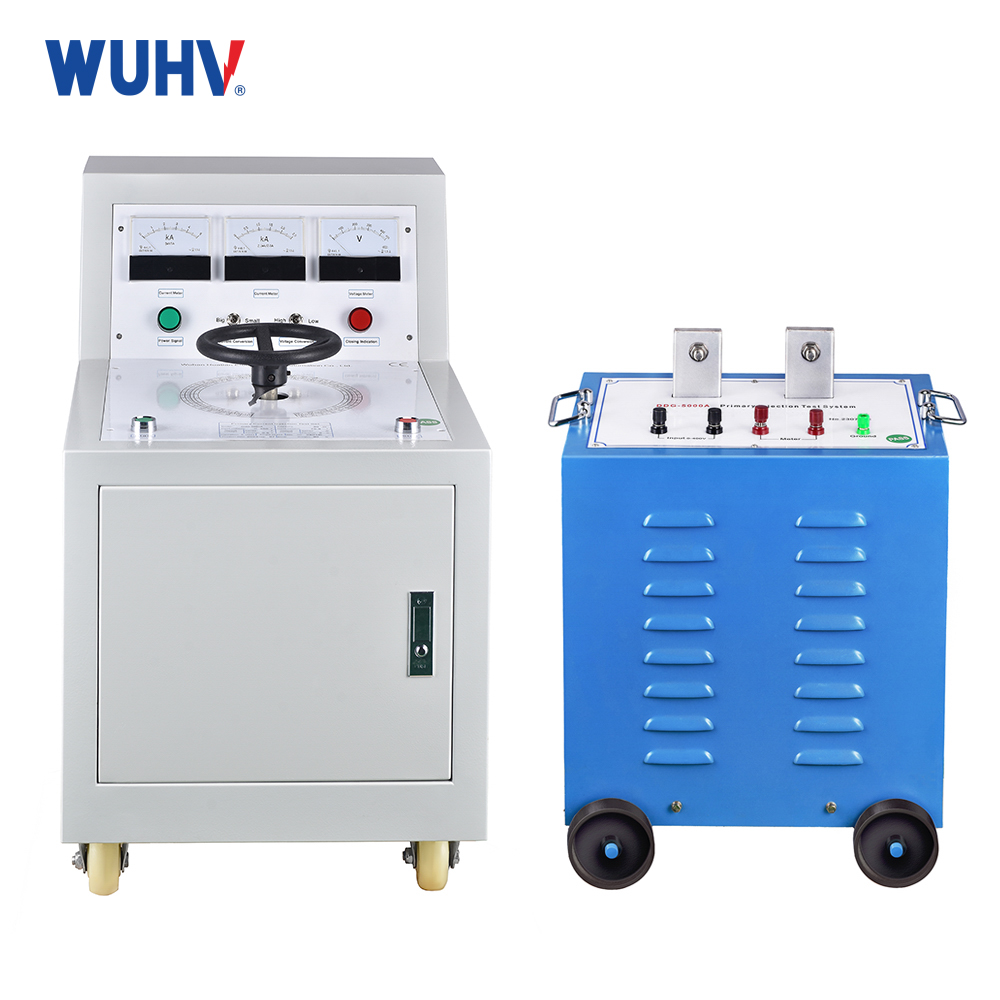

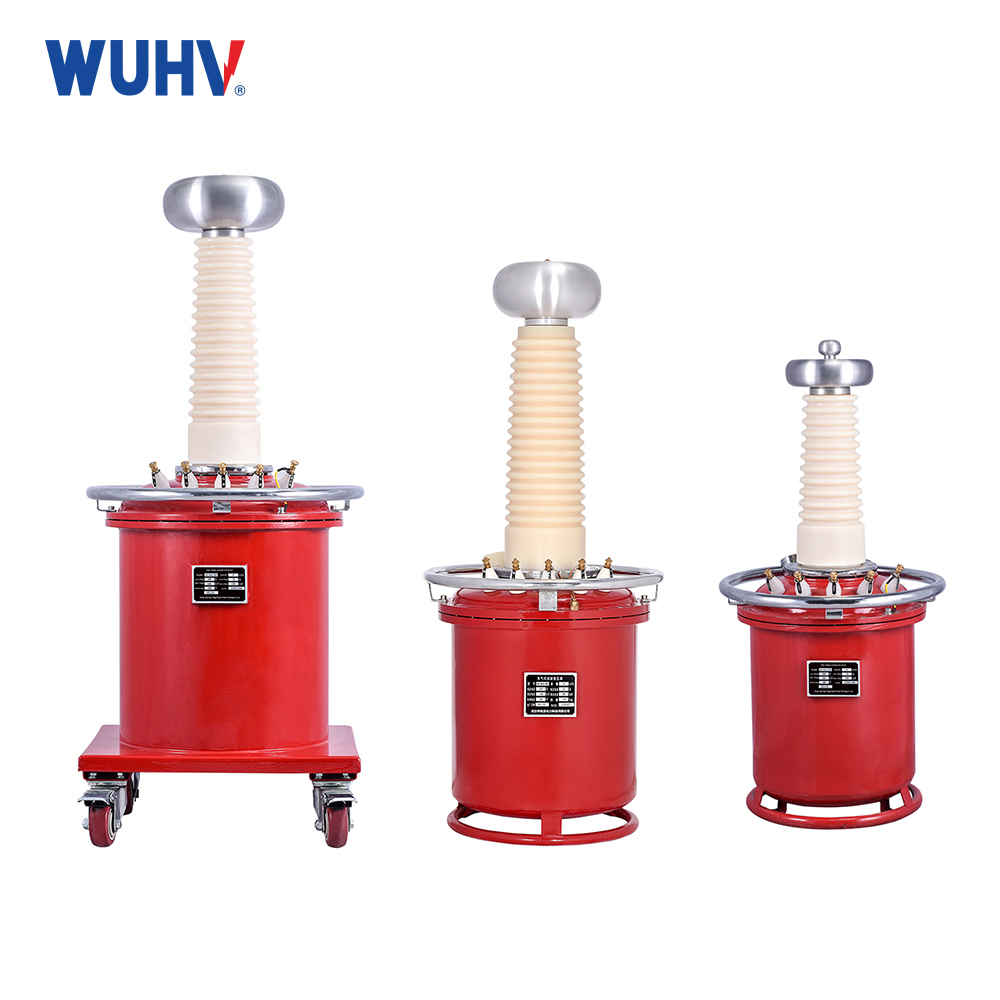

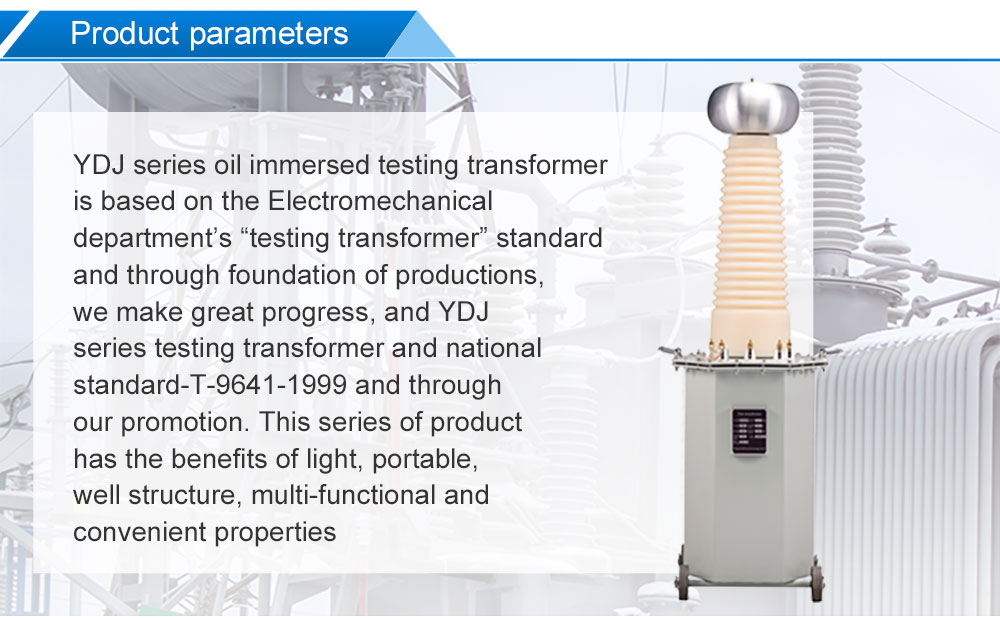

AC Hipot Tester _02

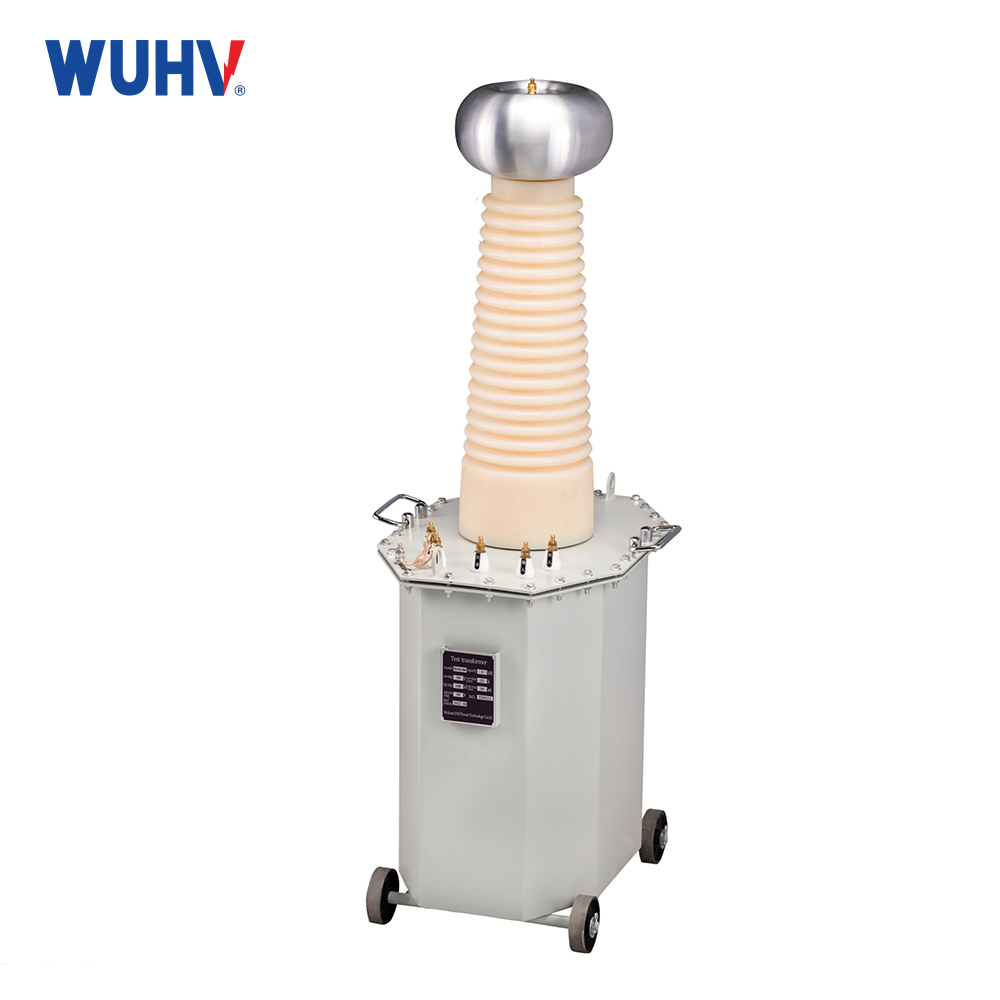

AC Hipot Tester _03

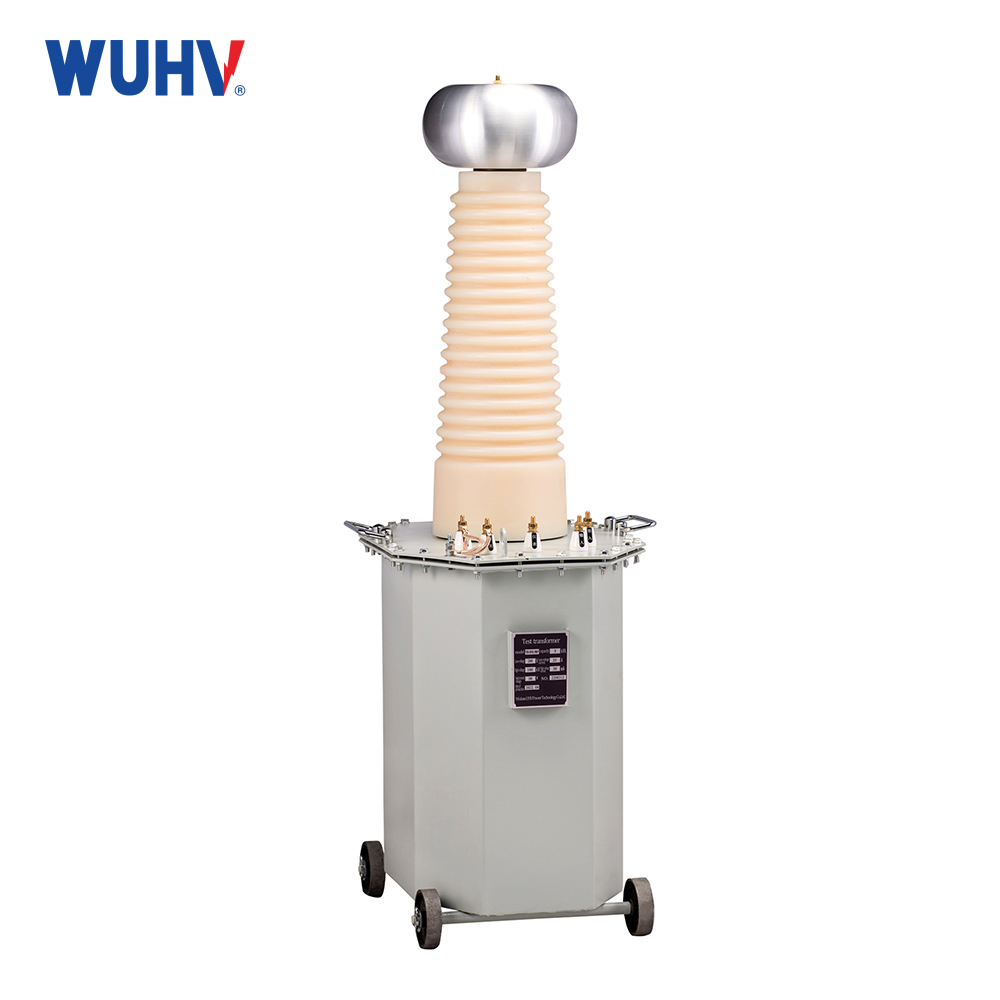

AC Hipot Tester _05
