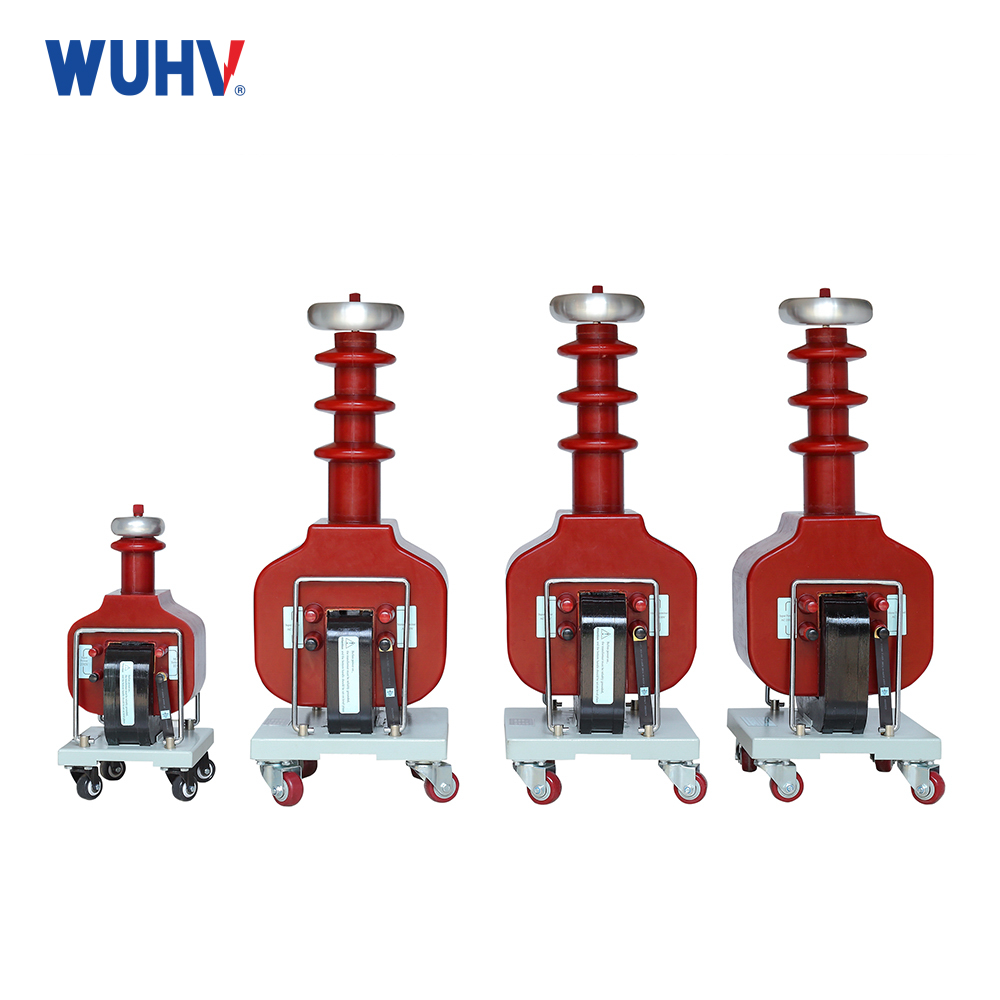

Technical parameters
Impedance voltage | ≤12% |
Output voltage waveform | sine wave |
Surface temperature rise | ＜55℃ |
No-load current | ＜4% |
Model | Capacity | Input voltage | Output voltage | Output current | Output DC high voltage | Weight |
(kVA) | (V) | (kV) | (mA) | (kV) | (kg) | |
1.5/50 | 1.5 | 200 or 400 | 50 | 30 | 70 | 15 |
3/50 | 3 | 60 | 20 | |||
5/50 | 5 | 100 | 30 | |||
10/50 | 10 | 200 | 40 | |||
15/50 | 15 | 300 | 50 | |||
20/50 | 20 | 400 | 55 | |||
25/50 | 25 | 500 | 60 | |||
30/50 | 30 | 600 | 65 | |||
5/100 | 5 | 200 or 400 | 100 | 50 | 140 | 60 |
10/100 | 10 | 100 | 65 | |||
15/100 | 15 | 150 | 70 | |||
20/100 | 20 | 200 | 75 | |||
25/100 | 25 | 250 | 80 | |||
15/120 | 15 | 120 | 125 | 85 | ||
20/120 | 20 | 160 | 90 | |||
25/120 | 25 | 200 | 95 | |||
30/120 | 30 | 250 | 100 |
For Control Box
Temperature | 0～40℃ |
Altitude | < 2000m |
Relative humidity | < 85% |
Main Specifications
Model | Capacity | Power | Output | Operation | Weight | Remark | |||
Phase | (V) | (A) | (V) | (A) | |||||
XC-3/220 | 3 | 1 | 220 | 50 | 0-220 | 15 | Manual | 16 | |
XC-5/220 | 5 | 1 | 220 | 50 | 0-220 | 25 | Manual | 18 | |
TC-10/220 | 10 | 1 | 220 | 50 | 0-220 | 50 | Manual | 80 | |
TC-15/400 | 15 | 2 | 380 | 50 | 0-430 | 60.5 | Manual | 90 | |
TC-20/400 | 20 | 2 | 380 | 50 | 0-430 | 50 | Manual | 100 | |
TC-25/400 | 25 | 2 | 380 | 50 | 0-430 | 62.5 | Manual | 120 | |
TC-30/400 | 30 | 2 | 380 | 50 | 0-430 | 75 | Manual | 140 | |
TC-50/400 | 50 | 2 | 380 | 50 | 0-430 | 125 | Manual electric | 160 | |
TC-100/400 | 100 | 2 | 380 | 50 | 0-430 | 250 | 50 | External regulator | |

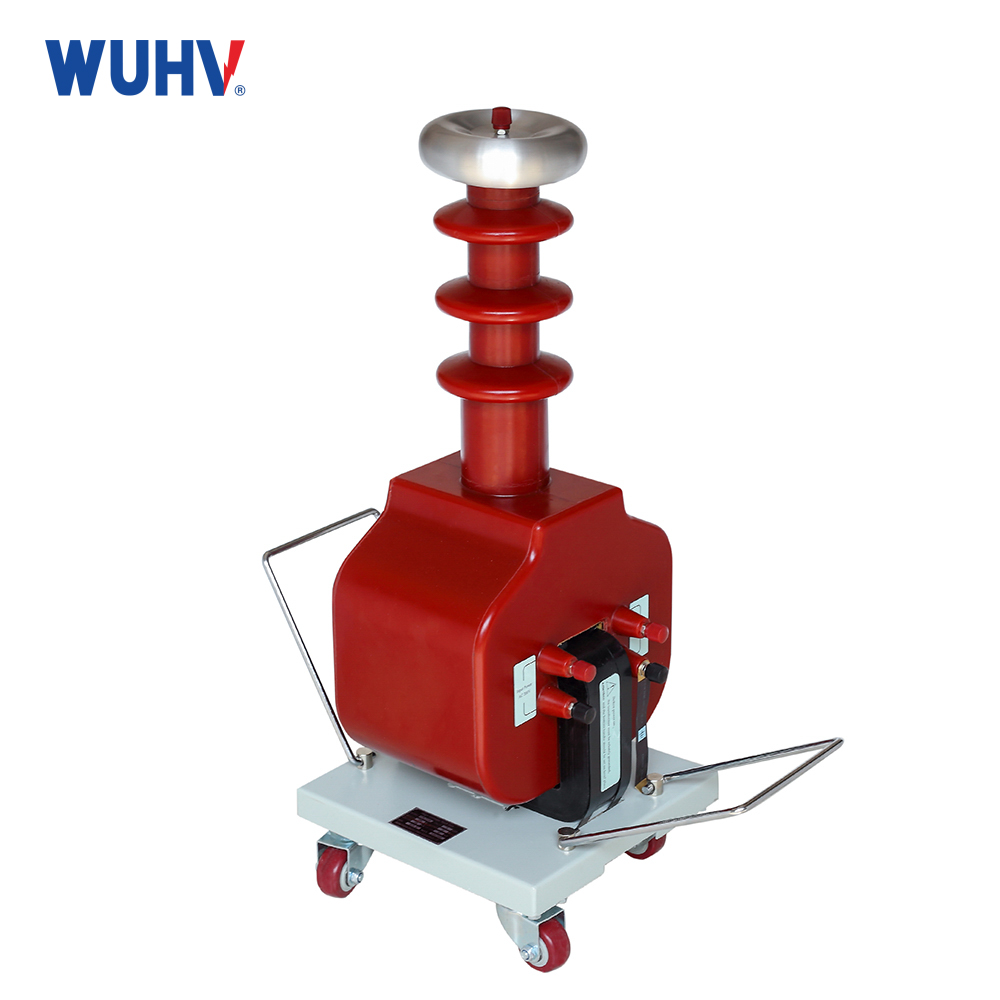

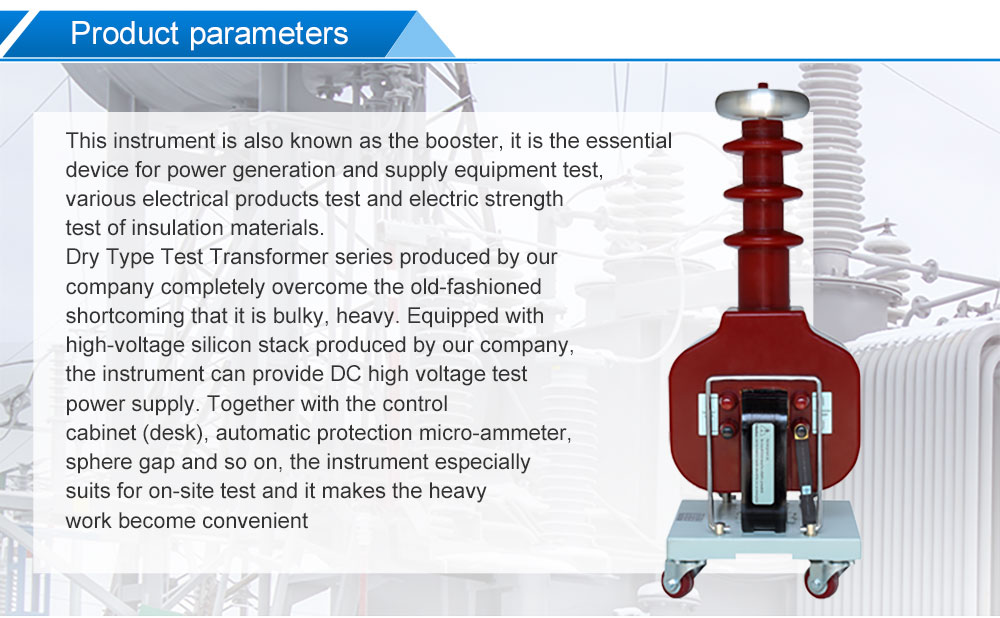

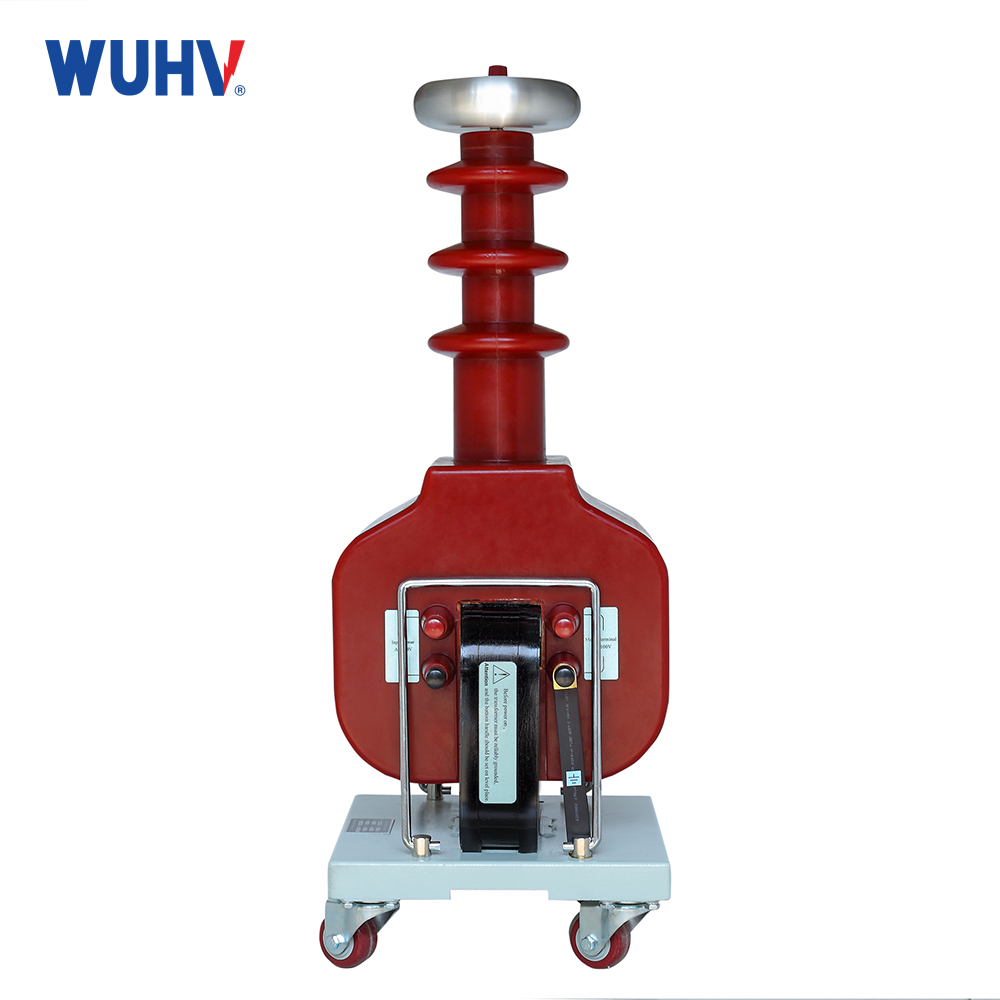

Nickname: AC Hipot Tester; hipot test kit; AC Hipot

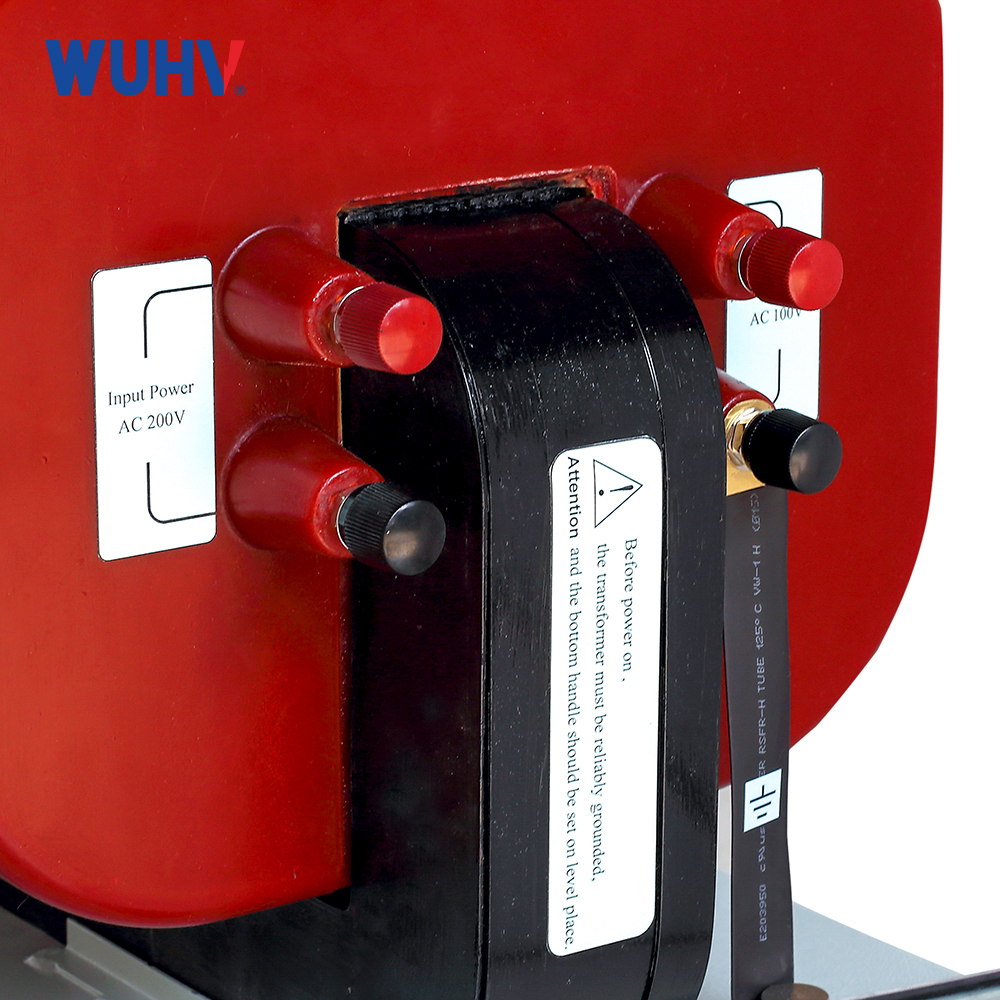

Feature:
1．High voltage test transformer has excellent material selection，reliable quality，good stability
2．Large voltage margin，Corona ring small，Bureau of dropping
3．New insulation materials are used，small in size，Light weight
