Technical parameters
The equipment capacity is designed based on 5-minute short-term work system. For intermittent work, working time should be less than 2.5 minutes, before continuing to work it should be shut down for 10 minutes so that all parts of the machine can cool down. Specifications and technical parameters as follow:
Model | Capacity (KVA) | Junior Range | Secondary Range
| dimensions (mm) L×W×H | Weight (KG) | Structural Style | ||
V1 | A1 | V2 | A2 | |||||
DDG-500 | 3 | 220 | 15 | 6 | 500 | 430×338×550 | 45 | Integrated structure |
DDG-1000 | 6 | 220 | 27 | 6 | 1000 | 500×380×600 | 65 | Integrated structure |
DDG- 2000 | 12 | 380 | 31.6 | 6 | 2000 | 580×400×750 | 105 | Integrated structure |
DDG- 2500 | 15 | 380 | 39.5 | 6 | 2500 | 600×430×790 | 145 | Integrated structure |
DDG- 3000 | 18 | 380 | 47 | 6 | 3000 | 630×440×810 | 170 | Integrated structure |

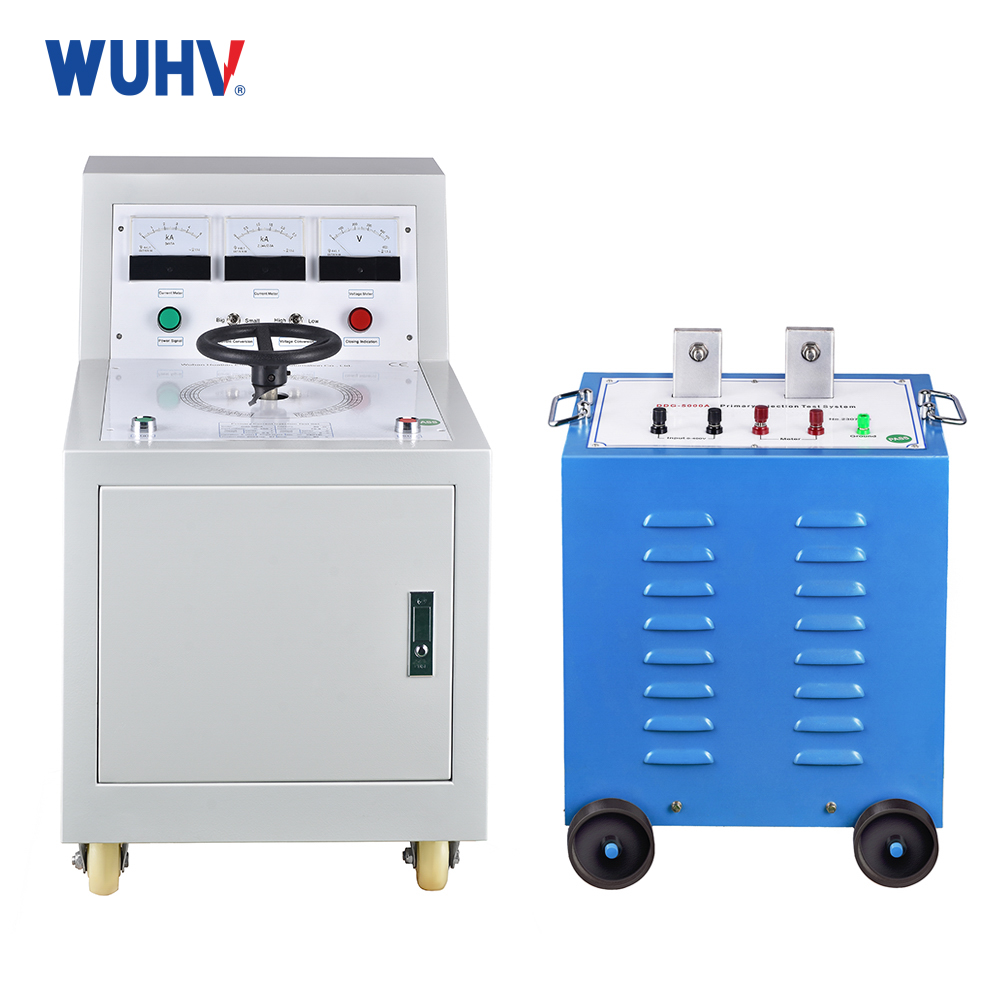

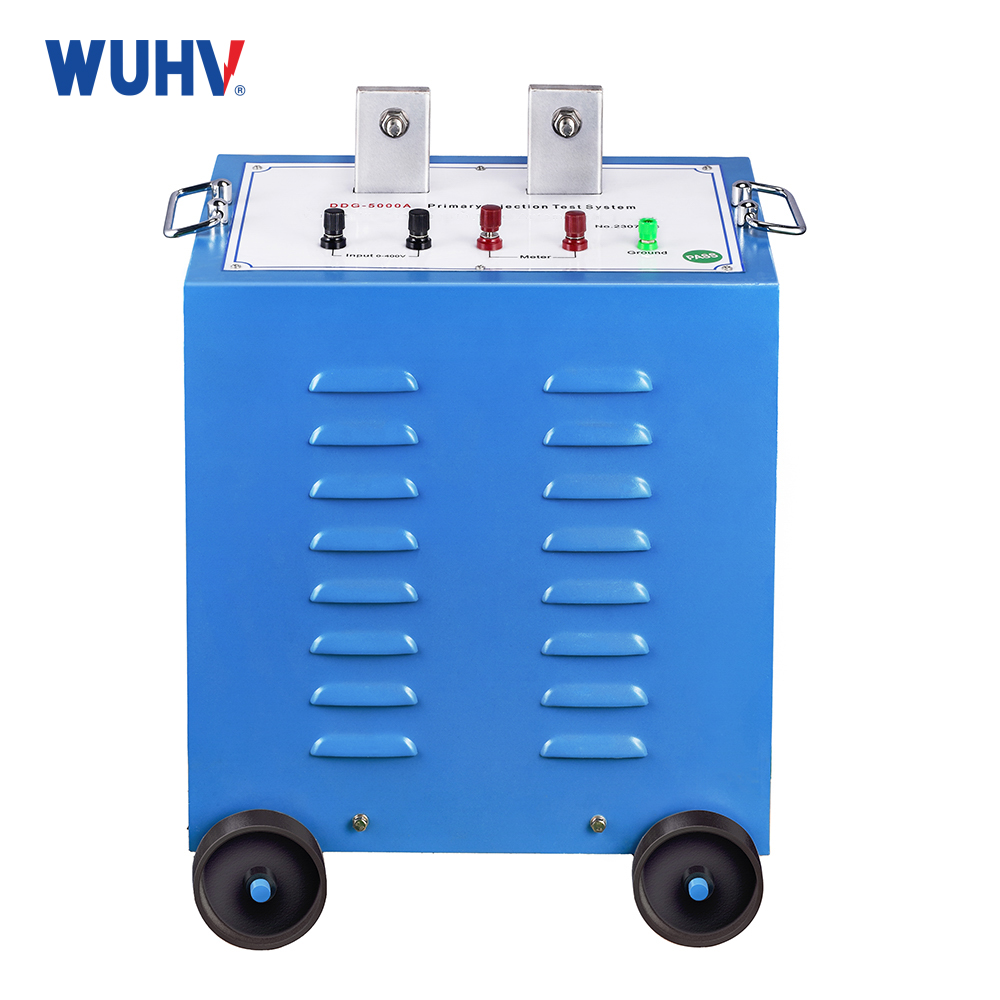

DDG- 4000 | 24 | 380 | 63 | 6 | 4000 | 640×450×820 | 180 | Integrated structure/ split Structure |
DDG- 5000 | 30 | 380 | 79 | 6 | 5000 | 600×430×900 300×500×500 | 145 135 | Split Structure |
DDG- 6000 | 36 | 380 | 95 | 6 | 6000 | 600×430×900 300×500×500 | 150 140 | Split Structure |
DDG- 8000 | 48 | 380 | 126 | 6 | 8000 | 600×450×950 350×550×550 | 180 | Split Structure |
DDG- 10000 | 60 | 380 | 158 | 6 | 10000 | 800×600×1100 380×550×600 | 200 | Split Structure |

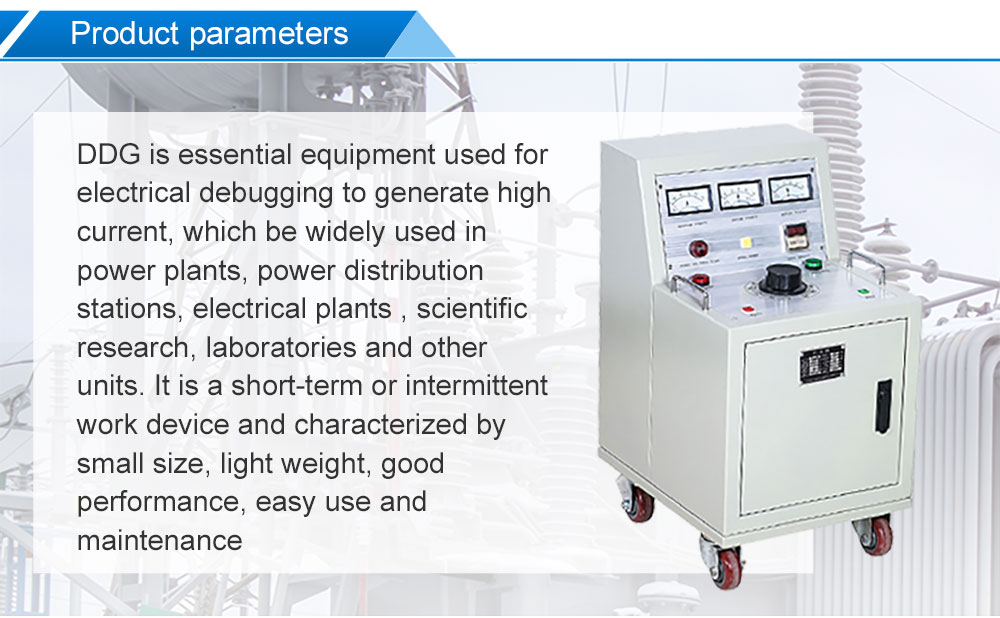

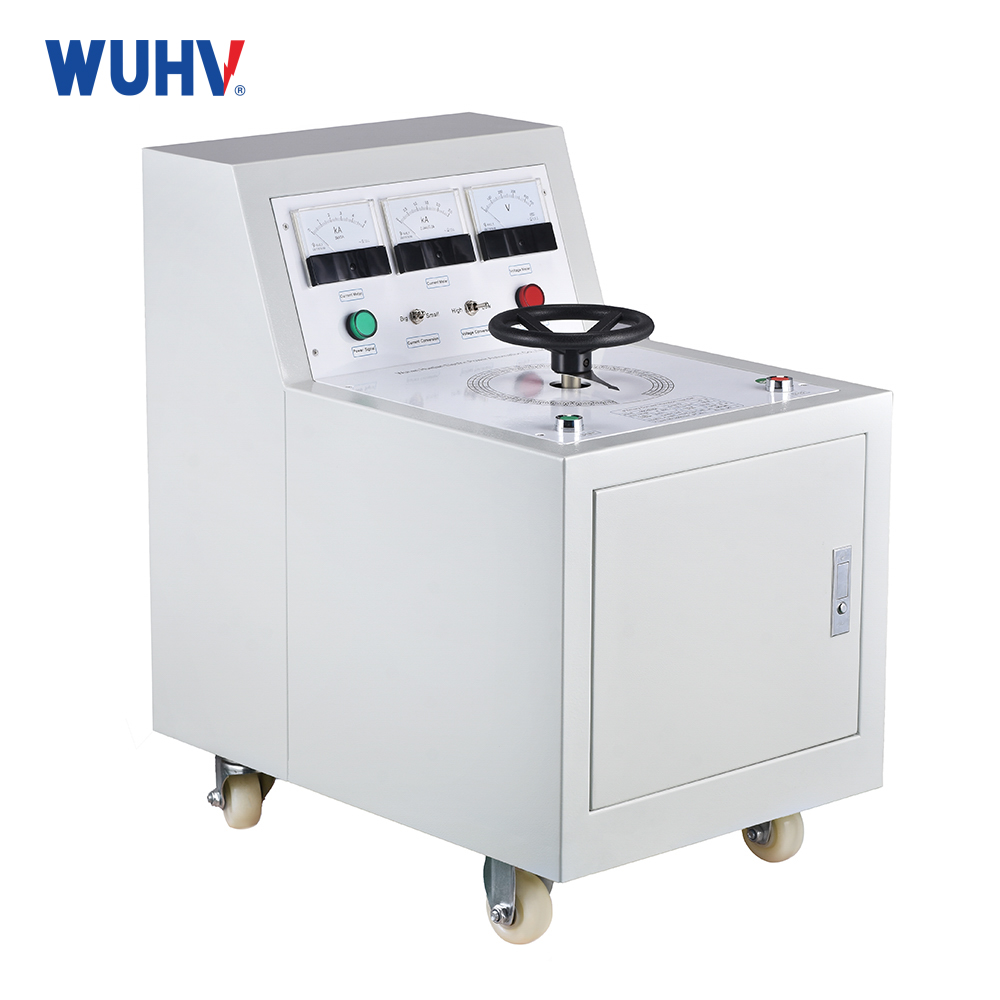

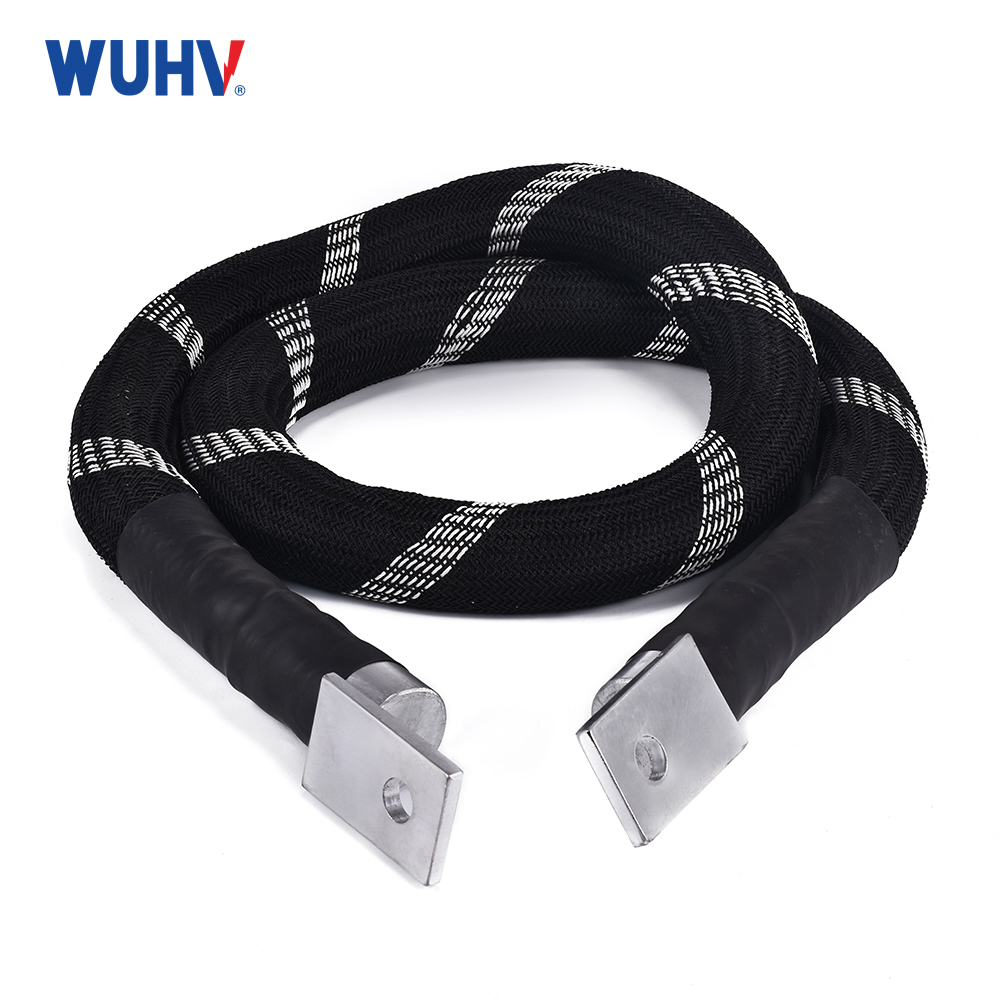

Nickname: Primary Injection; primary current injection test; High Current Generator; primary current injector
Feature:

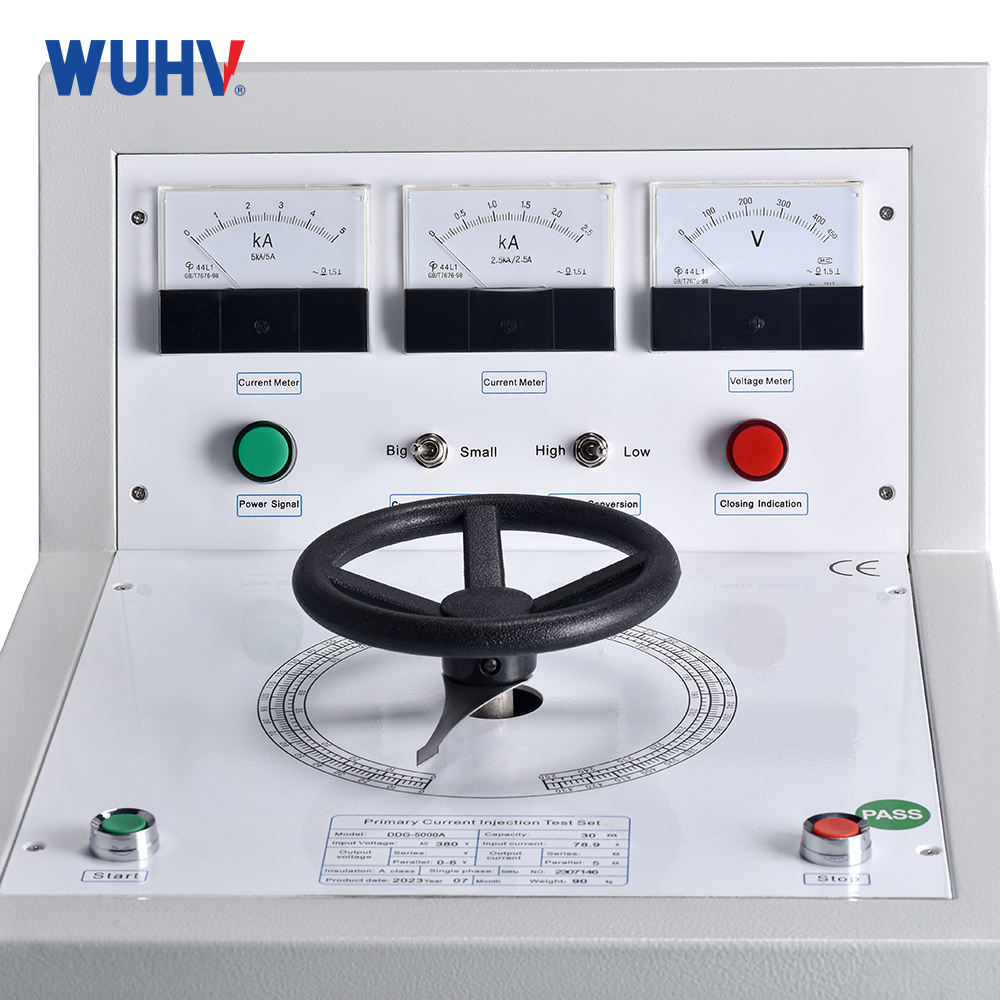

1. Two ammeters, can supervise different measurement range.
2. Auto transformer adjusts freely.
3. With indicator lighting and button, easy to operate.
4. Incorporated and dividable structure, easy to move.
