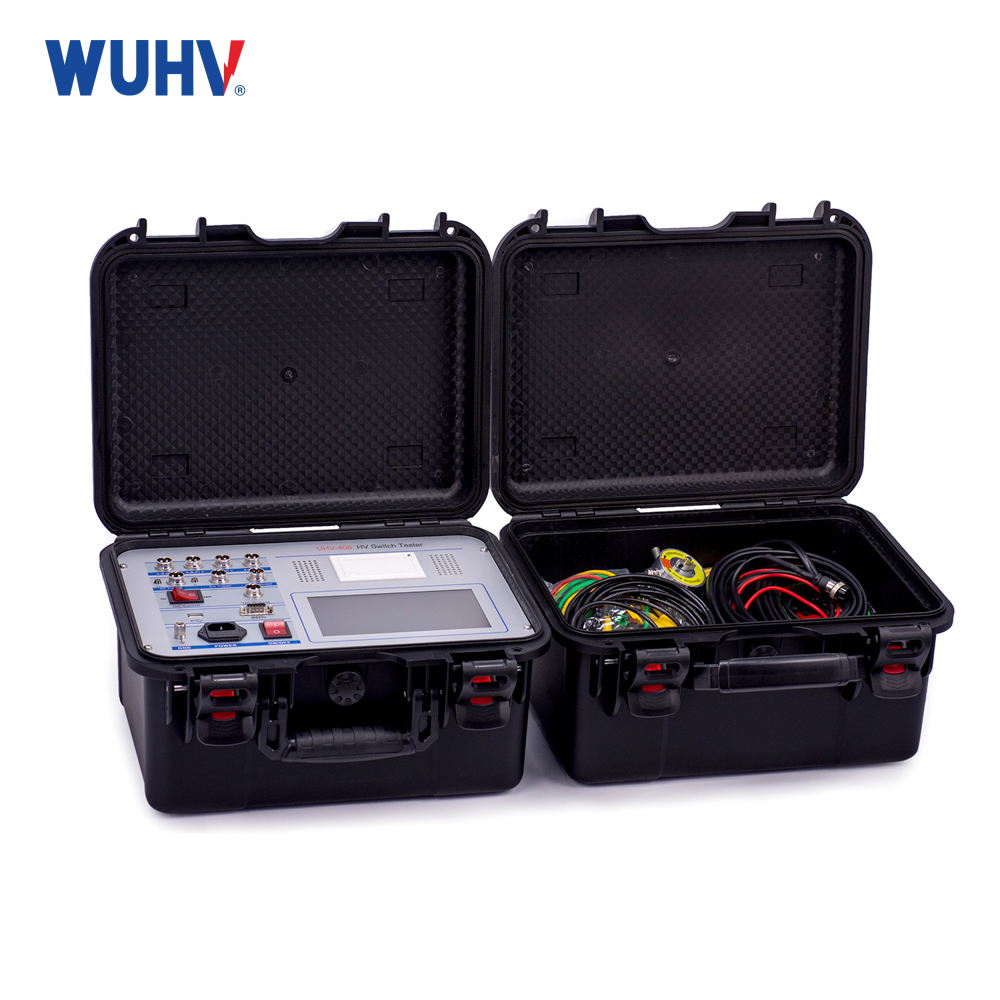

Introduction
With the development of society, the electricity security is required to be more by people, high voltage circuit breaker burdens the dual-control and protection in electric system, whose performance relates to the operation of electric system. mechanic parameter is one of indispensable parameter in analyzing the performance of breaker. The comprehensive characteristic tester of high-voltage switch , namely, the mechanic characteristic tester, is according to the latest version of < high-voltage AC circuit breaker> GB1984-2003 as design model, referring to the third part of PRC's power industry standards <Genera technical specifications for high voltage test equipment>, and designing based on DL/T846.3-2004, which inspect various grades of voltages in high-voltage circuit breaker' s mechanic dynamic characteristic parameters about oil lack, oil excess, vacuum and sulfur hexafluoride, to provide convenience to many kinds of breakers.
Technical Parameters
Time measurement: | 12 natural switching (closing) time |
The opening (closing) phase is not at the same time | |
The difference between different periods of switching (closing) | |
Closing (opening) Bouncing time (number of bounces) | |
Internal trigger test range: 1ms ~ 10000ms, resolution: 0.01ms, | |
External trigger test range: 1ms ~ 10000ms, | |
Resolution within 999ms: 0.01ms,1000-9999ms: 0.1ms, and over 10000ms: 1ms. | |
Accuracy within 200ms: 0.05%± 0.1ms | |
velocity measurement: | instant separating (instant closing) velocity |
Appointed time slot (stroke segment or angle segment) average | |
velocity | |
velocity measurement range: | 0.1mm sensor 0.01～20.00m/s, |
345°angle sensor 1 cycle/ 0.01° | |
Travel measurement: | Travel of moving contact (travel) |
Contact stroke (open distance) | |
Over travel | |
Overshoot or rebound stroke | |
Measuring range: linear sensor: | 50mm, measuring range: 0-50mm, resolution :0.1mm. |
Optional 100-1000mm linear sensor of any length. | |
Encoder: 345° Rotate sensor, measurement | |
range: 0-1000mm, resolution :0.1о. | |
Current resistance range: | the maximum current 30 A, resolution: 0.01 A, 1000 Ω resistance, resolution: 0.01 Ω. |
Instrument power supply: | AC 220V ± 10%; 50 hz plus or minus 10% |
Dc power output: | continuously adjustable DC20 ~ 270V, DC220V≤20A (short time), Power: 4400W. |
External trigger voltage: | AC/DC10-300V, current ≤120A |
Disconnecting switch measurement range | (1) Voltage output: DC20～270V(adjustable) |
(2) Current output time: 0.01~10 s (settable) | |
(3) Fracture signal maximum acquisition time: 10s | |
(4) Measurable fracture closing, separation time, three-phase a synchronism, bounce time and frequency. | |
Mainframe volume: | 360×260×170mm |
Operating environment: | -20℃~+50℃ |
Relative humidity: | ≤90% |
The Circuit Breaker Analyzer is proudly made in China, stands as a testament to our commitment to excellence in high voltage testing. As a professional supplier, we offer cutting-edge technology and precision engineering to ensure accurate analysis of circuit breaker performance. With our comprehensive solutions, we empower industries with reliable testing capabilities, setting new standards for efficiency and safety.
Nickname:High-voltage switch mechanical performance tester, switch mechanical performance tester, high-voltage switch comprehensive tester, circuit breaker analyzer, circuit breaker tester, CB Analyzer, high-voltage switching time performance tester, high-voltage switch performance tester , switch characteristic tester, switch tester, switch parameter tester. Switch timing tester ,High voltage switch tester , Circuit breaker parameter tester
Feature
(1) Suitable for domestic and foreign production of SF6 switch, GIS combination electrical appliances, vacuum switch, oil switch, vacuum contactor, special circuit breaker (train circuit breaker). At the same time, 12 metal contact fractures, 6 main fractures and 6 auxiliary fractures can be measured. The circuit breaker is operated once, and the data and waveform such as time, bounce number and time, speed, coil current and coil resistance are obtained. With energy storage, automatic and manual low jump test, circuit breaker life test and (lock power supply and dry contact control optional) and other functions. Equipped with high-speed thermal printer, convenient to print test data on site.

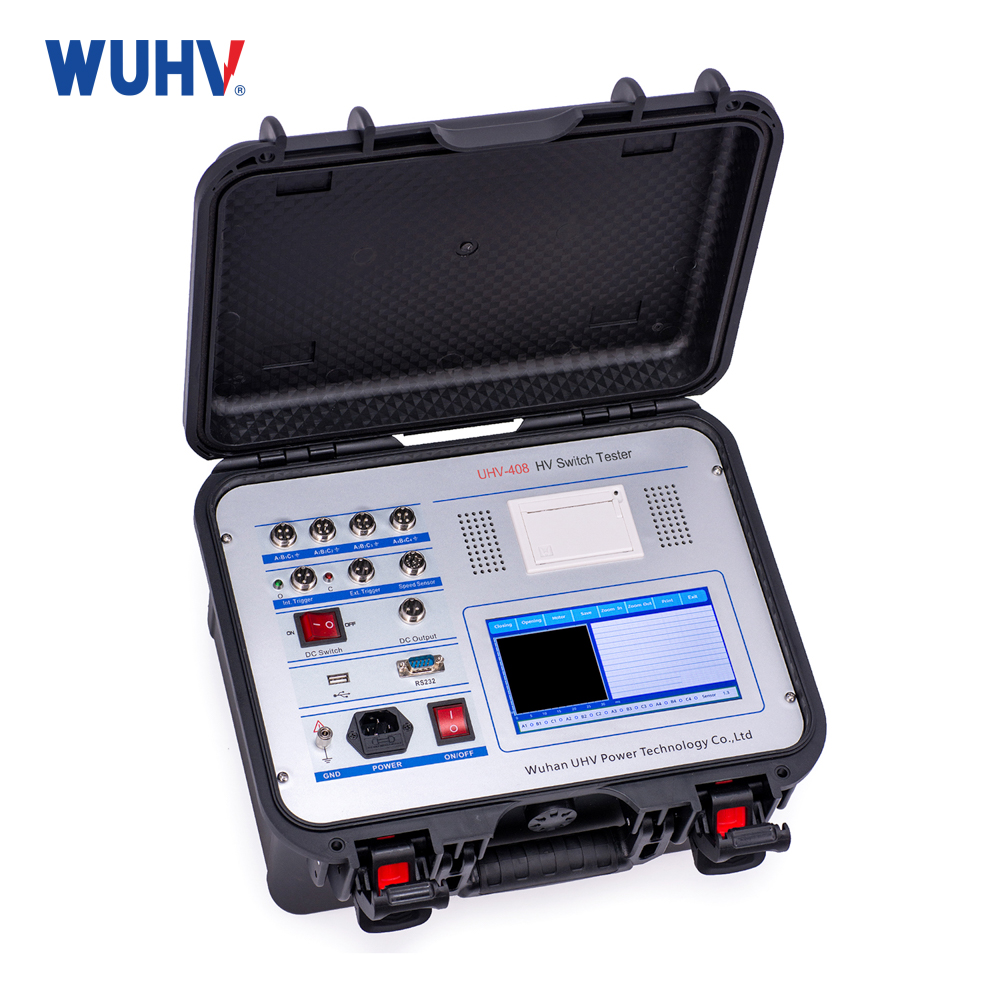

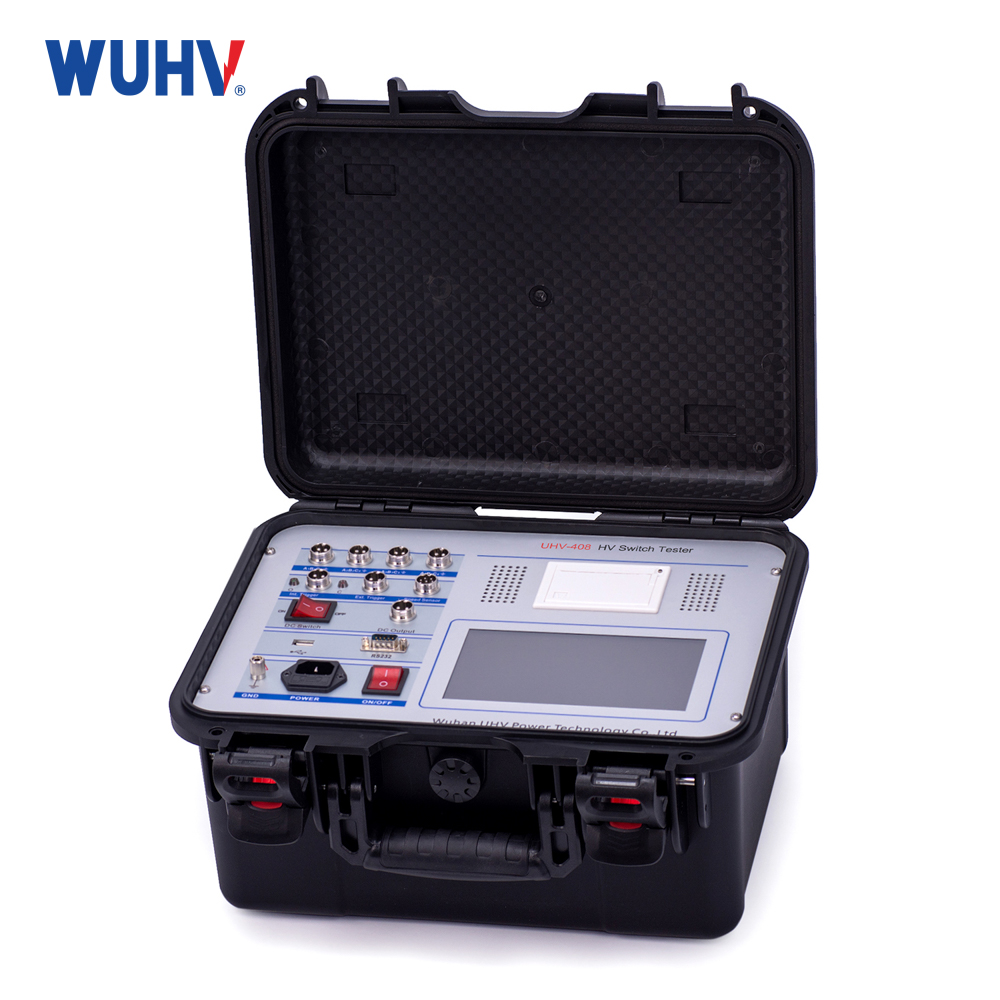

(2) 7-inch color screen, operating under the sun is clearly visible. Menu operation, quick test interface, one-key operation, support Chinese and English input. The 12-channel fracture status is displayed in Chinese. The time, stroke, speed and waveform are displayed on the same screen. Analyze the average velocity of the specified segment and mark it on the stroke curve for easy viewing.
(3) machine integrated operation power supply, no site secondary power, easy to use. Can provide DC20 ~ 270V adjustable power supply, current 20A. Short circuit protection function. In case of short circuit, 1ms will stop the voltage and current output and emit a beep to prompt the operator to check the circuit. Unique double circuit power supply design, such as closing or breaking control circuit in one damage, with the other can also be tested.

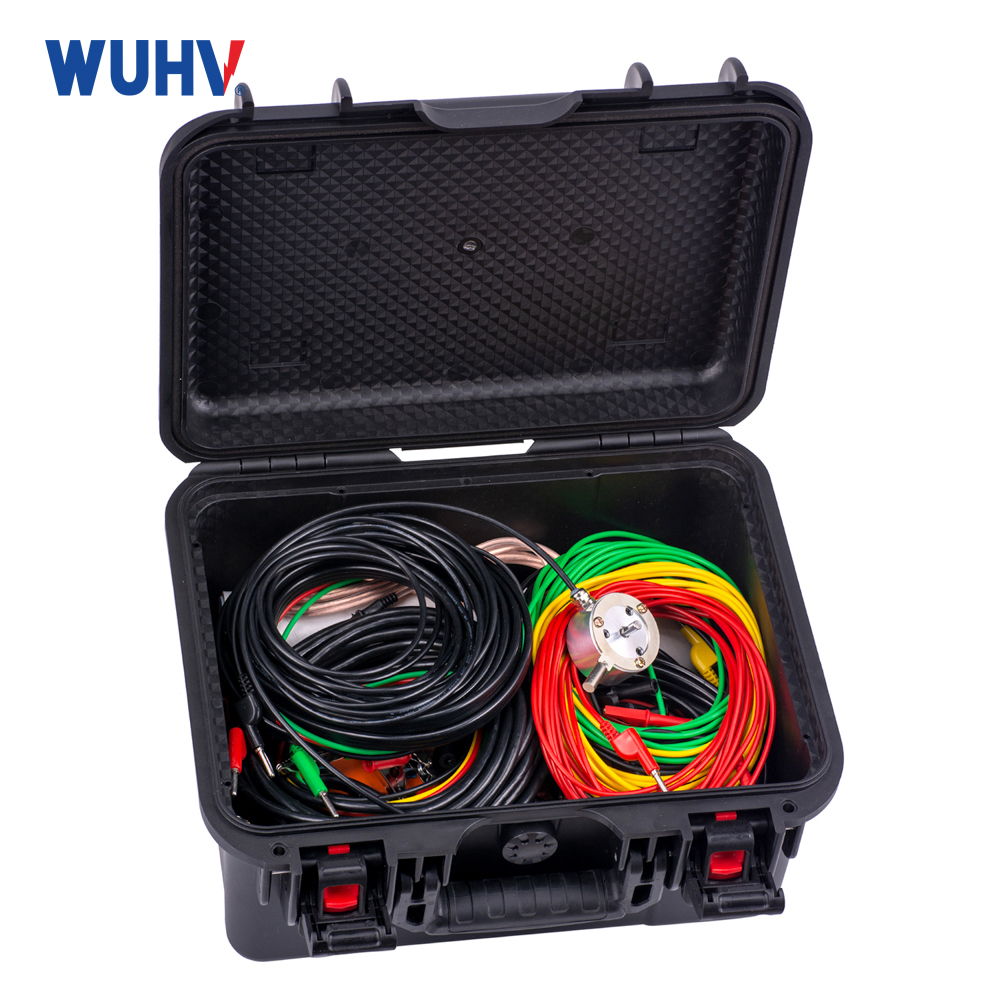

(4) equipped with linear sensor, 360 degrees without dead Angle rotation sensor, with special fixed multifunctional joint, installation is very convenient, simple. The length of the 30-1000mm linear sensor can be set arbitrarily. It only needs to be equipped with the sensor, and the instrument does not need to be returned to the factory to change the program.
(5) the host can store 100 groups of test data, real-time clock in the machine, easy to archive.
(6) Equipped with U disk interface and R232 interface, data saved to U disk, uploaded to the computer for analysis, saving, printing, R232 interface can be connected to the computer online operation (optional function).

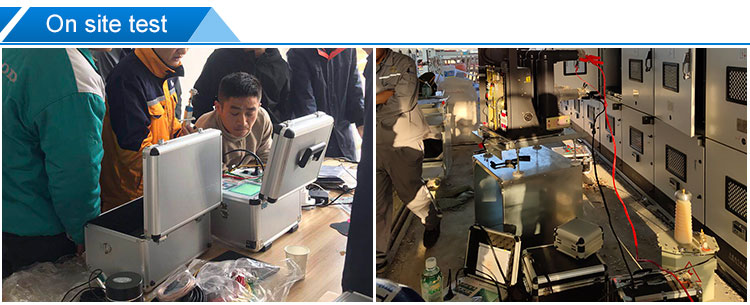

(7) The internal anti-interference circuit can be used reliably in 500KV substation.
