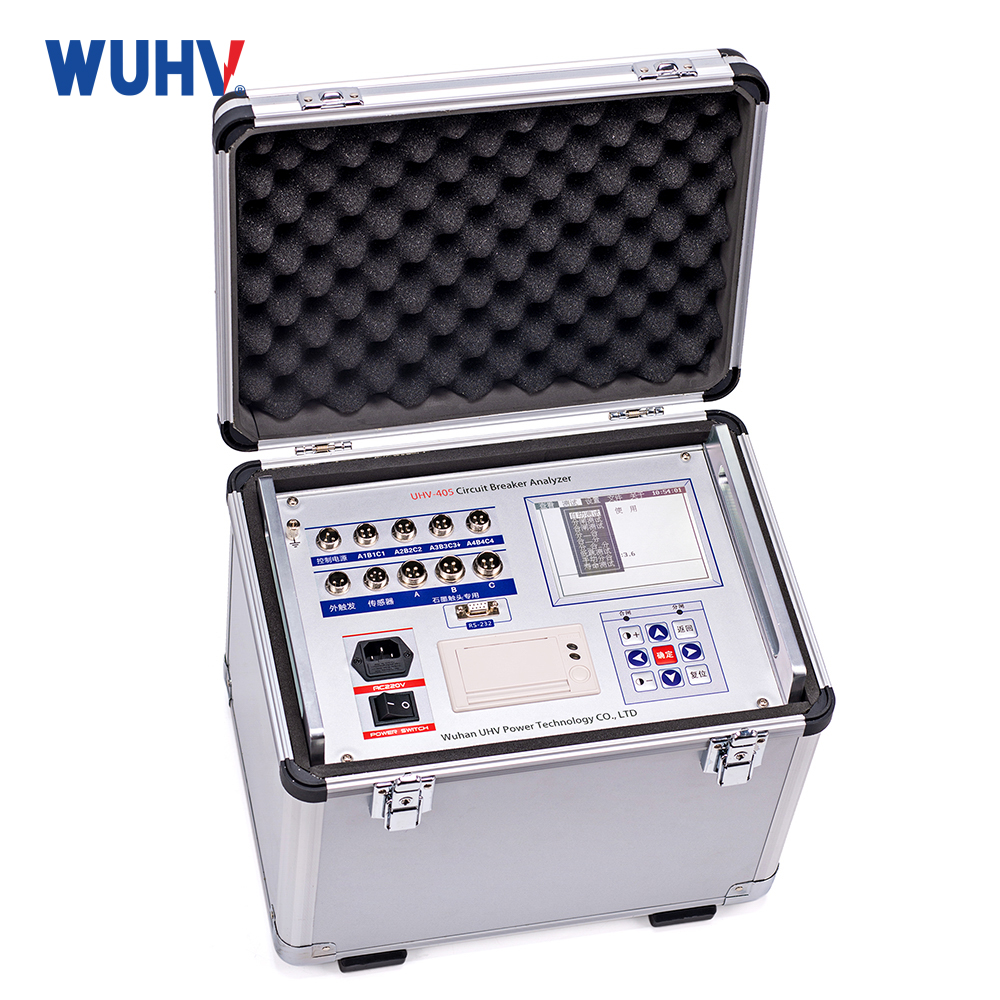

  • UHV-405 Circuit Breaker Characteristic Test Set High Voltage Switch Timing Tester

    UHV-405 Circuit Breaker Characteristic Test Set High Voltage Switch Timing Tester is in addition to meeting the dynamic characteristics of the general high-voltage switch on the market, it also meets the test of Siemens graphite contact switch, which can reliably test the dynamic resistance waveform of the three fractures of the graphite contact switch.

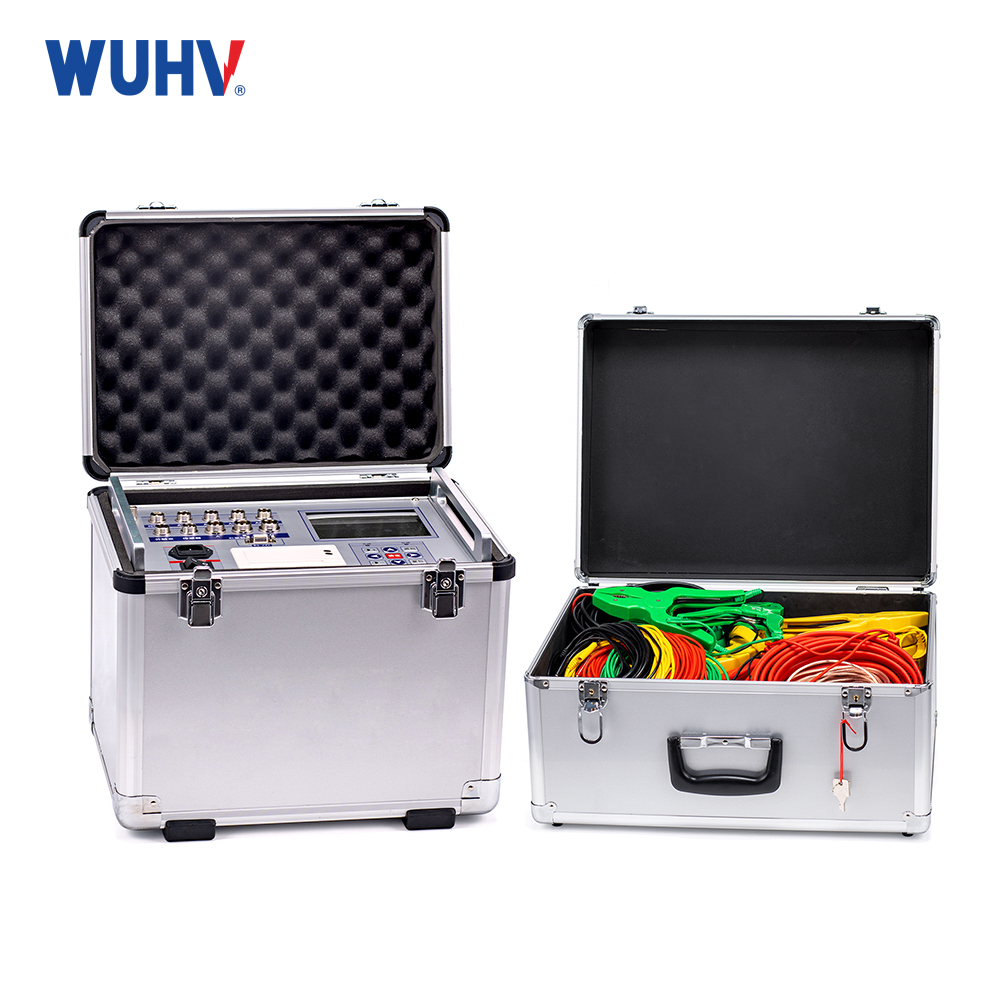

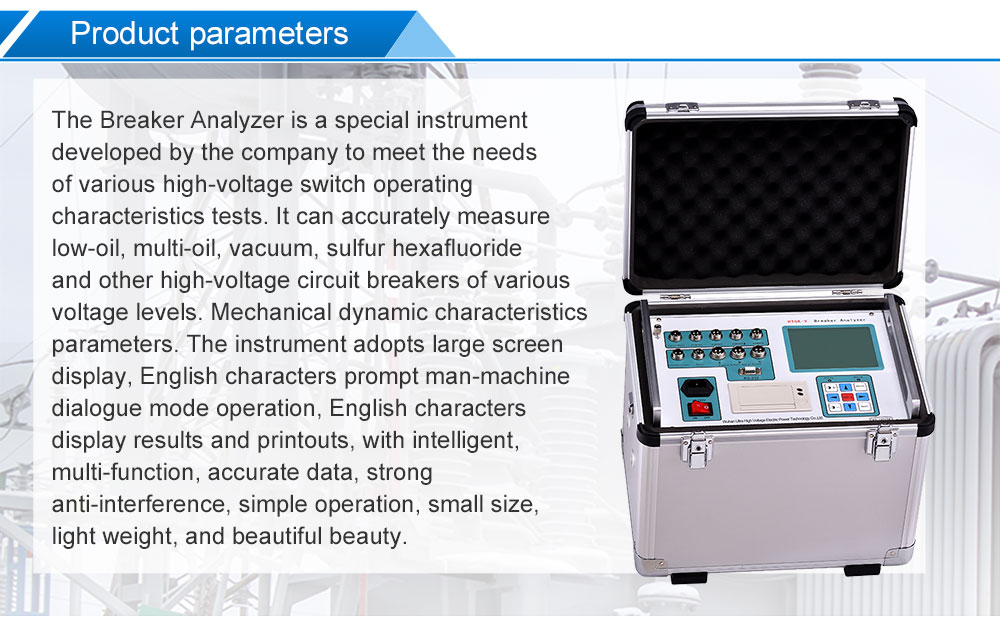

    Product Details of UHV-405 Circuit Breaker Characteristic Test Set High Voltage Switch Timing Tester

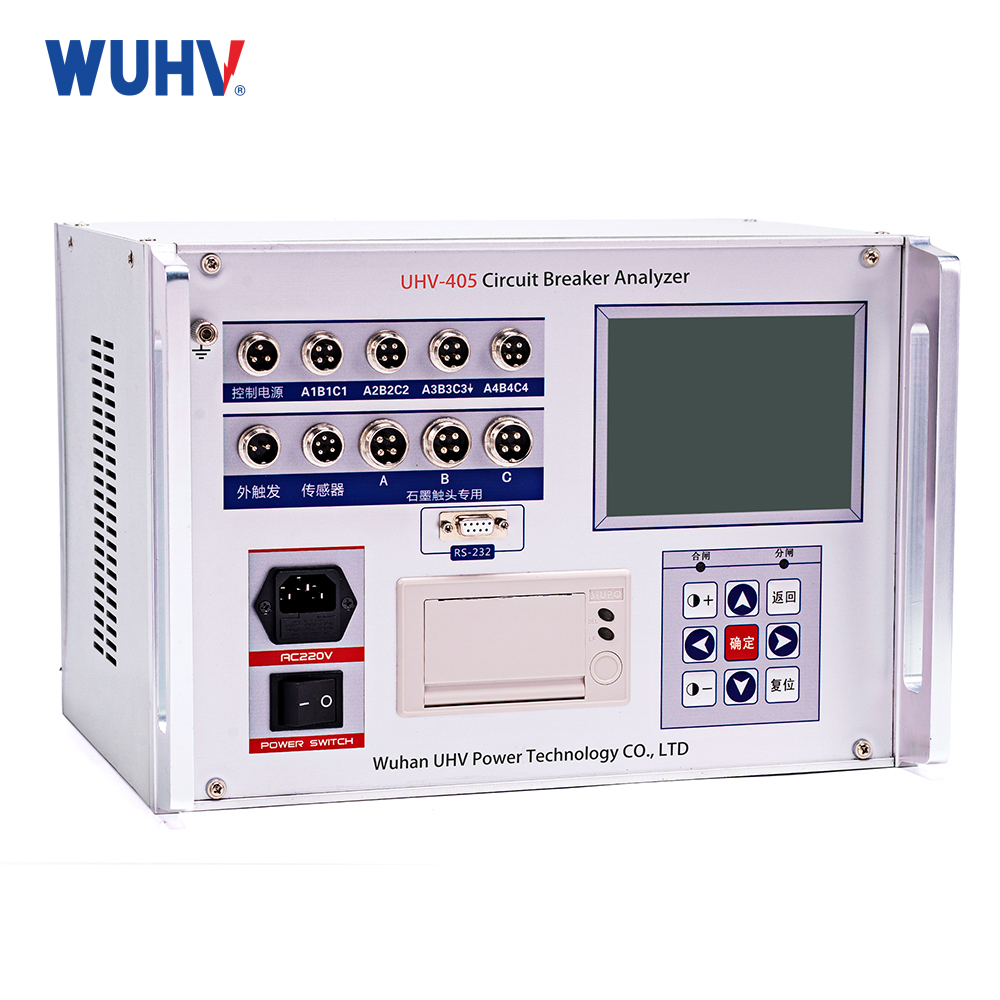

    Switch Tester


    Use environment

    Input power supply

    220V±10% 50Hz±10%

    Atmospheric pressure

    86~106kpa

    temperature

    10~45℃

    humidity

    ≤80%RH

    Safety performance

    Insulation resistance

    2MΩ

    Dielectric strength

    Power supply on the chassis power frequency 1.5kV withstand voltage for 1 minute, no flashover and arcing

    Basic parameters

    time

    Range: 16000.0ms, resolution: 0.1ms

    Error: within 200ms, 0.1ms ± 1 word

    ②More than 200ms, ±2%

    corresponding oil-minimum breaker : range: 600.0mm, resolution: 0.1mm, error: ± 2mm

    Current

    Range: 20.00A, resolution: 0.01A

    Closing resistor

    Range: 0 ~ 2000Ω, resolution: 1Ω, accuracy: 1%

    Fracture type

    12-way metal fracture, 6-way closing resistor fracture

    Output power supply

    DC30 ~ 250V digital adjustable / 20A (instantaneous work)

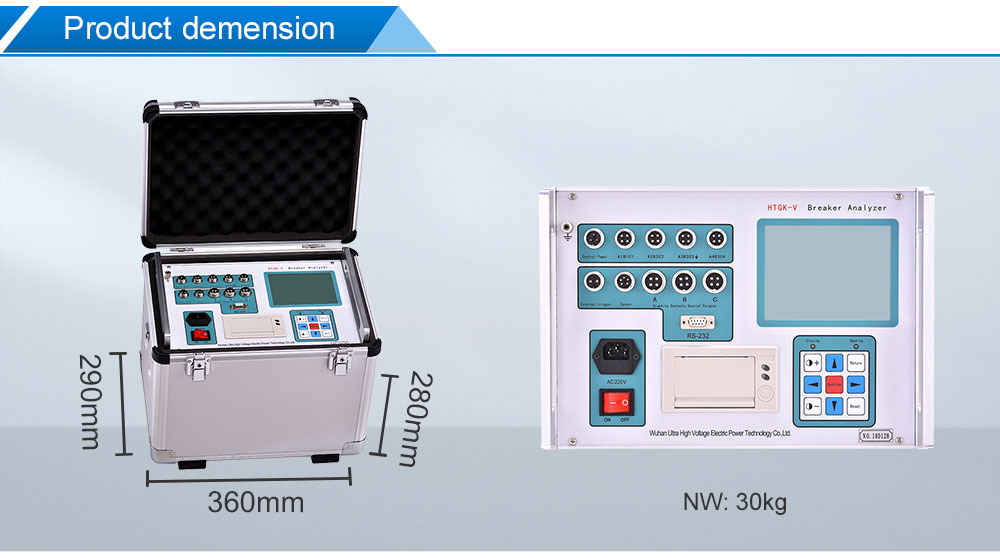

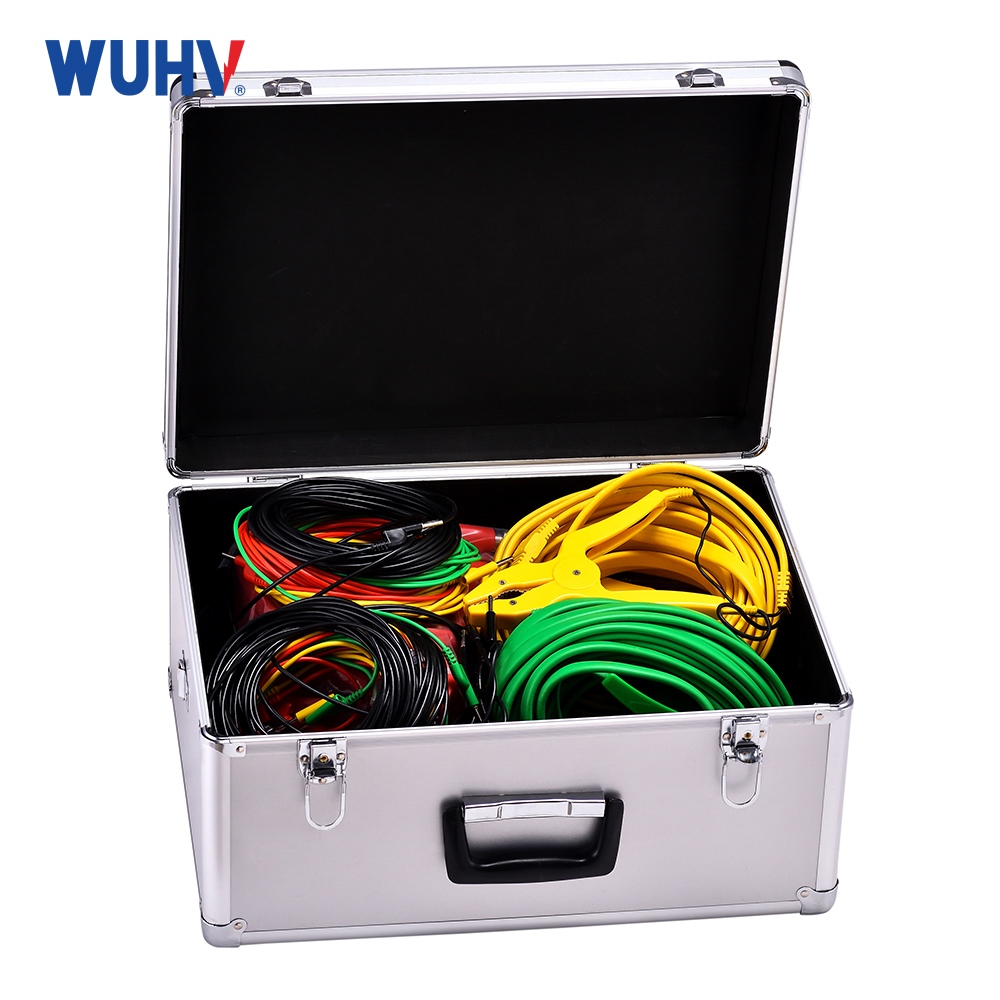

    Dimensions

    Host:360×290×280mm3annex::370×280×220mm3

    weight

    Host:15KG;annex:16KG

    Nickname:Switch TesterHigh voltage switch tester


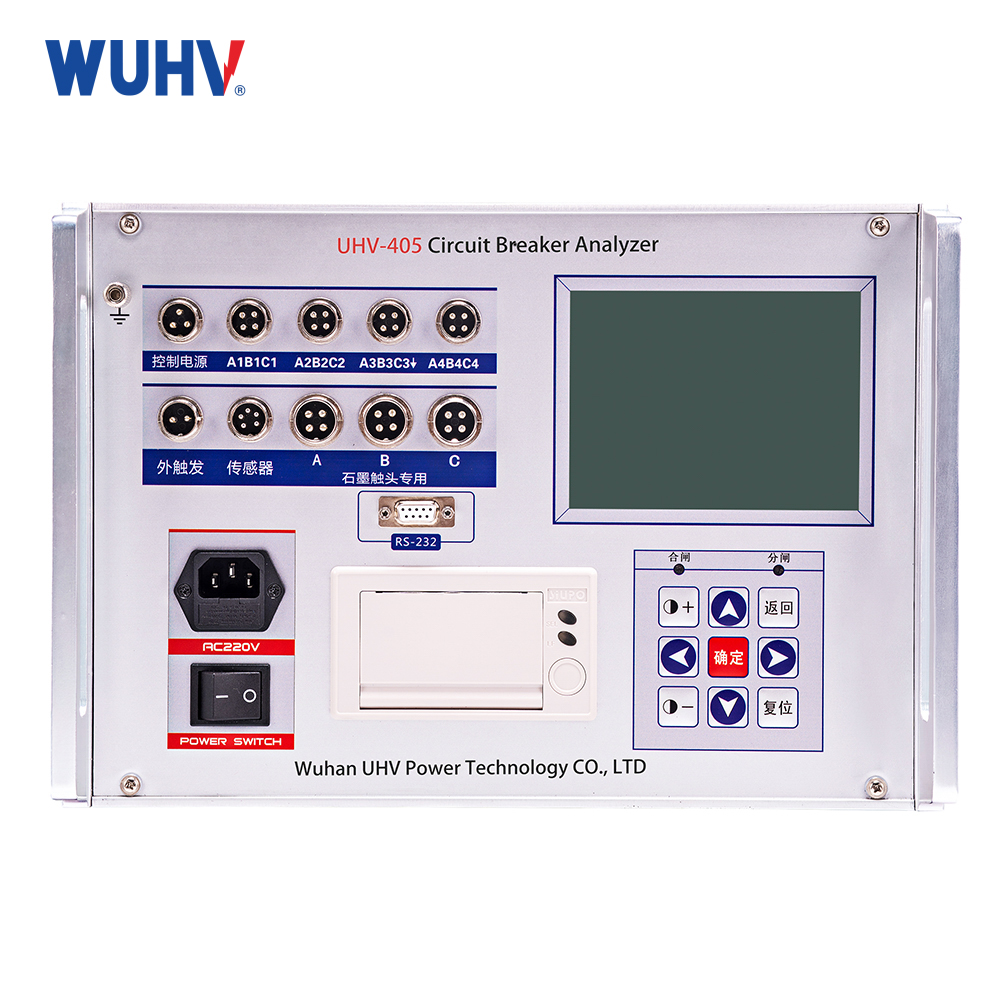

    Features



    1. IPC control.
    2. Dynamic resistance waveform can be reliably tested graphite contact switch 6 fracture.
    3. Time: 12 contacts’ fixed opening time and closing time, in-phase same time, out-phase same time.
    4. Springing: closing springing time, springing numbers, springing waveform for each breaker; rebound magnitude for each breaker.
    5. Speed: instant opening, closing speed, max speed, speed wave.
    6. Range: over-range, overriding range.
    7. Current: opening/closing current of opening/closing coil, current value, waveform diagram.
    8. Reclose: setting reclose interval time, metal short circuit time, no-current interval time.
    9. Action voltage: DC20-250V/10A (rated operating) digital adjustable power circuit breaker, setting opening/ closing coil action voltage, finish the breaker low voltage action test.

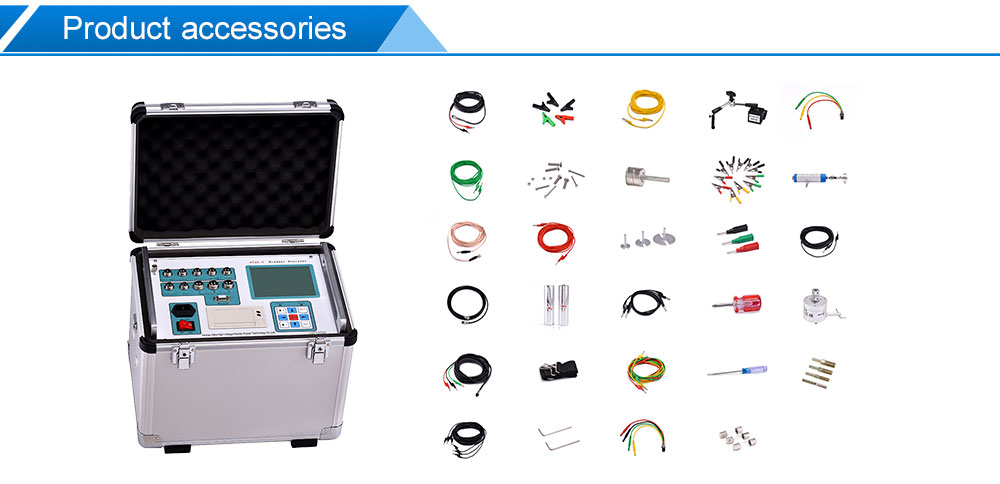

    10. Universal speed sensor extremely easy to install.

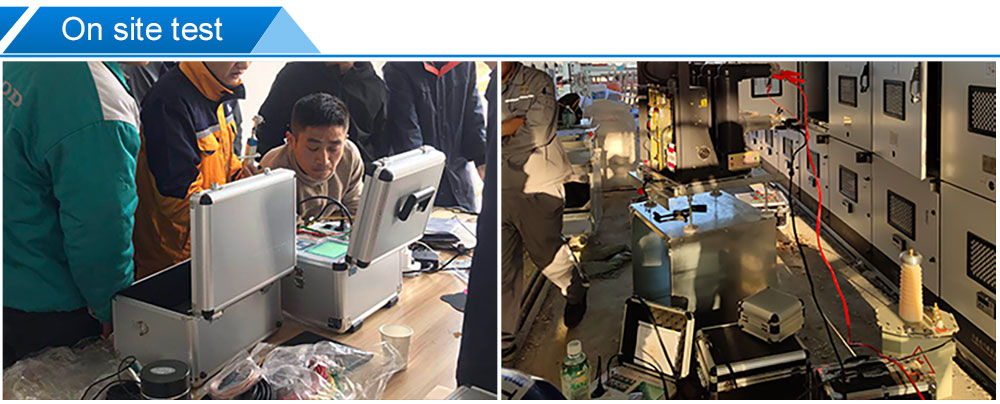

    11. Applicable to all types of domestic and foreign SF6 switch, GIS combination of electrical, vacuum switch, oil switch.
    12. Switching one time, get all the data and diagram.
    13. The host can store more than one million units of test data, real-time clock inside the machine for easy archival storage test date, time.
    14. With U-disk interface, can save data directly to the U disk.
    15. Big screen, wide temperate, backlight LCD, full display all data and diagram, electronic LCD contrast adjustment, power-off memory.
    16. With printer, print all data and diagram.
    17. Formulate the analysis software for instant opening, closing speed according to requirement to analyze, it is suitable for measuring speed of any types switches.
