Technical parameters
Measuring range | 1～1999μΩ |
Resolution | 1μΩ |
Test current | DC 0-100AContinuous adjustable |
Accuracy | 0.5%±1d |
Display | Current: three and a half LCD |
Resistance: three and a half LCD | |
Power supply | AC220V±10% 50Hz |
Working environment | Temperature -10℃ ~ 40℃, humidity: ≤80%RH |

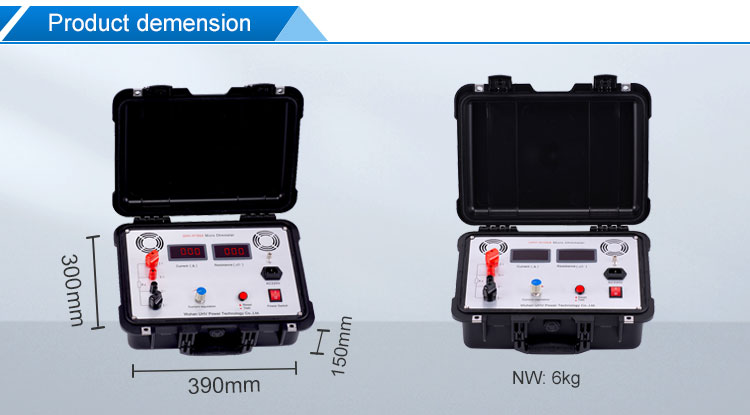

Dimension | 300×270×200 mm3 |
Weight | 5kg (excluding attachments) |
Nickname: Contact Resistance Tester; Loop Resistance Tester
Feature:

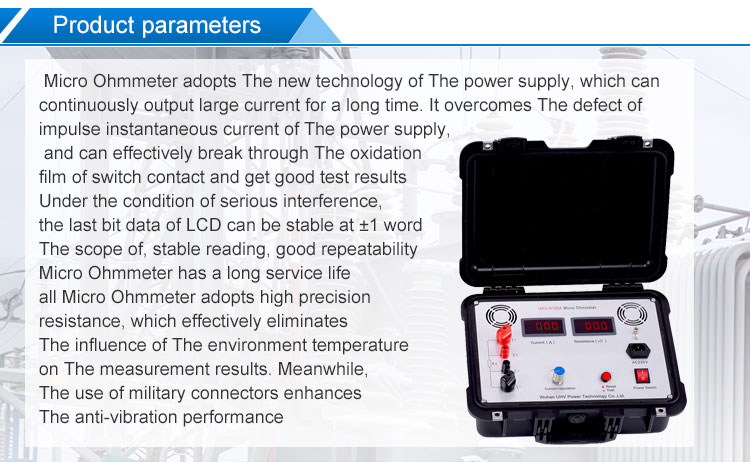

1.Large current: The circuit resistance tester adopts new power supply technology, can output large current continuously for a long time, overcome the drawbacks of impulse power instantaneous current, can effectively breakdown the oxide film of the switch contact, get good test results
2.Strong anti-interference ability: in serious interference conditions, the LCD screen last data can be stable within the range of ±1 word, stable reading, good repeatability
3.Long service life of the circuit resistance tester: all use high-precision resistance, effectively eliminate the impact of environmental temperature on the measurement results, at the same time, the use of military connectors enhanced the anti-vibration performance
4.Easy to carry: small size, light weight
