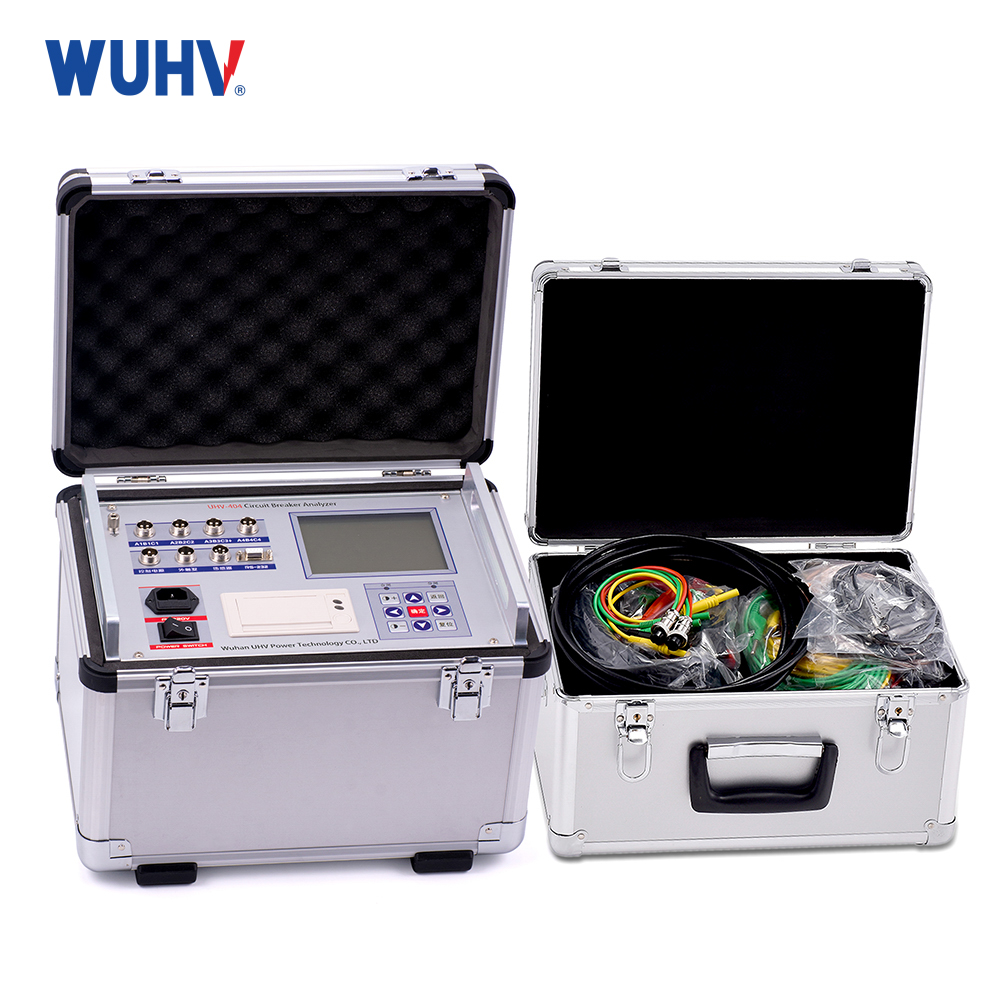

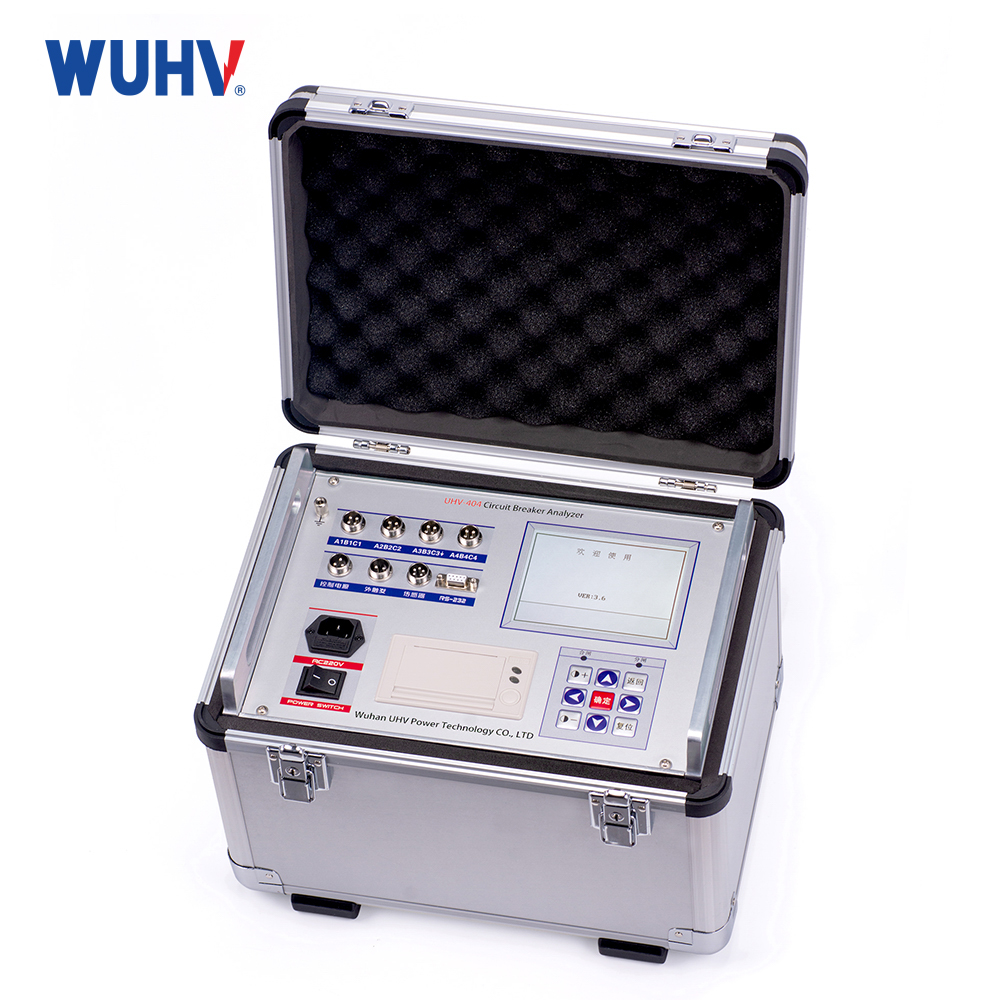

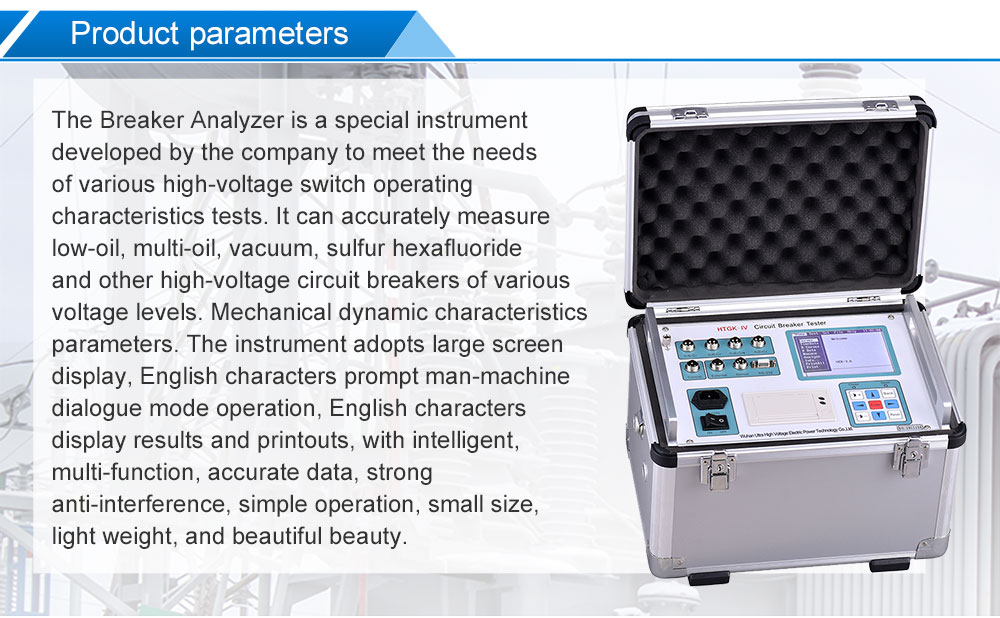

  • UHV-404 CB Analyzer High Voltage Switch Timing Tester

    UHV-404 Circuit Breaker Analyzer is mainly used for measure the Circuit Breaker’s mechanical characteristic. It is applicable to SF6 switch, GIS combined electrical appliance, vacuum switch and oil switch of all models of metal contact produced at home and abroad.

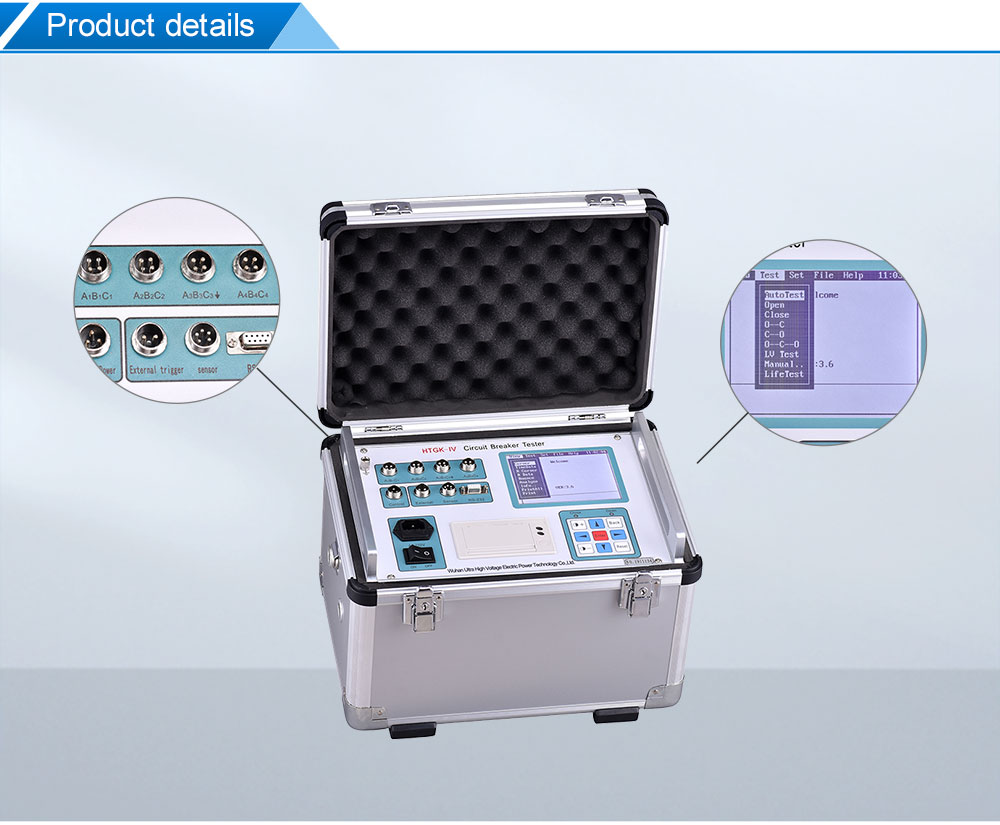

    Product Details of UHV-404 CB Analyzer High Voltage Switch Timing Tester


    Technical parameters

    Use environment

    Input power supply

    220V±10% 50Hz±10%

    Atmospheric pressure

    86106kpa

    Temperature

    1045

    Humidity

    ≤ Q80%RH

    Safety performance

    Insulation resistance

    2MΩ

    Dielectric strength

    Power supply on the chassis power frequency 1.5kV withstand voltage for 1 minute, no flashover and arcing

    Basic parameters

    time

    Range16000.0msResolution0.1ms

    errorwithin 200ms0.1ms±1 word

    200ms or above±2%

    The same period±0.1ms

    speed

    Range20.00m/sResolution0.01m/s

    errorwithin 02m/s±0.1m/s±1 digital

    2m/s or above±0.2m/s

    stroke

    Vacuum circuit breakerRange50.0mmResolution0.1mmerror±0.5mm

    SF6 circuit breakerRange300.0mmResolution0.1mmerror±2mm

    Less oil circuit breakerRange600.0mmResolution0.1mmerror±2mm

    Current

    Range20.00A Resolution0.01A

    Closing resistor

    Range02000ΩResolutionPrecision1%

    Fracture type

    12-way metal fracture, 6-way closing resistor fracture

    Output power supply

    DC30 ~ 250V digital adjustable / 20A (instantaneous work)

    Dimensions

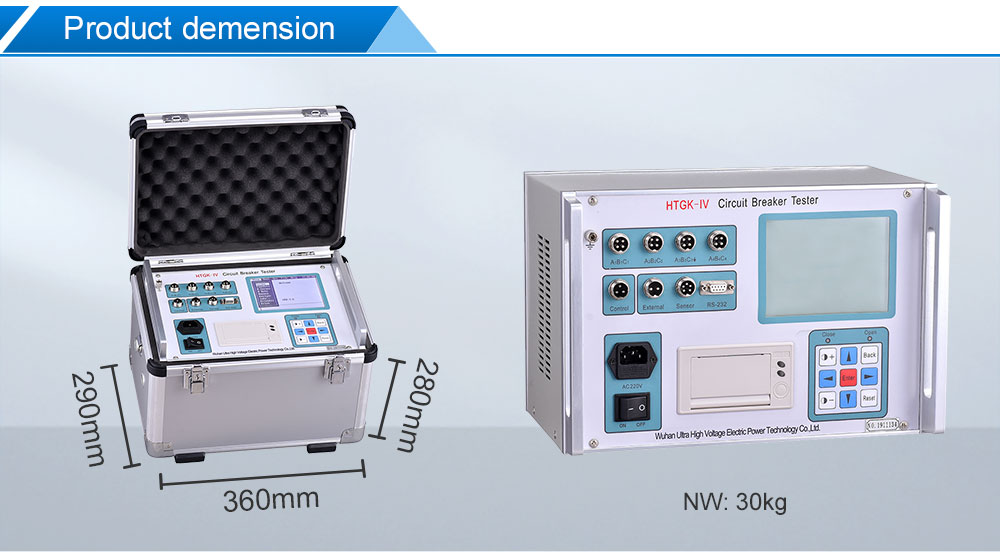

    Host360×290×280mm3annex370×280×220mm3

    Weight

    Host6kgannex9kg



    Nickname: CB Analyzer; switch timing tester

    Feature:

    1.SF6 switch, GIS combination appliance, vacuum switch, oil switch for all model metal contacts produced at home and abroad.

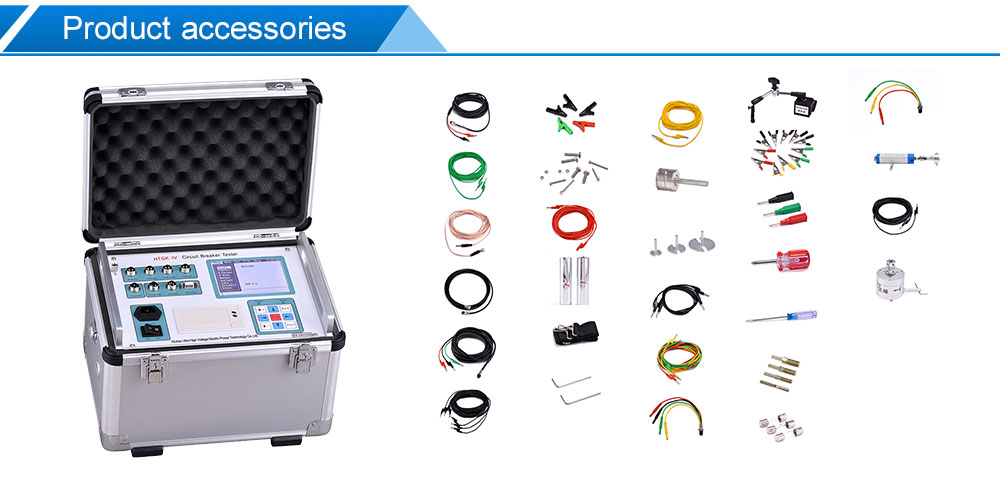

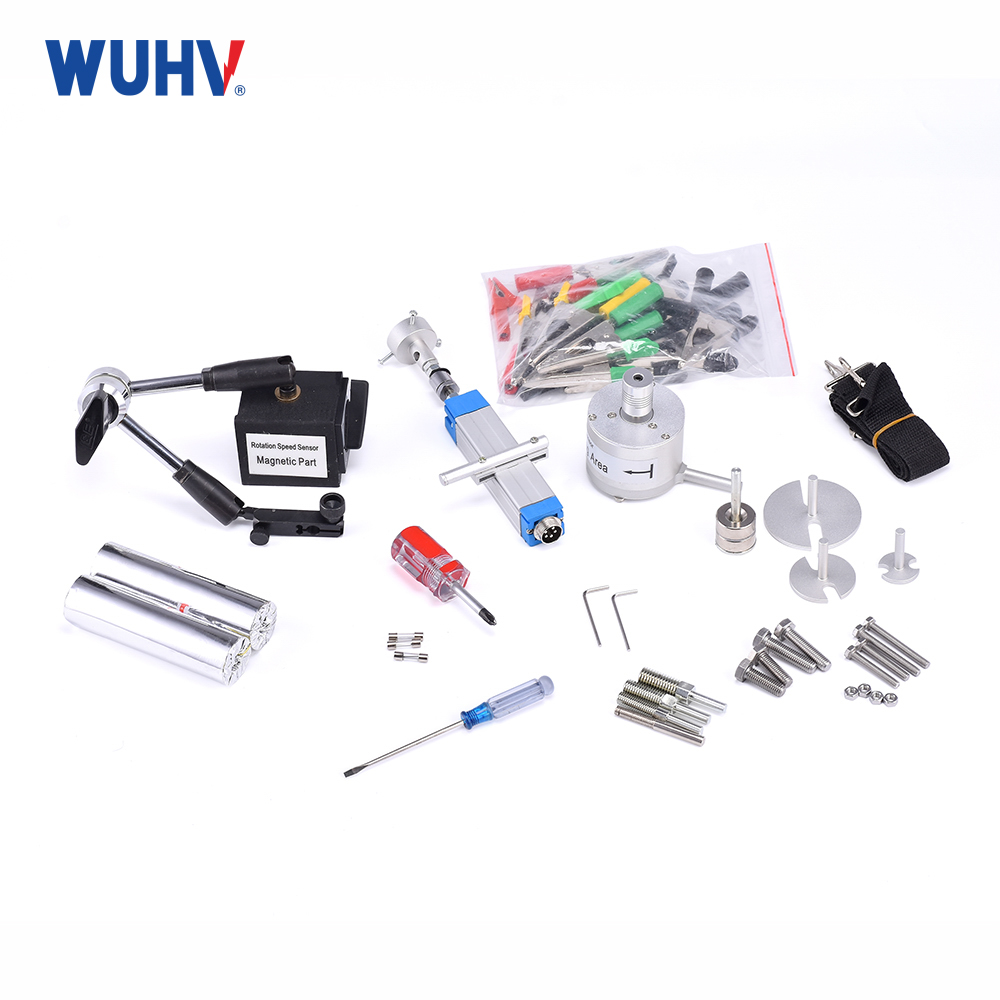

    2.Linear stroke sensor, rotary sensor, installation is very convenient, simple.

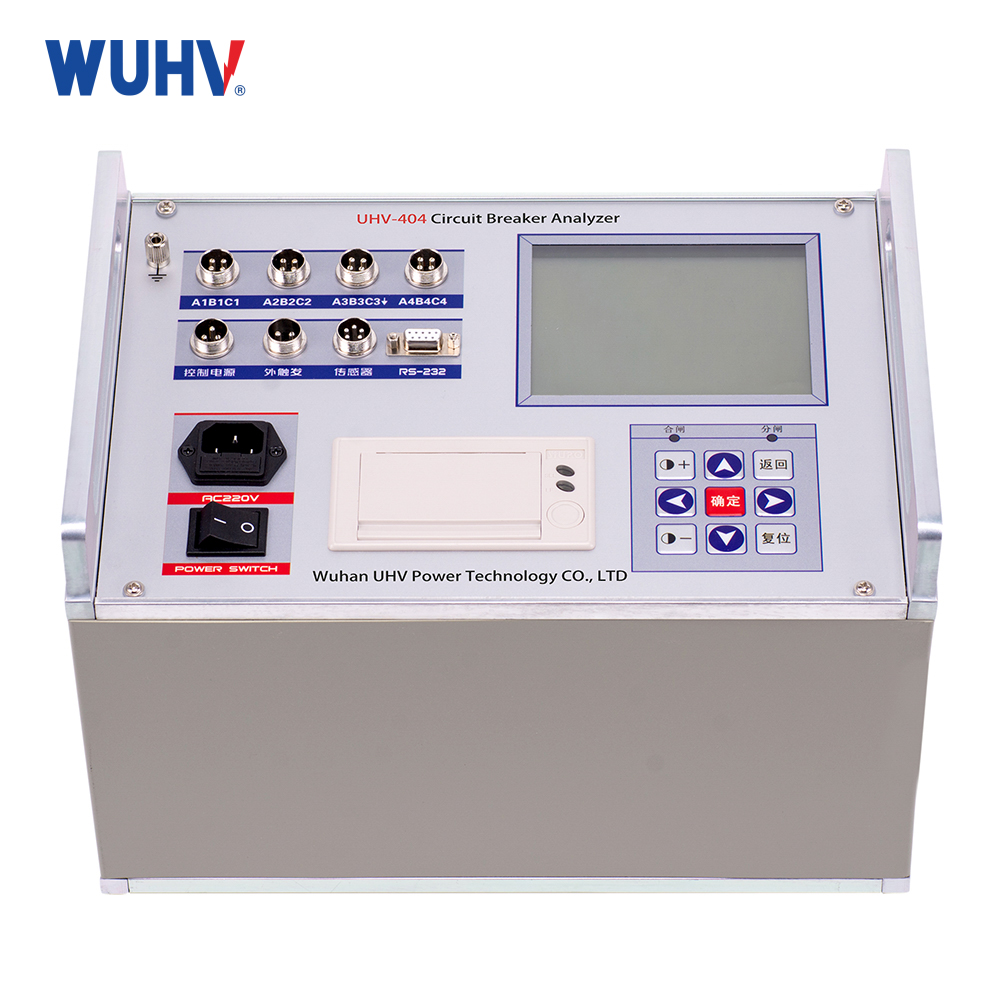

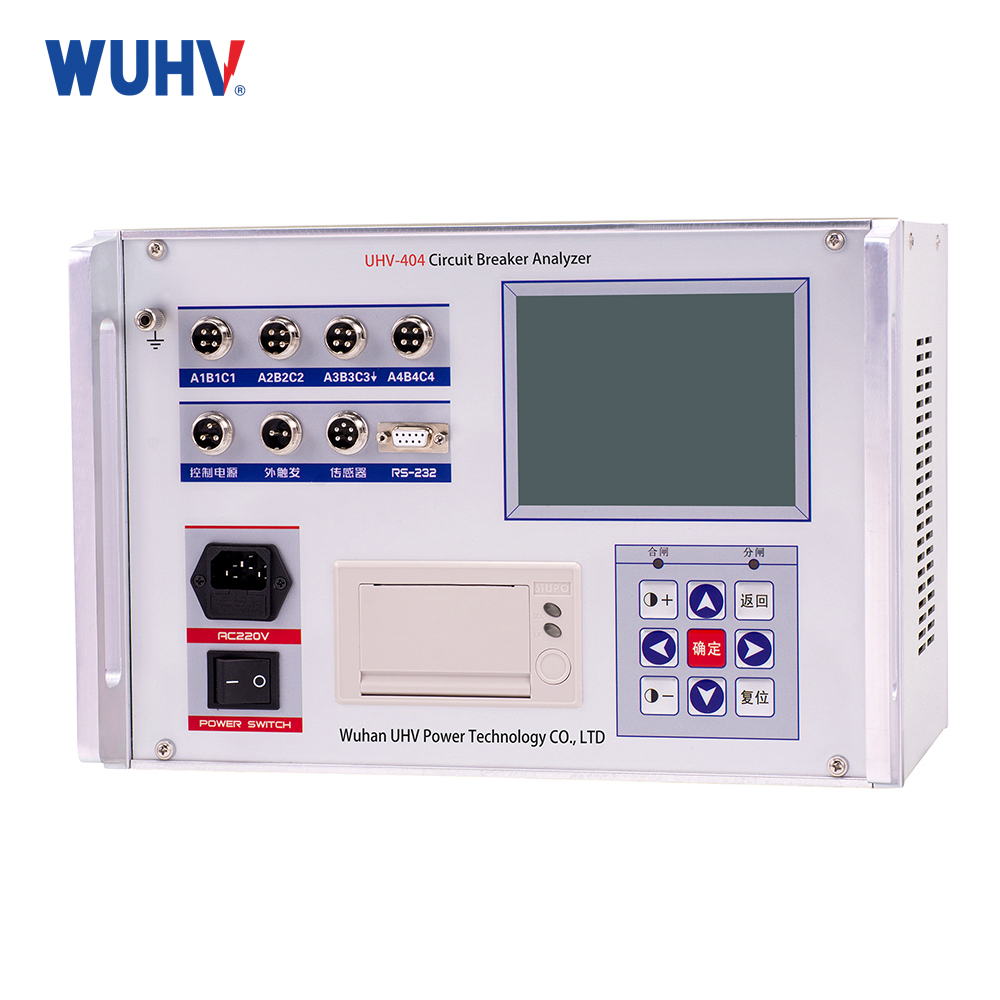

    3.The host large screen, straight through, background LCD, contrast electronic adjustment. All Chinese menu prompt operation, switch action once, display all data and waveform map.

    4.The host can store multiple sets of on-site points, closing test results, on-board real-time clock, easy to archive and save test date, time.

    5.Bbuilt-in fast micro printer, print all data and maps.

    6.Breaker Analyzer has powerful data analysis function, which can effectively analyze various index parameters of circuit breaker mechanical characteristics.
